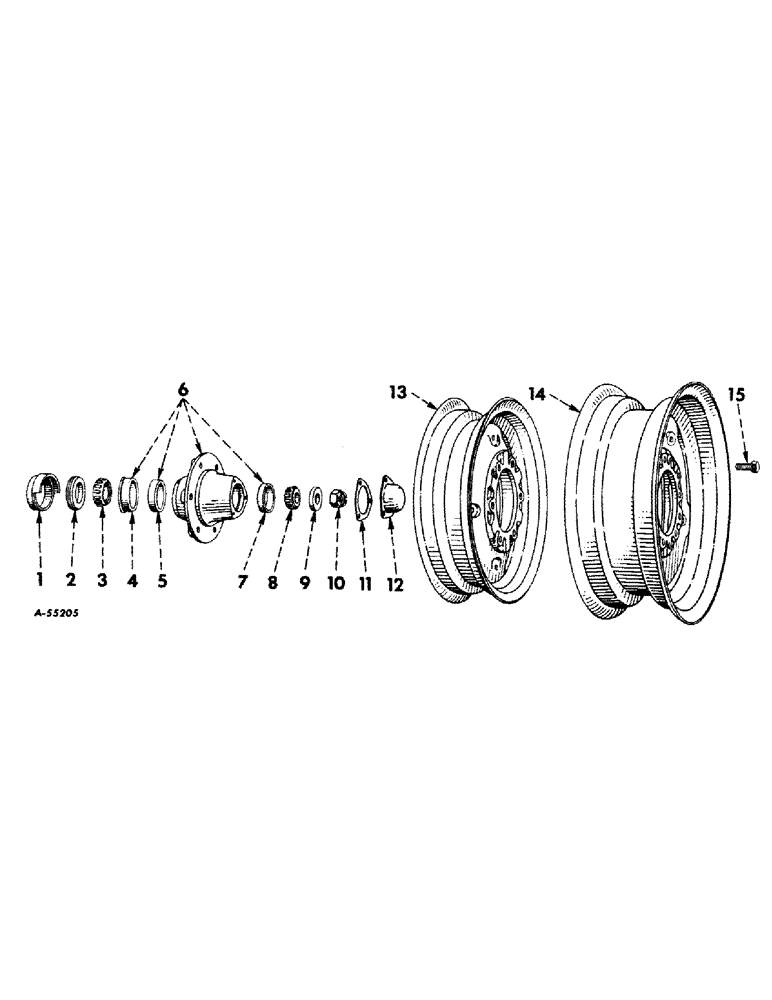

Запчасти Case IH 1256 (L-02) - WHEELS AND WHEEL WEIGHTS, FRONT WHEELS Wheels & Wheel Weights

1

48701D

SHIELD

front wheel dust

2шт.

2

370254R91

OIL SEAL,57.02mm ID x 82.55mm OD x 6.86mm Thk

front wheel oil, optional w/372438R91 and 372474R91

2шт.

2

372438R91

SEAL ASSY.

SEAL, front wheel oil, optional w/370254R91 and 372474R91

2шт.

2

372474R91

SEAL ASSY.

SEAL, front wheel oil, optional w/370254R91 and 372438R91

1шт.

3

G15215

ROLLER BEARING

BEARING ASSY, front wheel inner cone

2шт.

4

48703D

RETAINER

front wheel oil seal

2шт.

5

619387R1

BEARING CUP

BEARING, front wheel inner cup

2шт.

6

391823R11

HUB

ASSY, front wheel, Farmall tractors not equipped w/adjustable wide tread front axle

2шт.

6

391823R11GV

HUB

Value, Hub Assy.

2шт.

80722

LUBE NIPPLE,3/16" x .55" lg, Drive

FITTING, 3/16 str drive type lub

1шт.

6

391824R11

HUB ASSY.

HUB ASSY, front wheel, International tractors, Farmall tractors w/adj wide tread axle

2шт.

19700R91

FITTING

3/16 45 deg angle drive type lub

2шт.

7

618024R1

BEARING CUP,65.113mm OD x 13.97mm W

Front wheel outer

2шт.

8

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

BEARING ASSY, front wheel outer cone

2шт.

9

370255R2

WASHER,22.63mm ID x 47.75mm OD x 4.18mm Thk

front wheel outer bearing retainer

2шт.

10

427645

SLOTTED NUT,7/8"-14, G5

NUT, front wheel

2шт.

108643

COTTER PIN,5/32" x 1 3/8"

Pin, Split (Cotter), 5/32" x 1 3/8"

2шт.

11

369860R1

GASKET,0.79mm Thk

front wheel hub cap

2шт.

12

369859R1

CAP

front wheel hub

2шт.

21533

SCREW, 5/16-18 x 5/8 C-Z hex-hd cap

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

13

370777R92

RIM

WHEEL ASSY, disc type 4.25KA-16DC rim for 6.50-16 tire, Farmall tractors

2шт.

13

364343R92

WHEEL

ASSY, disc type w/5.50F x 16DC rim for 7.50-16 tire, all Farmall tractors except, Farmall tractors

2шт.

14

389988R91

WHEEL

ASSY, front, disc type, WH8L-16 rim for 9.00-16 tire, International tractors

1шт.

14

383906R91

WHEEL

ASSY, front, disc type WH10L-16 for 11.00-16 tire

1шт.

14

389988R91

WHEEL

ASSY, front, disc type, WH8L-16 rim for 10.00-16 tire, International tractors & Farmall tractors with adjustable wide tread front axle

2шт.

14

400519R1

WHEEL ASSY, front, disk type WH7B-20 rim for 9.50-20 tire

2шт.

15

51485D

BOLT,9/16" - 18 x 1 7/32"

front wheel mounting, 12 used on Farmall tractors, 16 used on International tractors, Farmall tractors except those equipped w/adjustable wide tread front axle

12шт.

15

393363R1

BOLT,Hex, 9/16" - 18 x 1.22"

front wheel mounting, International tractors & Farmall tractors with adjustable wide tread front axle

16шт.

371418R91

PACKAGE

front wheel bearing overhaul, consists of (1) cone 618023R91, (1) cone 619386R91, (1) cup 618024R1, (1) cup 619387R1, (1) gasket 369860R1, (1) oil seal 370254R91, (1) retainer 48703D

2шт.
