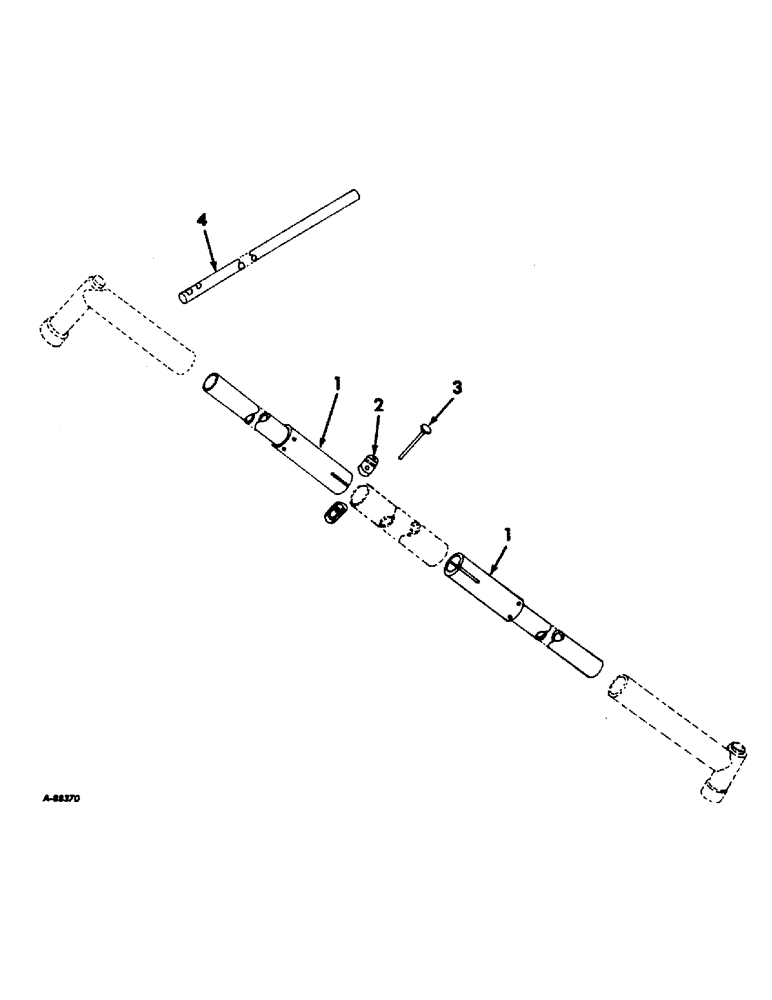

Запчасти Case IH 1256 (J-13) - STEERING MECHANISM, ADJUSTABLE WIDE TREAD FRONT AXLE EXTENSION, FARMALL TRACTOR Steering Mechanism

395284R91

PARTS ACCESSORY, adjustable wide front axle for tractors equipped w/56 in. to 80 in. adjustable wide front axle

1шт.

1

395281R1

EXTENSION ASSY, front axle inner

1шт.

2

350556R1

CLAMP

front axle

4шт.

20673R1

BOLT,Hex, 3/4" - 16 x 4 1/4", Gr 8

3/4-16 x 4-1/4 hex-hd

4шт.

218197

NUT,3/4"-16, G5

3/4-16 hex.

4шт.

366112R1

WASHER

25/32 x 1-1/4 x 11 ga C-Z

4шт.

3

350557R1

PIN

front axle clamp

2шт.

95-11034

WASHER,1/4"

PIN, 1/4 x 1-1/2 cot.

2шт.

4

395285R1

TUBE,0.948" ID, 1.19" OD

tie rod extension

2шт.
