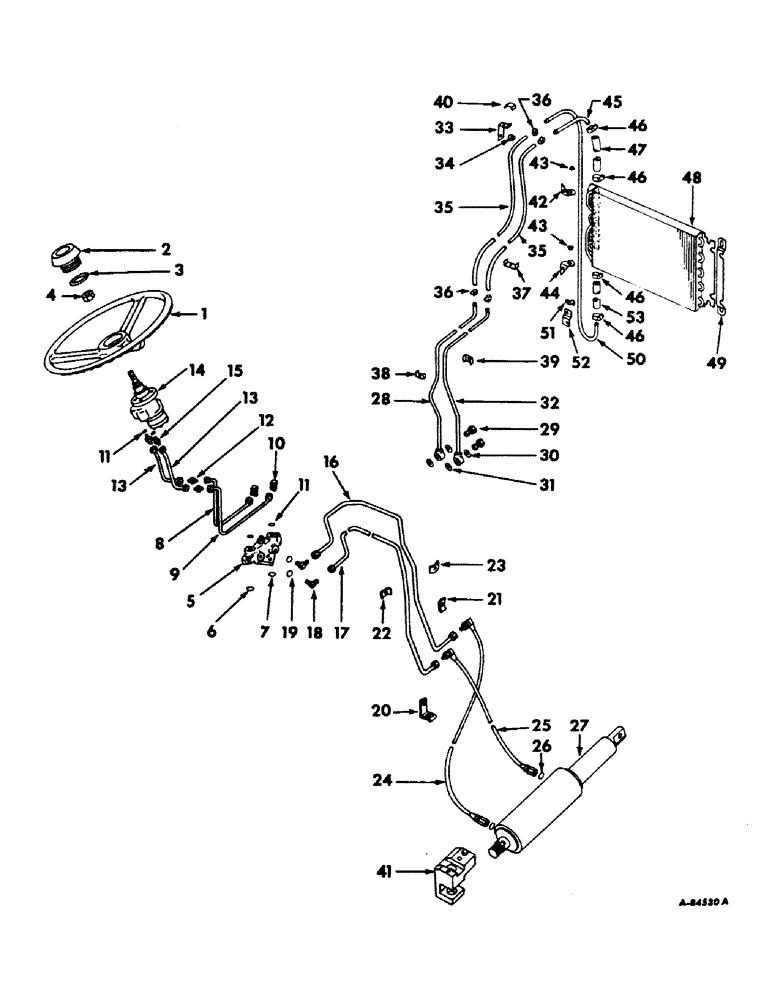

Запчасти Case IH 1256 (J-06) - STEERING MECHANISM, POWER STEERING, INTERNATIONAL TRACTORS Steering Mechanism

1

385156R1

WHEEL (STEERING)

WHEEL, 16 in. dia steering

1шт.

1

385156R1GV

STEERING WHEEL

Value, Steering Wheel

1шт.

2

378395R1

CAP

steering wheel

1шт.

3

295204R1

O-RING,0.103" Thk x 2.8" ID, -149, Cl 5, 75 Duro

2-13/16 x 3 x 3/32, steering wheel cap

1шт.

4

F19646

LOCK NUT,13/16"-20, Thin

NUT, steering wheel

1шт.

5

396726R91

LOCK VALVE

VALVE ASSY, power steering pilot, for components see list of parts under details of power steering pilot valve

1шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

6

369908R1

O-RING,0.103" Thk x 0.799" ID, -117, Cl 5, 75 Duro

13/16 x 1 x 3/32, pressure port

1шт.

7

362796R1

O-RING,0.924" ID x 0.103" Width

15/16 x 1-1/8 x 3/32, return port

1шт.

8

382588R11

PIPE

TUBE ASSY, valve to hand pump left port lower section

1шт.

9

382589R11

TUBE

ASSY, valve to hand pump right port, lower section

1шт.

10

9410977

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

3/4-16 37 deg hyd flared tube, valve to hand pump tube

2шт.

11

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

.644 x .818 x.087

4шт.

12

9403216

HYD CONNECTOR,3/4"-16, 37 Degree

UNION, 3/4-16 37 deg cd or zn pltd, valve to hand pump tube

2шт.

13

382578R11

TUBE

ASSY, valve to hand pump, upper section

2шт.

14

378578R93

HYDRAULIC STEERING

PUMP ASSY, power steering hand, for components see list of parts under details of hydrastatic power steering hand pump

1шт.

179820

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 5

4шт.

115548

LOCK WASHER,Int Tooth, 5/16"

WASHER, LOCK, Int Tooth, 5/16"

4шт.

15

9410203

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR, 3/4-16 37 deg hyd flared, upper tube to hand pump

2шт.

16

384567R11

TUBE ASSY, valve to front cylinder port

1шт.

17

384568R11

TUBE ASSY, valve to rear cylinder port

1шт.

18

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

9/16-18 37 deg hyd flared tube adj str thd 90 deg

2шт.

19

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

2шт.

20

384585R11

SUPPORT ASSY, pressure tube

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

21

381394R1

CLAMP

pressure tube

1шт.

NLS

NO LONGER SERVICED

SCREW, 1/4-20 x 7/8 hex-hd cap

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

22

384891R11

CLAMP

STRIP ASSY, hyd tube clamp

1шт.

179796

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5

SCREW, 1/4-20 x 7/8 hex-hd cap

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

23

384891R1

CLAMP

STRIP, hyd tubes clamp

1шт.

24

384481R91

HOSE ASSY.

HOSE ASSY, hydraulic cylinder, left turn

1шт.

25

384482R91

HOSE ASSY.

HOSE ASSY, hydraulic cylinder, right turn

1шт.

26

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, hydraulic cylinder hose

2шт.

27

395068R91

CYLINDER BLOCK

CYLINDER ASSY, power steering, for components see list of parts under details of power steering cylinder

1шт.

28

399921R1

TUBE

PIPE ASSY, oil cooler inlet rear

1шт.

29

384577R1

NIPPLE, LUBE

PLUG, inlet union

2шт.

30

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

41/64 x 13/16 x 3/32, inlet union

2шт.

31

384578R1

O-RING,0.07" Thk x 0.801" ID, -19, Cl 6, 90 Duro

13/16 x 15/16 x 1/16, inlet union plug

2шт.

32

399919R1

TUBE

PIPE ASSY, oil cooler outlet rear

1шт.

33

384581R1

BRACKET, oil cooler pipes

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

34

351549R1

WASHER

SPACER, oil cooler tube support

1шт.

35

391259R1

HYDRAULIC HOSE,12.70 mm ID, SAE 100R6, SAE J517

HOSE, oil cooler

2шт.

36

274085R91

HOSE CLAMP,#10, 0.56/1.06 Type F Worm

CLAMP, oil cooler hose, optional w/261498R91

4шт.

36

261498R91

COLLAR CLAMP,nasp

CLAMP, oil cooler inlet pipe hose, optional w/274085R91

4шт.

37

384586R1

GUIDE

oil cooler hose

1шт.

326-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 8

SCREW, 5/16-18 x 7/16 hex-hd cap

1шт.

38

384855R11

CLAMP

ASSY, oil cooler rear pipes

1шт.

39

384855R1

CLAMP

oil cooler rear pipes

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

SCREW, 1/4-20 x 3/4 hex-hd cap

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

40

381448R1

CLAMP

oil cooler pipes

1шт.

109084

NUT,1/4"-20, G5

1шт.

179797

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

41

380027R21

CLEVIS COUPLING

CLEVIS ASSY, cyl mounting

1шт.

215722

SPARE PART

1/2-13 x 5-3/4 hex-hd cap

2шт.

PO22079

PIN

3/4 x 3-3/4 clevis

1шт.

108639

BRACKET

1/4 x 1-1/8 cotter

1шт.

42

387324R2

BRACKET, oil cooler mounting upper

1шт.

324235R1

12 PT SCREW,Flg, 3/8"-16 x 3/4"

SCREW, twelve-pt

1шт.

43

387327R1

BUSHING

oil cooler pivot

2шт.

44

387325R2

BRACKET, oil cooler mounting upper

1шт.

324235R1

12 PT SCREW,Flg, 3/8"-16 x 3/4"

SCREW, twelve-pt

1шт.

45

387328R1

PIPE, oil cooler inlet front

1шт.

46

274085R91

HOSE CLAMP,#10, 0.56/1.06 Type F Worm

CLAMP, oil cooler inlet pipe hose, optional w/261498R91

4шт.

46

261498R91

COLLAR CLAMP,nasp

CLAMP, oil cooler inlet pipe hose, optional w/274085R91

1шт.

47

387330R1

HOSE, oil cooler inlet pipe long

1шт.

48

387322R92

COOLER ASSY.

COOLER ASSY, oil

1шт.

49

387326R1

SUPPORT, oil cooler

1шт.

14994R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2

2шт.

129-419

WING NUT,5/16"-18

NUT, 5/16-18 wing

2шт.

324235R1

12 PT SCREW,Flg, 3/8"-16 x 3/4"

SCREW, 3/8-16 x 3/4 twelve-pt cap

2шт.

Q397

WASHER

11/32 x 3/4 x .06

1шт.

50

387337R1

PIPE, oil cooler outlet front

1шт.

51

341670R1

CLAMP, oil cooler outlet pipe

1шт.

109084

NUT,1/4"-20, G5

1шт.

179793

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

1шт.

52

392868R1

SUPPORT, oil cooler outlet pipe clamp

1шт.

392869R1

BOLT, 3/8-16 x 3/4 hex-hd cap

1шт.

95-11041

WASHER,3/8"

(13/32 x 13/16 x .065) 3/8"

1шт.

53

387329R1

HOSE, oil cooler pipe short

1шт.
