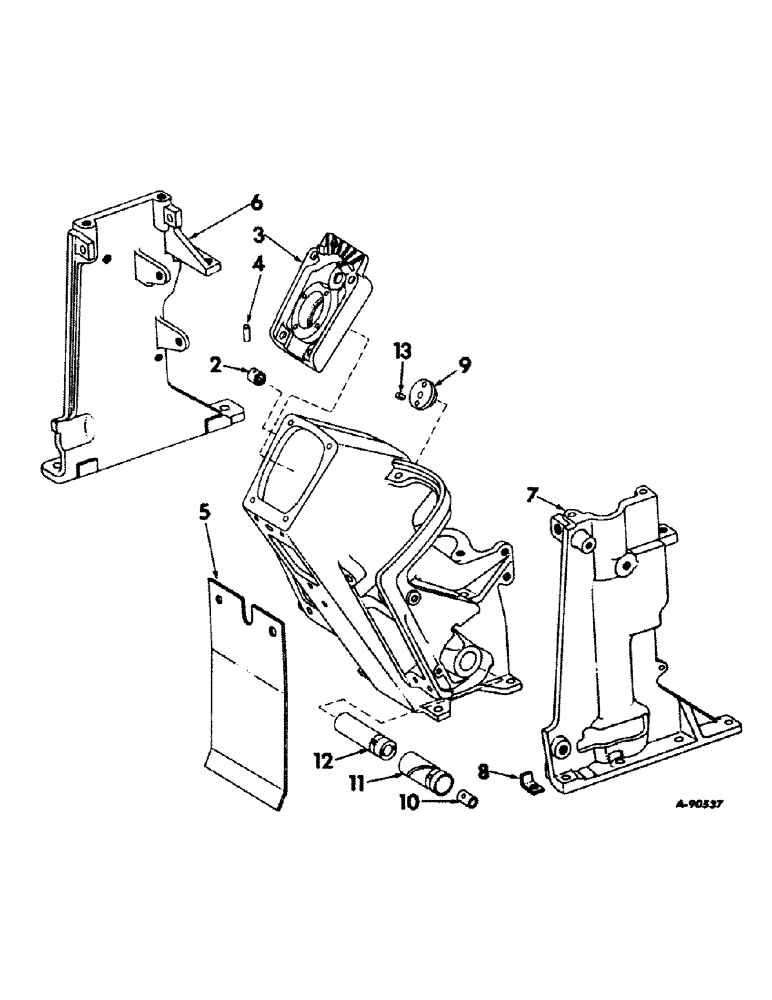

Запчасти Case IH 1256 (J-02) - STEERING MECHANISM, STEERING AND GEAR SELECTOR SUPPORT Steering Mechanism

1

398277R91

SUPPORT ASSY, steering & gear selector

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

SCREW, 3/8-16 x 1-1/8 hex-hd cap, 2 for Farmall tractors, 3 for International tractors

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd cap, International tractors, 2 for Farmall tractors

1шт.

95-11041

WASHER,3/8"

(13/32 x 13/16 x .065), International tractors, 2 for Farmall tractors 3/8"

1шт.

2

382638R2

BUSHING,19.07mm ID x 22.24mm OD x 19.05mm L

range transmission selector cross shaft

1шт.

3

398276R1

COVER, steering & gear selector support

1шт.

21327R1

SCREW

5/16-18 x 1-1/4 C-Z hex-soc-hd cap

4шт.

354825R1

WASHER

steering support rear opening cover

1шт.

4

385528R1

PIN

3/16 x 1/2 cd-pltd dowel

1шт.

5

382750R1

SUPPORT

COVER, gear selector support

1шт.

386858R1

SCREW,Hex Wshr Hd, 3/8" - 16 x 0.75"

3/8-16 x 3/4 C-Z washer-hd cap

2шт.

6

398108R1

SUPPORT

gear selector left

1шт.

1017960R1

PLUG,Cap, .848" OD

gear selector support

4шт.

280161

BOLT,Hex, 3/8" - 16 x 3", Gr 5

4шт.

7

398109R1

SUPPORT, gear selector right

1шт.

1017960R1

PLUG,Cap, .848" OD

gear selector support

4шт.

280161

BOLT,Hex, 3/8" - 16 x 3", Gr 5

3шт.

186282

BOLT,Hex, 3/8" - 16 x 3 1/4", Gr 5

SCREW, 3/8-16 x 3-1/4 hex-hd cap

1шт.

8

385583R1

STOP, neutral lock pawl

1шт.

9

398283R1

INSERT, governor control rod

1шт.

10

398274R1

BUSHING,19.07mm ID x 22.24mm OD x 31.75mm L

transmission cross shaft

1шт.

11

398275R1

BUSHING

range shift handle

1шт.

12

398273R1

BUSHING

shift support

1шт.

13

19955R1

PIN,1/4" x 1/2", Coiled

1шт.
