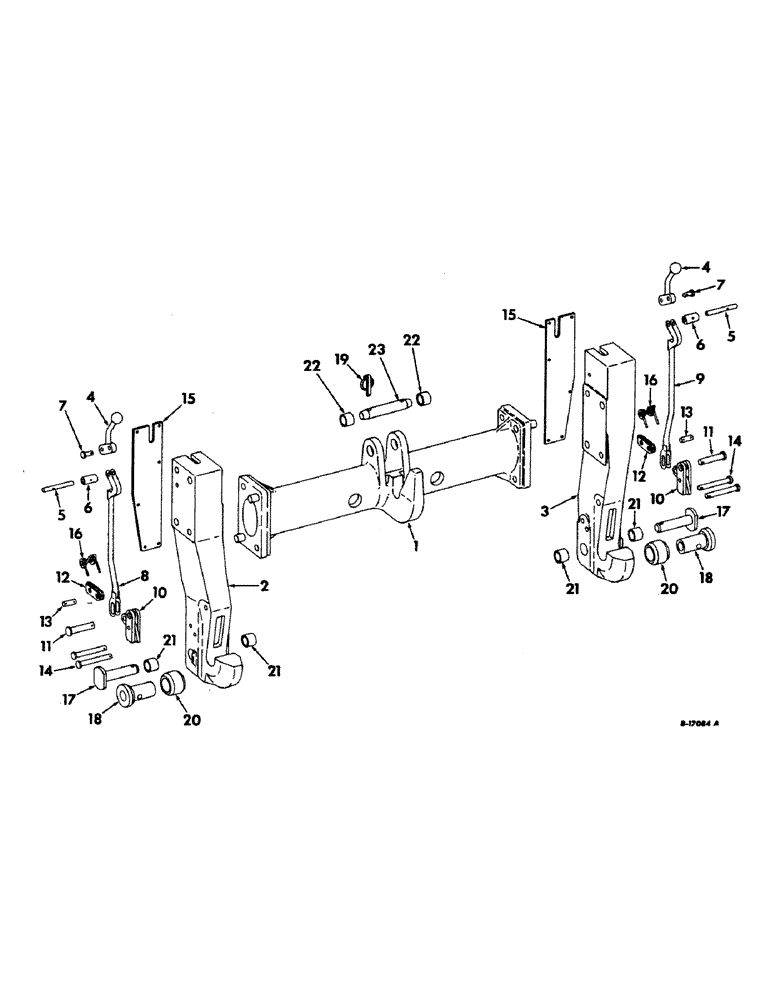

Запчасти Case IH 1256 (K-08) - DRAWBARS AND HITCHES, QUICK COUPLER, CATEGORY III CONVERTIBLE TO CATEGORY II HITCH Drawbars & Hitches

401229R91

PARTS ACCESSORY, quick coupler

1шт.

401231R91

COUPLING

COUPLER ASSY, quick, consists of ref nos. 1 thru 17

1шт.

1

401249R1

SECTION ASSY, center

1шт.

2

401250R1

ARM, side LH cat III

1шт.

3

401251R1

ARM, side RH cat III

1шт.

20611R1

BOLT,Hex, 5/8" - 11 x 2 1/4", Gr 8

SCREW, 5/8-11 x 2-1/4 hex-hd cap

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

4

401236R1

LEVER

hitch

2шт.

5

401252R1

PIN, hitch lever hinge

2шт.

6

401253R1

SPACER, lever pin

2шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

2шт.

7

401245R1

PIN, hitch lever link

2шт.

648002

KNIFE

1/8" x 3/4"

2шт.

8

401254R1

ROD ASSY, hitch LH cat III

1шт.

9

401255R1

ROD ASSY, hitch RH cat III

1шт.

10

401242R1

SUPPORT

PLATE ASSY, latch

2шт.

11

401246R1

PIN

locking latch hinge

2шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

2шт.

12

401243R1

CLEVIS

LINK, hitch lower

2шт.

13

401247R1

PIN, clevis slot

2шт.

446548

WASHER,0.38" ID x 0.75" OD x 0.05" Thk

3/8

4шт.

648002

KNIFE

1/8" x 3/4"

4шт.

14

401215R1

PIN

lower link

4шт.

648002

KNIFE

1/8" x 3/4"

4шт.

15

401216R1

PLATE, farm front cover

2шт.

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

SCREW, 1/4 x 1/2 hex-hd cap

12шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

12шт.

16

401244R1

SPRING

double torsion

2шт.

17

401217R1

PIN

stud cat III

2шт.

17

401248R1

PIN

ASSY, stud cat II

2шт.

18

401232R1

ADAPTER

implement lower hitch pin

2шт.

21925R1

PIN, 7/16 x 1-3/8 HV coiled spring, cat II hitch

2шт.

19

517758R91

SPLIT PIN/SAFETY PIN

PIN ASSY, quick attachable

1шт.

20

401233R1

COLLAR

BUSHING, implement lower hitch pin, cat III hitch

2шт.

19998R1

PIN,1/2" x 2 1/2", Coiled

2шт.

21

401218R1

BUSHING

stud pin

4шт.

22

401256R1

BUSHING

upper hitch pin

2шт.

23

401234R1

PIN

upper hitch cat II

1шт.
