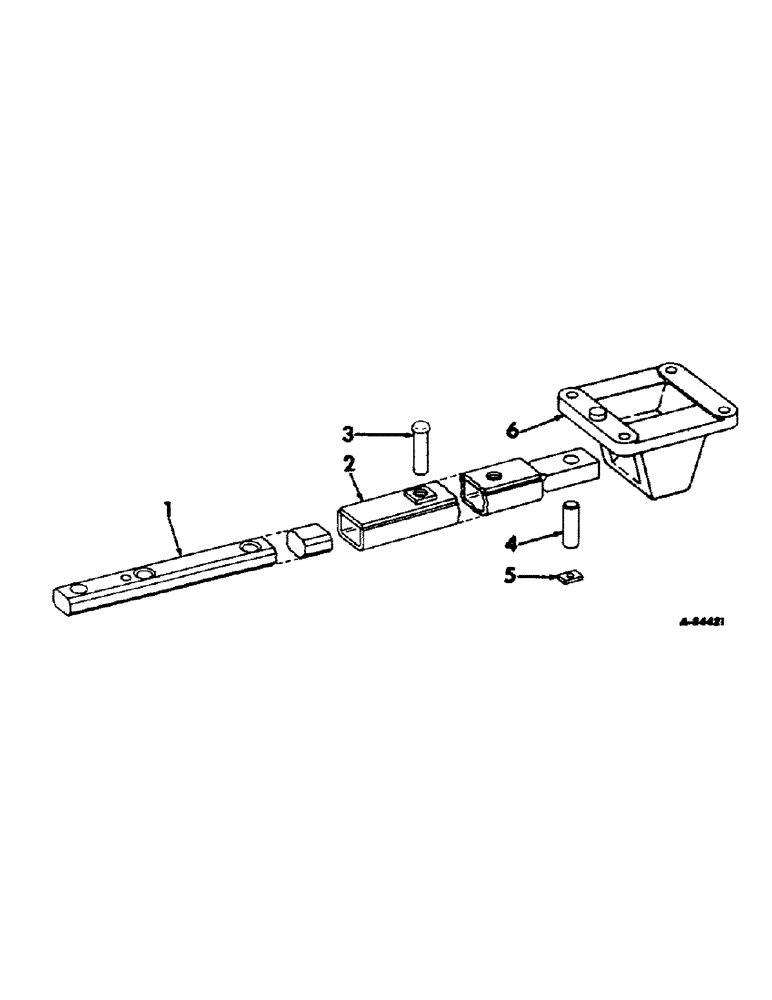

Запчасти Case IH 1256 (K-04) - DRAWBARS AND HITCHES, STOREAWAY SWINGING DRAWBAR, TRACTORS WITH THREE POINT FAST HITCH Drawbars & Hitches

ATTACHMENT, storeaway swinging drawbar, 391987R91

1шт.

1

397066R1

BAR

DRAWBAR, rear section

1шт.

2

391988R91

DRAWBAR ASSY, front section

1шт.

271613

SCREW,Hex, 3/4" - 10 x 2 1/2", Gr 5

3/4-10 x 2-1/2 hex-hd cap, drawbar stop

2шт.

425-1012

NUT,3/4"-10, G5

3/4-10 hex.

2шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

3

389428R1

AXLE PIN,25.4mm OD x 95.25mm L

PIN, 1 x 3-3/4 headed, operating position

1шт.

520175R1

CLIP

PIN, quick attachable cot.

1шт.

3

397067R1

PIN

drawbar, storage position

1шт.

4

57654D

PIVOT PIN

PIN, drawbar pivot

1шт.

5

49139D

WASHER,10.32mm ID x 38.1mm OD x 5mm Thk

PLATE, drawbar pivot pin lock

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

6

391890R11

SUPPORT

ASSY, swinging drawbar pivot, not part of swinging drawbar attachment

1шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

SCREW, 5/8-11 x 2 hex-hd cap

4шт.
