Запчасти Case IH 1256 (K-02) - DRAWBARS AND HITCHES, VERTICALLY ADJUSTABLE DRAWBAR Drawbars & Hitches

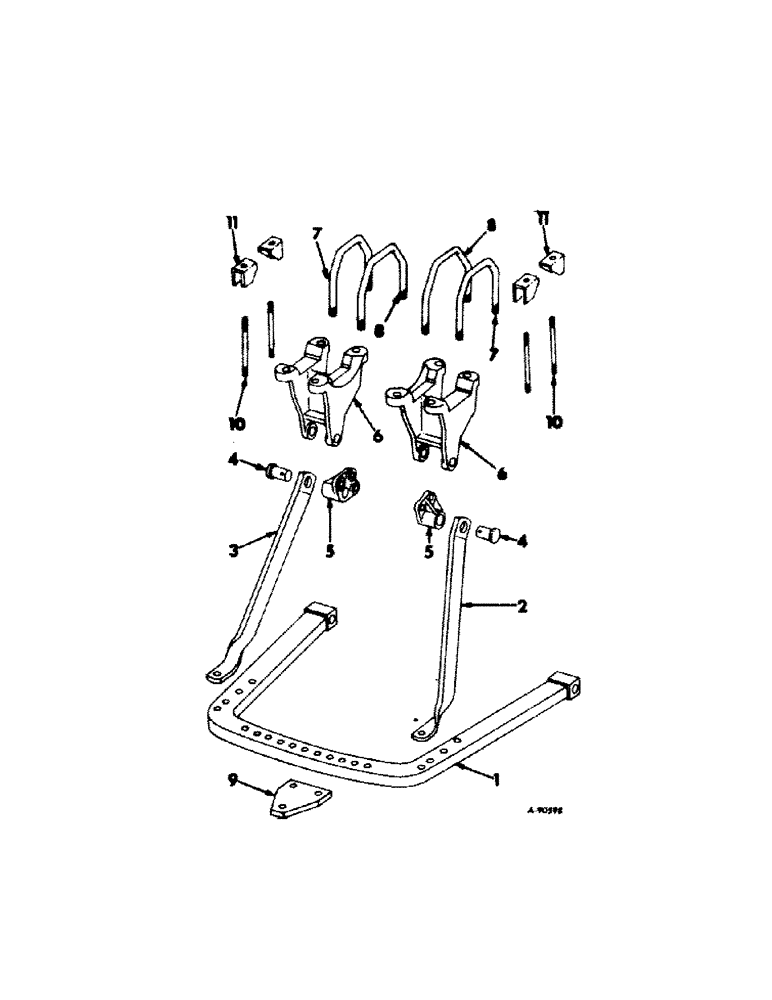

Схема запчастей Case IH 1256 - (K-02) - DRAWBARS AND HITCHES, VERTICALLY ADJUSTABLE DRAWBAR Drawbars & Hitches
1
2
6
11
5
4
7
10
6
3
5
8
7
11
8
9
10
4

Артикул

Название

Примечание

Количество

1

391867R11

DRAWBAR ASSEMBLY

1шт.

1

400282R1

DRAWBAR ASSEMBLY, heavy duty

1шт.

103348

WASHER,1" x 2" x .134"

1-1/16 x 2 x .134

4шт.

2

383062R2

BRACE, drawbar LH

1шт.

425-1012

NUT,3/4"-10, G5

3/4-10 hex.

1шт.

20072R1

BOLT,Hex, 3/4" - 10 x 3 1/4", Gr 8

SCREW, 3/4-10 x 3-1/4 hex-hd cap

1шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

3

383063R2

BRACE, drawbar RH

1шт.

220081

NUT

3/4-10 hex.

1шт.

20072R1

BOLT,Hex, 3/4" - 10 x 3 1/4", Gr 8

SCREW, 3/4-10 x 3-1/4 hex-hd cap

1шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

4

383064R1

PIN

drawbar brace

2шт.

13121R1

Pin, Split (Cotter), 1/4" x 1 1/2", self opening 1/4" x 1 1/2"

2шт.

5

384025R1

BRACKET

lockout

2шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

SCREW, 5/8-11 x 2 hex-hd cap

6шт.

6

383059R1

BRACKET, drawbar mounting

2шт.

220083

NUT,1"-8, G5

1-8 hex.

2шт.

18757R1

SCREW, 1-8 x 5-3/4 hex-hd cap

2шт.

7

383061R2

U-BOLT, drawbar bracket outer

2шт.

425-1012

NUT,3/4"-10, G5

3/4-10 hex.

4шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

8

383060R2

U-BOLT, drawbar bracket inner

2шт.

220081

NUT

3/4-10 hex.

4шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

9

(Not used in this application)

1шт.

10

398583R1

STUD, drawbar & deluxe fender mounting, tractors w/deluxe fenders

4шт.

425-1012

NUT,3/4"-10, G5

3/4-10 hex.

4шт.

11

398584R1

CHANNEL, drawbar reinforcment, tractors w/deluxe fenders

1шт.

Выбрано товаров: 28
