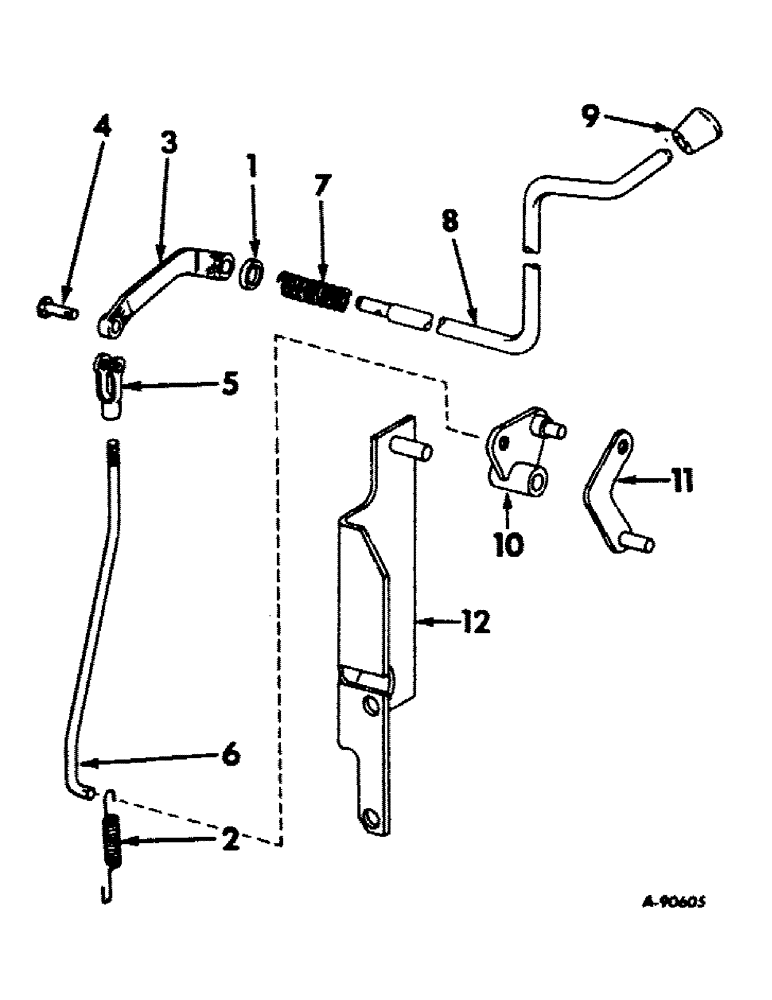

Запчасти Case IH 1256 (H-10) - CONTROLS, INDEPENDENT POWER TAKE-OFF LEVERS AND CONTROLS Controls

1

382483R1

WASHER

DISC, independent PTO handle friction

1шт.

2

401222R1

VALVE SPRING

SPRING, IPTO linkage anti-friction

1шт.

3

399632R1

ARM

independent PTO

1шт.

4

103496

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, , Independent PTO actuating rod end 3/8" x 1.060"

1шт.

107762

WASHER,3/32" x 5/8"

PIN, SPLIT, (COTTER), 3/32" x 5/8"

1шт.

5

104038

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

CLEVIS, 3/8-24 rod end adjustable

1шт.

114494

NUT,Jam, 3/8"-24, G5

1шт.

6

399633R1

ROD

independent PTO actuating

1шт.

107762

WASHER,3/32" x 5/8"

PIN, SPLIT, (COTTER), 3/32" x 5/8"

1шт.

95-11041

WASHER,3/8"

(13/32 x 13/16 x .065) 3/8"

1шт.

7

399635R1

VALVE SPRING

SPRING, independent PTO handle rod

1шт.

8

399634R2

ROD

independent PTO handle

1шт.

443023

GROOVED PIN,3/16" x 1", Type F

Pin, Grooved, 3/16" x 1", Type F

1шт.

9

387885R1

KNOB

independent PTO handle rod

1шт.

10

384189R12

LEVER

ASSY, over-center

1шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

95-11034

WASHER,1/4"

11/32 x 11/16 x 16 ga

1шт.

11

384192R11

LEVER

LINK ASSY, valve stem actuating

1шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

95-11034

WASHER,1/4"

11/32 x 11/16 x 16 ga

1шт.

12

399626R1

SUPPORT

ASSY, valve linkage

1шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

189787

BOLT,Hex, 1/2" - 13 x 5 1/4", Gr 5

SCREW, 1/2-13 x 5-1/4 hex-hd cap

2шт.

95-11041

WASHER,3/8"

(13/32 x 13/16 x 16 ga) 3/8"

1шт.
