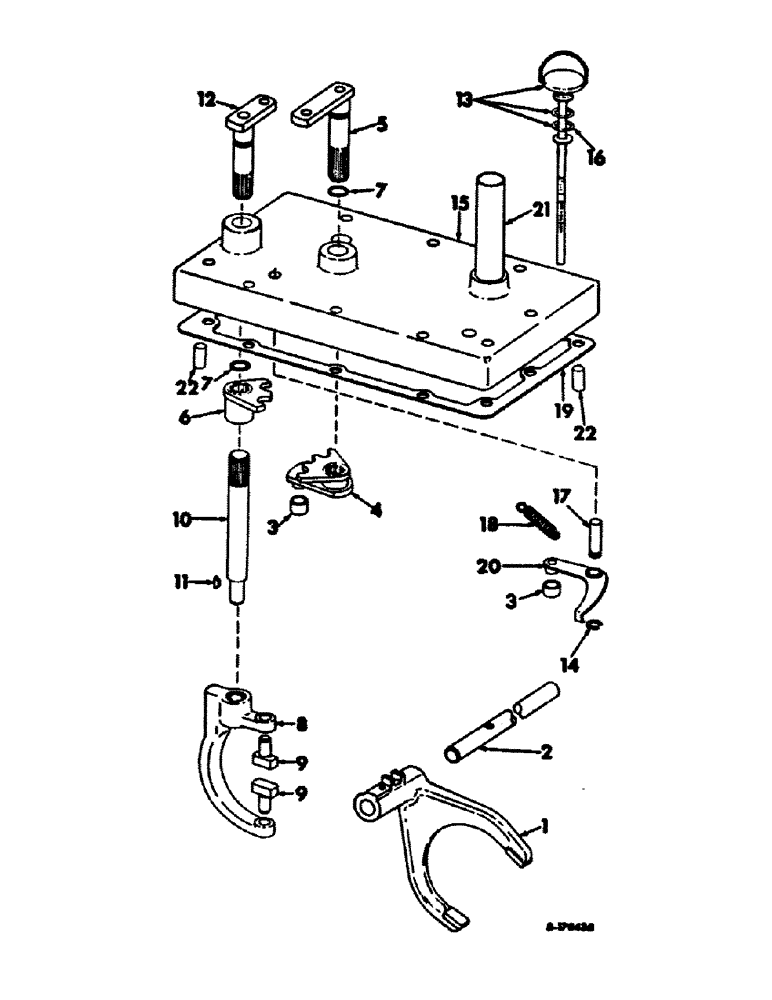

Запчасти Case IH 1256 (H-06) - CONTROLS, GEAR SHIFT MECHANISM, RANGE TRANSMISSION Controls

1

398279R1

FORK

hi-lo shift

1шт.

2

398280R1

PIN

hi-lo shift fork

1шт.

20648R1

BOLT,5/16" x 7/8", Gr 8

SCREW, 5/16-18 x 7/8 hex-hd cap

1шт.

114605

LOCK WASHER,Ext Tooth, 5/16"

WASHER, LOCK, Ext Tooth, 5/16"

1шт.

3

380115R2

ROLLER

detent

2шт.

4

398285R2

ARM

ASSY, hi-lo operating

1шт.

591184R1

PIN,3/16" x 1 1/4", Coiled

1шт.

5

398281R3

SHAFT

ASSY, hi-lo shift, also order o-ring, 379181R1

1шт.

615168R1

WASHER

25/32 x 1-1/2 x 11 ga

1шт.

6

528183R1

SECTOR

ASSY, reverse detent plate

1шт.

591184R1

PIN,3/16" x 1 1/4", Coiled

1шт.

7

352221R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

9/16 x 3/4 x 3/32, used w/398281R1 and 398291R1

2шт.

7

379181R1

O-RING,0.614" ID x 0.07" Width

5/8 x 3/4 x 1/16, used w/398281R2, 398291R2 and 398291R3

2шт.

8

380308R1

FORK

reverse shift

1шт.

9

380309R1

PAD

reverse shift fork

2шт.

19371R1

PIN,1/8" x 3/4", Coiled

2шт.

10

398297R1

SHAFT

reverse shift lower

1шт.

11

218217

KEY

3/16 x 5/8 woodruff 61

1шт.

12

398291R3

SHAFT

ASSY, reverse shift upper, also order o-ring, 379181R1

1шт.

615168R1

WASHER

23/32 x 1-1/2 x 11 ga

1шт.

13

398311R92

GAUGE ASSY.

GAUGE ASSY, oil level

1шт.

14

370290R1

SNAP RING,#50, .392" Dia, E-Type

Ring, Retaining, , shift control arm pivot pin #50, .392" Dia, E-Type

1шт.

15

398298R11

COVER

ASSY, rear frame front, includes ref nos 17, 21 & 22

1шт.

179847

BOLT,Hex, 3/8" - 16 x 2", Gr 5

10шт.

16

350684R1

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

3/4 x 1 x 1/8

2шт.

17

398299R1

PIN

shift control pivot

1шт.

18

398304R1

SPRING

shift control arm

1шт.

19

380315R1

GASKET

rear frame front cover

1шт.

20

398300R1

ARM

ASSY, shift control

2шт.

21

386450R1

GUIDE

oil level gauge

1шт.

22

19962R1

DOWEL,3/8" x 3/4"

PIN, 3/8 x 3/4 dowel

2шт.

527854R92

PACKAGE, hi-lo shift conversion, without torque amplifier, Farmall tractors, includes arm assy., carrier, fork, gaskets, o-ring, pin, shaft assy., and shaft, Serial Range: -13328

1шт.

527854R92

PACKAGE, hi-lo shift conversion, without torque amplifier, International tractors, includes arm assy., carrier, fork, gaskets, o-ring, pin, shaft assy., and shaft, Serial Range: -8461

1шт.

398285R2

ARM

ASSY, hi-lo operating

1шт.

533927R1

CARRIER

shift collar

1шт.

393521R1

COLLAR

hi-lo shift

1шт.

398279R1

FORK

hi-lo shift

1шт.

380067R1

GASKET

clutch housing

1шт.

385757R1

GASKET

drive att opening cover

1шт.

380315R1

GASKET

rear frame front cover

1шт.

128359

O-RING,0.07" Thk x 0.614" ID, -16, Cl 5, 75 Duro

5/8 x 3/4 x 1/16, hi-lo shaft

1шт.

591184R1

PIN,3/16" x 1 1/4", Coiled

1шт.

398281R3

SHAFT

ASSY, hi-lo shift

1шт.

391827R2

SHAFT

23T main

1шт.

527855R92

PACKAGE, hi-low shift conversion, with torque amplifier, Farmall tractors, Serial Range: -13228

1шт.

527855R92

PACKAGE, hi-low shift conversion, with torque amplifier, International tractors, Serial Range: -8461

1шт.

398285R2

ARM

ASSY, hi-lo operating

1шт.

533927R1

CARRIER

shift collar

1шт.

393521R1

COLLAR

hi-lo shift

1шт.

398279R1

FORK

hi-lo shift

1шт.

380067R1

GASKET

clutch housing

1шт.

385757R1

GASKET

drive att opening cover

1шт.

380315R1

GASKET

rear frame front cover

1шт.

379181R1

O-RING,0.614" ID x 0.07" Width

5/8 x 3/4 x 1/16, hi-lo shift shaft

1шт.

591184R1

PIN,3/16" x 1 1/4", Coiled

1шт.

398281R3

SHAFT

ASSY, hi-lo shift

1шт.

392235R2

SHAFT

23T main

1шт.
