Запчасти Case IH 1256 (H-04) - CONTROLS, FOOT PEDAL ACCELERATOR Controls

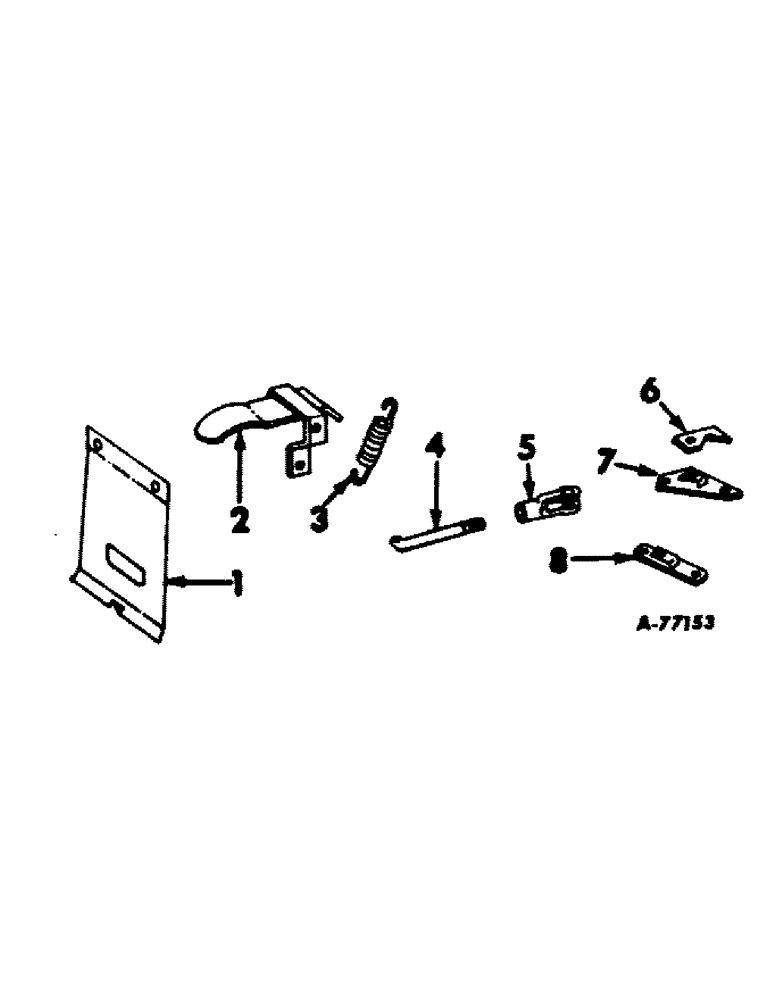

Схема запчастей Case IH 1256 - (H-04) - CONTROLS, FOOT PEDAL ACCELERATOR Controls
6
8
1
5
3
4
2
7

Артикул

Название

Примечание

Количество

399228R91

PARTS ACCESSORY, foot pedal accelerator

1шт.

1

385573R11

COVER

ASSY, gear selector support

1шт.

386858R1

SCREW,Hex Wshr Hd, 3/8" - 16 x 0.75"

3/8-16 x 3/4 washer-hd cap

2шт.

2

399229R2

PEDAL ASSY, foot accelerator

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

Q595

PIN,3/8" x 3 1/4"

3/8 x 3-1/4 std-hd

1шт.

3

281402R1

SPRING, pedal return

1шт.

4

385576R1

ROD

foot accelerator operating

1шт.

114493

JAM NUT,Jam, 5/16"-24, G5

1шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

5

213-315

CLEVIS

5/16-24 x 1-5/16 short adj rod end

1шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

NLS

NO LONGER SERVICED

5/16 x 31/32 rod end

1шт.

6

385580R1

STOP

governor operating lever

1шт.

364577R1

PIN,5/32" x 3/4", Coiled

1шт.

7

(Not used in this application)

1шт.

8

385579R21

LEVER

ASSY, governor operating rod

1шт.

363117R1

CLIP

rear harness

1шт.

Выбрано товаров: 18
