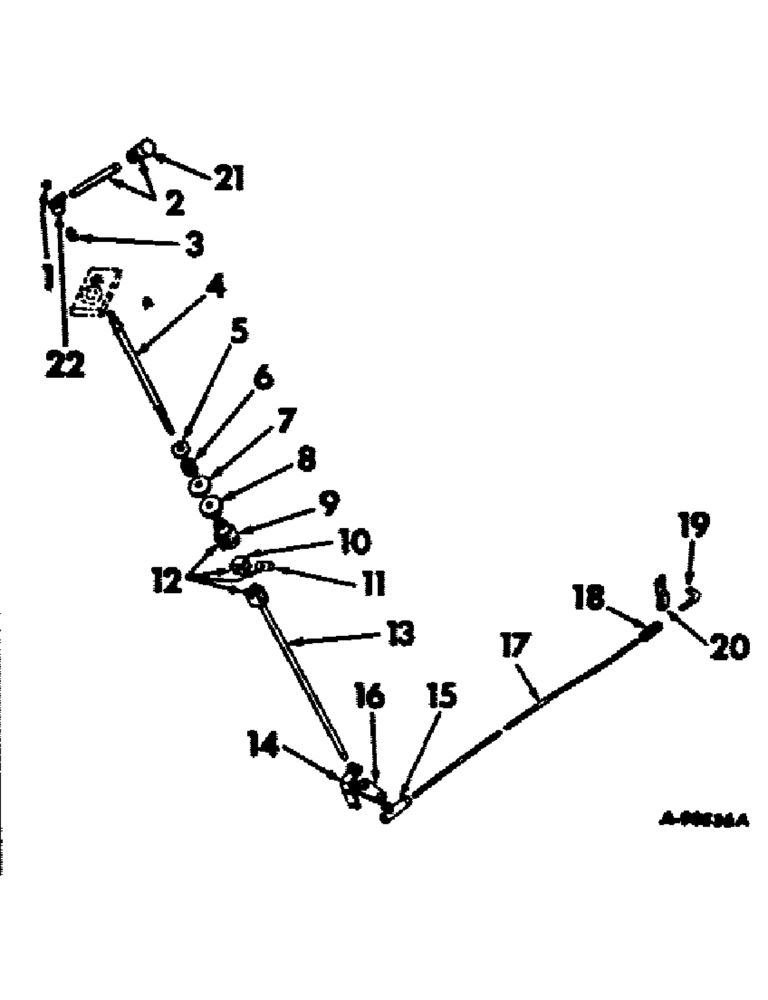

Запчасти Case IH 1256 (H-03) - CONTROLS, ENGINE SPEED CONTROLS Controls

1

192105

HOLE PLUG BUTTON,1"

PLUG, 1 in. C-Z button

1шт.

2

397929R91

HANDLE

ASSY, governor control

1шт.

230-4115

LOCK NUT,5/16"-18, GA

5/16-18 stover hex. lock

1шт.

615029R1

WASHER

3/8 x 3/4 x .065

1шт.

106265

WASHER,1/2"

9/16 x 1-3/8 x .109

1шт.

3

30A

SPRING

governor control handle

1шт.

4

382683R11

SHAFT

W/PIN, 443149, governor control upper

1шт.

443149

GROOVED PIN,3/16" x 1 1/4", Type E

Pin, Grooved, , order shaft assy, 404238R11 yoke assy, 404240R1 and set screw 333800R1 3/16" x 1 1/4", Type E

1шт.

4

404238R11

SHAFT

W/PIN, 443149, governor control

1шт.

443149

GROOVED PIN,3/16" x 1 1/4", Type E

Pin, Grooved, 3/16" x 1 1/4", Type E

1шт.

5

369461R1

RETAINER

RETAINER, governor control spring

1шт.

114505

JAM NUT,Jam, 1/2"-13, G5

2шт.

6

369462R1

SPRING

governor control

1шт.

7

382684R1

GASKET

DISC, governor control friction

1шт.

8

382685R11

RETAINER

RETAINER ASSY, governor control friction

1шт.

19368R1

PIN,5/32" x 1", Coiled

1шт.

9

382689R11

YOKE ASSY, upper, tractors w/out tilt steering att order shaft assy, 404238R11 yoke assy, 404240R1 and set screw 333800R1, tractors w/tilt steering att order shaft, 404246R1, yoke assy, 404240R1 and set screw 333800R1

1шт.

9

404240R1

YOKE

ASSY, upper

1шт.

10

382691R1

CROSS

BLOCK, universal joint center

1шт.

11

382692R1

PIN

center block

1шт.

12

404243R91

JOINT & SHAFT ASSY, governor control

1шт.

Replaces 382688R91, for service on 382688R91, when used on tractors w/o tilt steering wheel att., furnish joint & shaft assy 404243R91, set screw 383800R1, shaft assy 404238R11, tractors w/tilt steering att. order joint and shaft assy, 404243R91 set screw 333800R1 and shaft 404246R1

1шт.

333800R1

BOLT,Set, 1/4" - 20 x 1/4", Cup Pt

SCREW, 1/4-20 x 1/4 hx soc hdls cup point set

1шт.

13

382694R11

ROD

SHAFT ASSY, governor control lower

1шт.

385681R1

PIN

1/4 x 1-1/4 str

1шт.

14

382695R11

BRACKET

SUPPORT ASSY, governor control shaft

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

15

393353R91

JOINT TURNING

JOINT, 5/16-24 C-Z type sp ball

1шт.

425-115

NUT,5/16"-24, G5

5/16-24 hex.

1шт.

16

392955R11

LEVER

ASSY, governor control rod operating

1шт.

364577R1

PIN,5/32" x 3/4", Coiled

1шт.

17

401313R1

ROD, governor control, rear

1шт.

114493

JAM NUT,Jam, 5/16"-24, G5

1шт.

455332

NUT,Jam, 5/16"-18, G5, LH

5/16-24 hex. jam LH

1шт.

18

369474R1

TURNBUCKLE

governor control rod

1шт.

19

392956R1

ROD, governor control, front

1шт.

114492

JAM NUT,Jam, 1/4"-28, G5

1/4-28 hex. jam

1шт.

432-68

COTTER PIN,3/32" x 1/2"

Pin, Split (Cotter), 3/32" x 1/2"

1шт.

95-11034

WASHER,1/4"

11/32 x 11/16 x .065

1шт.

20

384594R1

GUIDE, governor control rod

1шт.

179875

BOLT,Hex, 1/2" - 13 x 1/2", Gr 5

SCREW, 1/2-13 x 1/2 hex-hd cap

1шт.

21

397931R2

GRIP

governor control handle

1шт.

21

397931R2GV

SPRING

Value, Knob

1шт.

22

397932R1

HUB

governor control handle

1шт.

38-31014

PIN,5/32" x 7/8", Coiled

5/32 x 3/4 groove

1шт.
