Запчасти Case IH 1256 (H-02) - CONTROLS, ENGINE CONTROLS AND INSTRUMENTS Controls

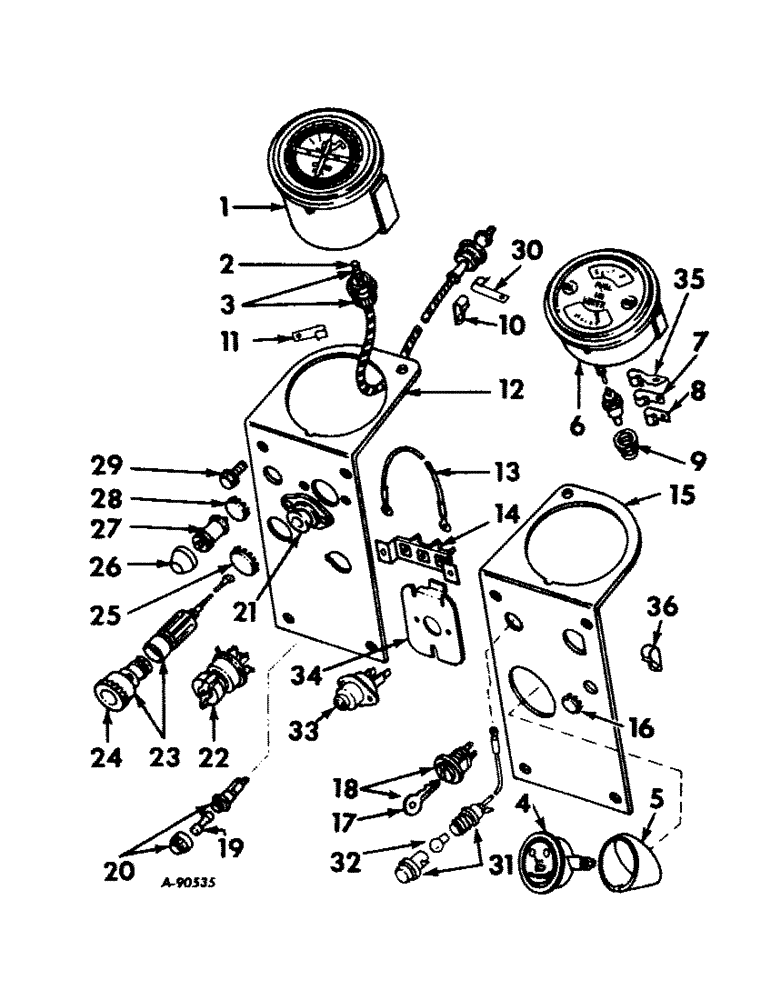

Схема запчастей Case IH 1256 - (H-02) - CONTROLS, ENGINE CONTROLS AND INSTRUMENTS Controls
10
11
36
23
7
17
8
28
26
6
30
25
2
34
22
27
13
24
32
15
3
21
29
18
31
9
14
4
12
33
20
16
5
1
19
35

Артикул

Название

Примечание

Количество

1

398095R91

SPEEDOMETER

tachometer assy

1шт.

2

393329R91

CORE

ASSY, tachometer flexible drive shaft

1шт.

3

393328R91

CABLE

SHAFT ASSY, tachometer flexible drive

1шт.

4

397942R91

INDICATOR

ASSY, electric air cleaner

1шт.

5

397943R1

SPACER, electric air cleaner gauge

1шт.

6

398094R92

CLUSTER

ASSY, gauge

1шт.

7

355574R1

CLIP

capillary tube

1шт.

8

351699R1

CLIP, capillary tube

1шт.

9

51510DA

RESTRICTOR

BUSHING, capillary tube bulb installation

1шт.

10

384558R1

CLIP

tachometer flexible drive shaft short

1шт.

179875

BOLT,Hex, 1/2" - 13 x 1/2", Gr 5

SCREW, 1/2-13 x 1/2 hex-hd cap

1шт.

11002VA

WASHER

17/32 x 7/8 x 16 ga

1шт.

11

362123R1

CLIP

tachometer flexible drive shaft short, replaces 363812R1

1шт.

12

382724R91

PANEL

ASSY, instrument LH

1шт.

13

405212R1

HARNESS

CABLE ASSY, horn switch to junction block, International tractors, will work for 382212R91

1шт.

13

357929R92

ELECTRIC CABLE

CABLE ASSY, horn switch to junction block, Farmall tractors

1шт.

14

378336R91

BLOCK

ASSY, junction

1шт.

109084

NUT,1/4"-20, G5

2шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

3шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

3шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

15

397941R11

PANEL ASSY, instrument RH

1шт.

16

383621R1

PLUG, choke control hole button

1шт.

17

382458R2

KEY

switch

1шт.

18

403562R1

IGNITION SWITCH

SWITCH ASSY, key, replaces 379594R92

1шт.

365502R1

NUT

switch mounting

1шт.

375431R1

LOCK WASHER

switch mounting nut

1шт.

19

117142

FUSE,10 Amp, Type 3AG

cartridge type AGC 10

1шт.

19

106653

FUSE

cartridge type AGC 20, tractors with cab

1шт.

20

376852R91

HOUSING

ASSY, fuse

1шт.

21

397940R92

IGNITION SWITCH

SWITCH ASSY, push button

1шт.

120611

NUT,#10 - 32

10-32 cd or zn-pltd sq

2шт.

132903

ADAPTER

SCREW, 10-32 x 7/16 cd or zn-pltd slt-rd-hd mach

2шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

22

403571R1

LIGHT SWITCH

SWITCH ASSY, lighting, replaces 376851R91

1шт.

23

382671R91

CIGAR LIGHTER

CIGARETTE LIGHTER PARTS ACCESSORY

1шт.

24

378781R91

PACKAGE

UNIT, pop-out

1шт.

25

432281

HOLE PLUG BUTTON,29/32"

PLUG, cigarette lighter hole button

1шт.

26

371487R1

CYLINDER END CAP

CAP, horn switch dust

1шт.

27

393209R91

SWITCH

horn, less cap, will work for 373611R91

1шт.

28

374342R1

PLUG

horn switch

1шт.

29

369222R1

BOLT,Hex Wshr Hd, 5/16" - 18 x 5/8"

SCREW, instrument panel mounting

10шт.

30

349059R91

CLIP, tachometer flexible drive shaft

1шт.

31

392441R91

LIGHT

ASSY, transmission oil pressure

1шт.

32

9412348

BULB,C2B, #257, 14V

LAMP, no. 257 12 volt

1шт.

33

397940R92

IGNITION SWITCH

SWITCH ASSY, solenoid push button

1шт.

436750

SCREW,Slotted Pan Hd, #10-32 x 1/2"

10-32 x 1/2 C-Z slt-pan-hd mach

2шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

120611

NUT,#10 - 32

10-32 C-Z sq

2шт.

34

395073R1

PANEL

push button ether starting

1шт.

181561

BOLT,Hex, 1/4" - 28 x 1/2", Gr 5

SCREW, 1/4-28 x 1/2 C-Z hex-hd cap

1шт.

35

370205R1

CLIP, capilliary tube twisted

1шт.

36

366460R1

CABLE CLIP

CLIP, electric air cleaner indicator cable

1шт.

Выбрано товаров: 53
