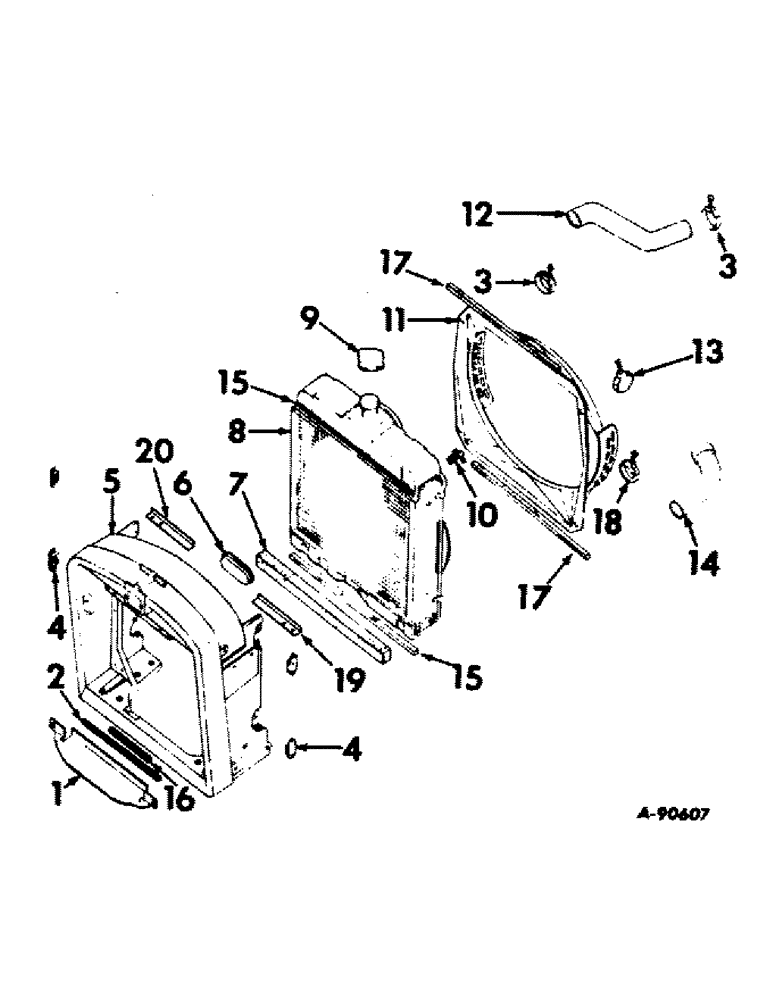

Запчасти Case IH 1256 (A-05) - CHASSIS, RADIATOR AND SHEET METAL, RADIATOR AND CONNECTIONS Chassis, Radiator & Sheet Metal

1

383407R1

BAFFLE, radiator air, International tractors

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

95-11041

WASHER,3/8"

(13/32 x 13/16 x .065) 3/8"

2шт.

2

385631R1

SEAL

radiator air baffle long, Farmall tractors, 2 for International tractors

1шт.

3

39205H

CLAMP

radiator hose

2шт.

4

378710R91

PLATE ASSY.

BRACKET, radiator mounting plate

4шт.

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

7шт.

NLS

NO LONGER SERVICED

SCREW, 1/4-20 x 7/8 hex-hd cap

4шт.

5

398640R1

SUPPORT, radiator

1шт.

19555R1

PIN,5/16" x 1", Coiled

2шт.

413-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

SCREW, 5/8-11 x 2-3/4 hex-hd cap, Farmall tractors

5шт.

413-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

SCREW, 5/8-11 x 2-3/4 hex-hd cap, International tractors

6шт.

384317R1

SCREW, 12-pt-hd, Farmall tractors

1шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.

6

383788R1

PLUG

radiator support

2шт.

7

383839R1

GASKET

GASKET, radiator baffle, Farmall tractors

1шт.

8

391931R91

RADIATOR ASSY

1шт.

9

402281R1

CYLINDER END CAP

CAP, radiator filler

1шт.

10

614201R1

VALVE

COCK, 1/4 drain, radiator

1шт.

11

391933R12

SHROUD ASSY, fan

1шт.

11

395480R1

HOUSING ASSY, fan, tractors w/air conditioned cab

1шт.

95-11028

WASHER,1/4"

9/32 x 5/8 x .051

4шт.

179789

BOLT,Hex, 1/4" - 20 x 3/8", Gr 5, Full Thd

4шт.

12

391932R1

RADIATOR HOSE,50.80 mm ID x 248.90 mm, SAE 20R4, CLASS R, GRADE 1

Inlet 50.80 mm ID x 248.90 mm, SAE 20R4, CLASS R, GRADE 1

1шт.

13

39219H

CLAMP

radiator outlet hose upper

1шт.

14

380448R2

RADIATOR HOSE,55.90 mm ID x 213.40 mm, SAE 20R4 CLASS SC

Outlet 55.90 mm ID x 213.40 mm, SAE 20R4 CLASS SC

1шт.

15

385631R1

SEAL

radiator air, on radiator

1шт.

16

389600R1

STRIP

SEAL, radiator air

1шт.

17

391934R1

SEAL, radiator air

2шт.

18

81448H

EXCITER

CLAMP, radiator outlet hose lower

1шт.

19

398629R1

BAFFLE, grille LH air, Farmall tractors

1шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

20

398630R1

BAFFLE, grille RH air, Farmall tractors

1шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.
