Запчасти Case IH 1256 (N-19) - PARTS ACCESSORIES AND ATTACHMENTS, PROTECTIVE FRAME Accessories & Attachments

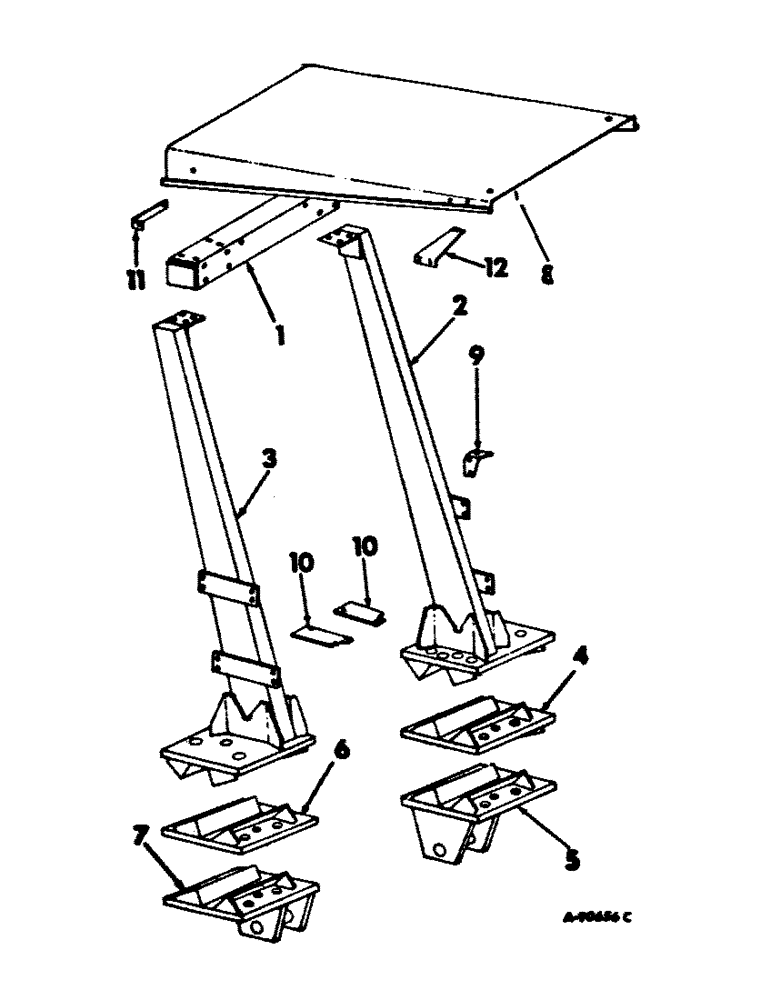

Схема запчастей Case IH 1256 - (N-19) - PARTS ACCESSORIES AND ATTACHMENTS, PROTECTIVE FRAME Accessories & Attachments
4
1
2
10
5
8
6
12
3
10
9
11
7

Артикул

Название

Примечание

Количество

ATTACHMENT, protective frame 528960R91, International tractors w/o vertically adjustable drawbar

1шт.

Attachments must also be equipped with exhaust pipe extension.

1шт.

ATTACHMENT, protective frame 528961R91, International tractors w/vertically adjustable drawbar

1шт.

Attachments must also be equipped with exhaust pipe extension.

1шт.

ATTACHMENT, protective frame 403420R91, Farmall tractors w/o vertically adjustable drawbar

1шт.

Attachments must also be equipped with exhaust pipe extension.

1шт.

ATTACHMENT, protective frame 403890R91, Farmall tractors with vertically adjustable drawbar

1шт.

Attachments must also be equipped with exhaust pipe extension.

1шт.

1

402082R1

BAR ASSY, frame cross, Farmall tractors

1шт.

1

528962R1

BAR ASSY, frame cross, International tractors

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

8шт.

2

402087R1

FRAME ASSY, safety LH, Farmall tractors

1шт.

2

528966R1

FRAME ASSY, International tractors

1шт.

3

402088R2

FRAME ASSY, safety RH, Farmall tractors

1шт.

3

528967R1

FRAME ASSY, safety RH, International tractors

1шт.

4

402098R1

BOTTOM ASSY, frame bar LH, for tractors w/o vertically adjustable drawbar

1шт.

425-1014

NUT,7/8"-9, G5

NUT, 7/8"-9, G5

5шт.

22467R1

BOLT,Hex, 7/8" - 9 x 10", Gr 5

SCREW, 7/8-9 x 10 hex-hd cap

1шт.

22468R1

BOLT,Hex, 7/8" - 9 x 11", Gr 5

SCREW, 7/8-9 x 11 hex-hd cap

5шт.

5

402101R1

BOTTOM ASSY, frame bar LH, for tractors equipped with vertically adjustable drawbar

1шт.

425-1014

NUT,7/8"-9, G5

NUT, 7/8"-9, G5

5шт.

22467R1

BOLT,Hex, 7/8" - 9 x 10", Gr 5

SCREW, 7/8-9 x 10 hex-hd cap

1шт.

22468R1

BOLT,Hex, 7/8" - 9 x 11", Gr 5

SCREW, 7/8-9 x 11 hex-hd cap

5шт.

6

402097R1

BOTTOM ASSY, frame bar RH, for tractors not equipped with vertically adjustable drawbar

1шт.

425-1014

NUT,7/8"-9, G5

NUT, 7/8"-9, G5

5шт.

22467R1

BOLT,Hex, 7/8" - 9 x 10", Gr 5

SCREW, 7/8-9 x 10 hex-hd cap

1шт.

22468R1

BOLT,Hex, 7/8" - 9 x 11", Gr 5

SCREW, 7/8-9 x 11 hex-hd cap

5шт.

7

402100R1

BOTTOM ASSY, frame bar RH, for tractors equipped with vertically adjustable drawbar

1шт.

425-1014

NUT,7/8"-9, G5

NUT, 7/8"-9, G5

5шт.

22467R1

BOLT,Hex, 7/8" - 9 x 10", Gr 5

SCREW, 7/8-9 x 10 hex-hd cap

1шт.

22468R1

BOLT,Hex, 7/8" - 9 x 11", Gr 5

SCREW, 7/8-9 x 11 hex-hd cap

5шт.

8

402105R1

TOP ASSY W/COATING

1шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

10шт.

189295

BOLT,Hex, 3/8" - 16 x 4 1/2", Gr 5

SCREW, 3/8-16 x 4-1/2 hex-hd cap

3шт.

433163

BOLT,Hex, 1/2" - 13 x 5", Gr 5

SCREW, 1/2-13 x C-Z hex-hd cap, 8 for Farmall tractors, 10 for International tractors

1шт.

21395R1

SCREW,Hex, 1/2"-13 x 5 1/4", G5

M 1/2-13 x 5-1/4 znd hex-hd cap, 2 for Farmall tractors

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

120384

WASHER,1/2"

LOCK, 1/2"

10шт.

120394

WASHER,3/8", SAE

WASHER, 13/32 x 13/16 x .051 C-Z

3шт.

9

402111R1

SUPPORT, flasher light bracket, for tractors not equipped with deluxe fenders

1шт.

102637

NUT,1/2"-13, G5

2шт.

179881

BOLT,1/2" - 13 x 1", Gr 5

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

10

402112R1

PLATE, platform filler, Farmall tractors

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

6шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

SCREW, 1/2-13 x 1-1/2 znd hex-hd cap

4шт.

180180

SCREW,Hex, 1/2" - 13 x 1 7/8", Gr 5

1/2-13 x 1-7/8 znd hex-hd cap

2шт.

180183

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 5

SCREW, 1/2-13 x 2-1/4 znd hex-hd cap

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

8шт.

NLS

NO LONGER SERVICED

17/32 x 1-1/16 x .074 C-Z

6шт.

11

406115R1

BRACKET, stabilizer rear

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 znd hex-hd cap

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

469668R1

WASHER

13/32 x 3/4 x 16 ga C-Z

2шт.

12

406117R1

BRACKET, stabilizer RH front

1шт.

12

406116R1

BRACKET, stabilizer LH front

1шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 znd hex-hd cap

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

469668R1

WASHER

13/32 x 3/4 x 16 ga C-Z

6шт.

348129C91

SAFETY BELT

1шт.

404227R1

SAFETY BELT, Seat retainer, 20.2 in.

1шт.

404228R1

SAFETY BELT, Seat retainer, 25.7 in.

1шт.

271684C2

BOLT, seat belt eye

2шт.

456939

NUT,7/16"-20, G8

7/16-20 type 4 hex.

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

402132R1

BAR, seat belt anchor, Farmall tractors

2шт.

403301R1

CABLE ASSY, flasher to light, Farmall tractors w/electrical breakaway connector socket

1шт.

405218R1

CABLE ASSY, flashing warning light, Farmall tractors w/o electrical breakaway connector socket

1шт.

406122R1

CLIP, cable harness, Farmall tractors

2шт.

403302R1

HARNESS ASSY, combination light and breakaway connector, Farmall tractors w/electrical breakaway connector socket

1шт.

405880R1

HARNESS

ASSY, combination and flashing light, Farmall tractors w/o electrical breakaway connector socket

1шт.

2753699R1

PRODUCT GRAPHIC, seat belt

1шт.

Выбрано товаров: 76
