Запчасти Case IH 1256 (N-16) - PARTS ACCESSORIES AND ATTACHMENTS, SHEAVE CLUTCH Accessories & Attachments

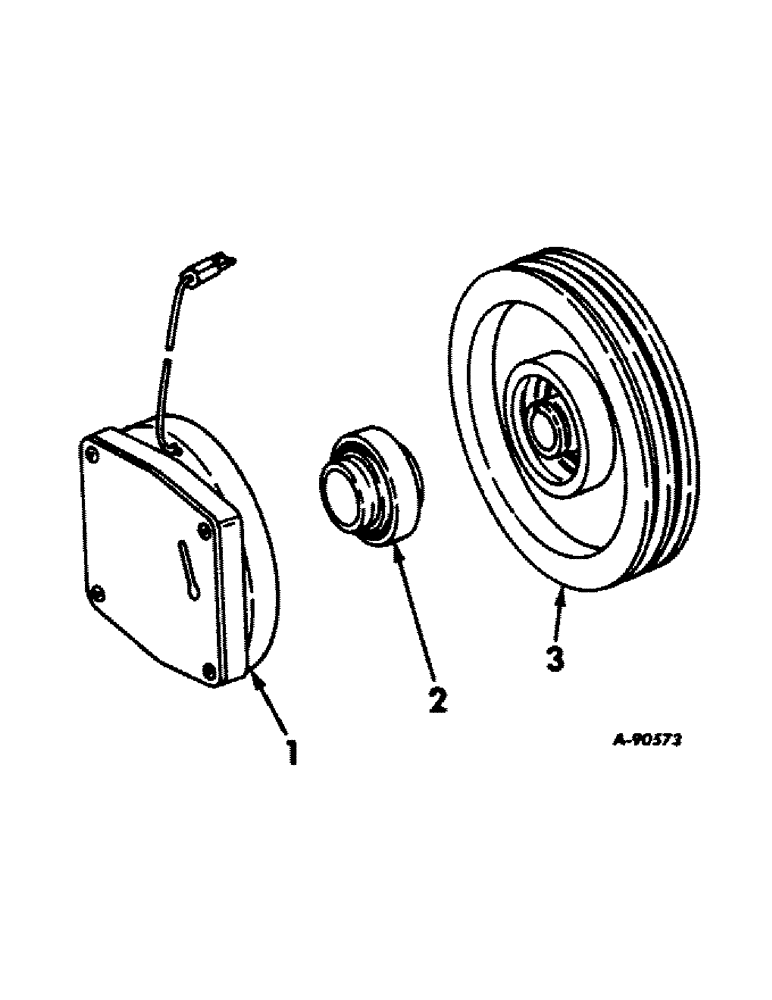

Схема запчастей Case IH 1256 - (N-16) - PARTS ACCESSORIES AND ATTACHMENTS, SHEAVE CLUTCH Accessories & Attachments
3
1
2

Артикул

Название

Примечание

Количество

400549R91

CLUTCH

ASSY, sheave, order clutch assy, 65338C91, consists of all unmarked parts and those marked unit A

1шт.

400550R91

CLUTCH ASSY, sheave, consists of all unmarked parts and those marked unit B

1шт.

1

400551R1

COIL ASSY, clutch, unit A

1шт.

1

400556R1

COIL ASSY, clutch, unit B

1шт.

2

BEARING ASSY, roller, not serviced separately, order clutch pulley

1шт.

3

400552R1

PULLEY ASSY, clutch, unit A

1шт.

3

400557R1

PULLEY ASSY, clutch, unit B

1шт.

572838R1

WASHER, special

1шт.

400555R1

SCREW, 1/4-20 x 3/8 CDP hex. washer hd

4шт.

20883R1

SCREW W/NYLON PELLET, 5/16-24 x 1-1/2 znd hex-hd cap, unit A

1шт.

572830R1

NO LONGER SERVICED

SCREW W/NYLON PELLET, 5/16-24 x 1-1/8 hex-hd cap, unit B

1шт.

Выбрано товаров: 11
