Запчасти Case IH 1256 (N-11) - PARTS ACCESSORIES AND ATTACHMENTS, TRACTOR CAB HEATER AND CONNECTIONS Accessories & Attachments

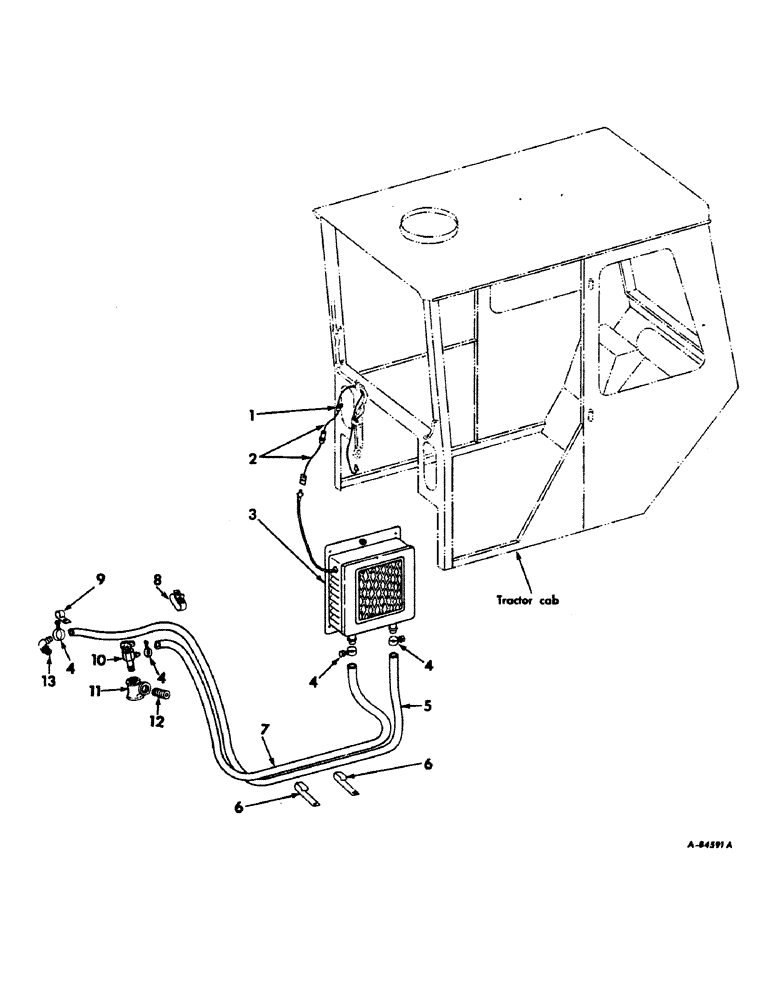

Схема запчастей Case IH 1256 - (N-11) - PARTS ACCESSORIES AND ATTACHMENTS, TRACTOR CAB HEATER AND CONNECTIONS Accessories & Attachments
4
8
4
7
6
10
5
2
13
9
4
11
1
3
4
6
12

Артикул

Название

Примечание

Количество

391171R92

ACCESSORIES

PARTS ACCESSORY, tractor cab heater

1шт.

1

263515R91

CLIP,ELECTRICAL

CLIP, heater power supply cable

1шт.

221154

SCREW, 14-10 x 1/2 slt-truss-hd mach

1шт.

2

391173R91

CABLE ASSY, heater power supply

1шт.

117142

FUSE,10 Amp, Type 3AG

cartridge type AGC 10

1шт.

3

391172R91

HEATER ASSY, tractor cab

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

272519

SCREW

1/4-20 x 1 C-Z slt-truss-hd mach

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

4

39093H

HOSE CLAMP

CLAMP, heater hose end

4шт.

5

HOSE, heater inlet, use 60 in. of 5/8 ID heater hose from a 50 ft. roll marked, 364359C1

1шт.

6

391179R3

CLIP, heater outlet hose

2шт.

7

HOSE, heater outlet, use 100 in. of 5/8 ID heater hose from a 50 ft. roll marked, 364359C1

1шт.

8

652382R91

CLAMP, heater hose

1шт.

9

427043

CLIP

CLAMP, heater outlet hose closed C-Z

1шт.

10

301803R91

VALVE

ASSY, shut-off

1шт.

11

86982696

TEE

1/2 x 3/8 x 1/2 reducing pipe

1шт.

12

121208

PIPE,Nipple, 1/2" NPT x 1 1/8"

NIPPLE, 1/2 x 1-1/8 pipe

1шт.

13

864456R1

NIPPLE, LUBE

ELBOW, hose 90 deg

1шт.

Выбрано товаров: 19
