(N-07) - PARTS ACCESSORIES AND ATTACHMENTS, TRACTOR CAB GLASS DIMENSIONS

Запчасти Case IH 1256 (N-07) - PARTS ACCESSORIES AND ATTACHMENTS, TRACTOR CAB GLASS DIMENSIONS Accessories & Attachments

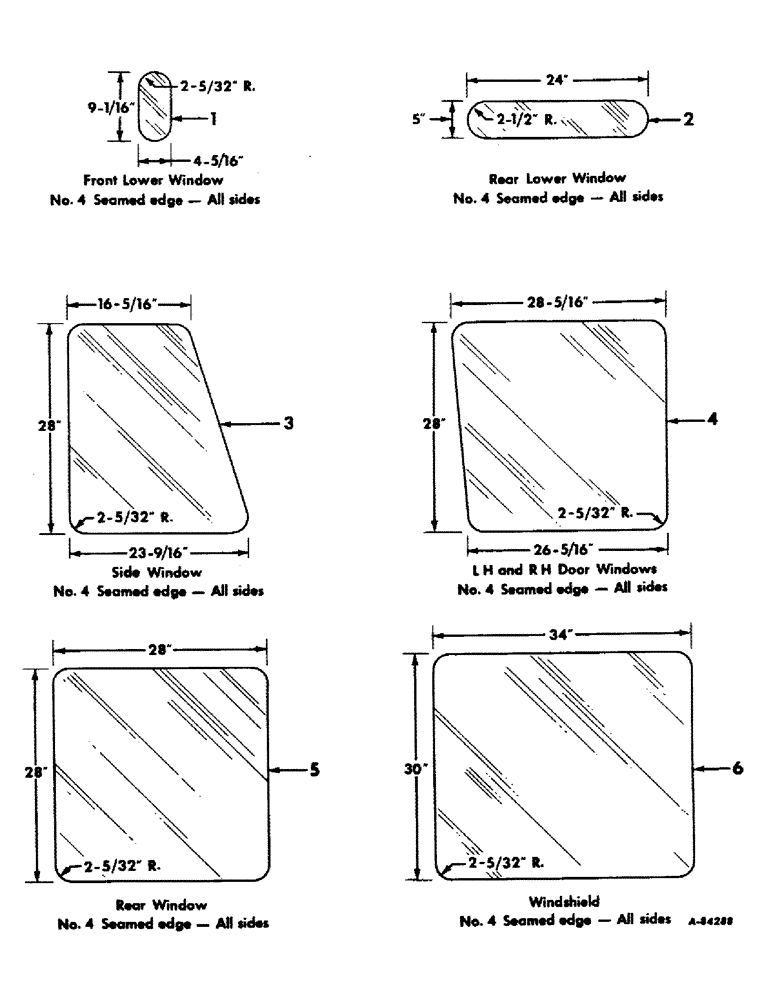

Схема запчастей Case IH 1256 - (N-07) - PARTS ACCESSORIES AND ATTACHMENTS, TRACTOR CAB GLASS DIMENSIONS Accessories & Attachments
6
5
2
4
1
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

391535R1

GLASS

front lower window, clear tempered sheet glass

2шт.

2

391536R1

GLASS, rear lower window, clear tempered sheet glass

1шт.

3

391787R1

GLASS, cab side window, blue green tint, 75-1ght transmission

2шт.

4

391515R1

GLASS, LH & RH door window, blue green tint, 75-1ght transmission

2шт.

5

391513R1

GLASS, rear window, blue green tint, 75-1ght transmission

1шт.

6

391534R1

GLASS, front windshield, blue green tint, 75-1ght transmission

1шт.
