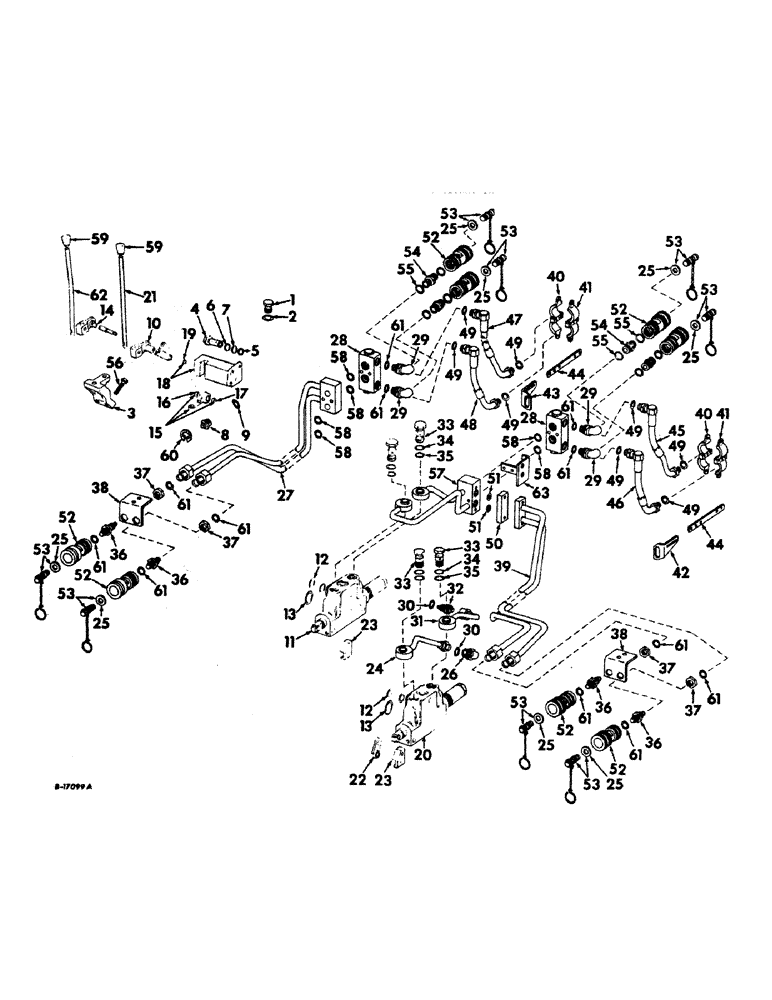

Запчасти Case IH 1256 (F-17) - HYDRAULIC SYSTEM, AUXILIARY VALVES AND TUBES (07) - HYDRAULIC SYSTEM

400753R91

PARTS ACCESSORY, single auxiliary hydraulic valve w/left rear outlet, consist of all unmarked parts and those marked unit A

1шт.

400755R91

PARTS ACCESSORY, single auxiliary hydraulic valve w/left rear outlet, tractors w/draft control, consist of all unmarked parts and those marked unit B

1шт.

400759R91

PARTS ACCESSORY, single auxiliary hydraulic valve w/left rear outlet and double acting check valve, consist of all unmarked parts and those marked unit C

1шт.

400761R91

PARTS ACCESSORY, single auxiliary hydraulic valve w/left rear outlet and double acting check valve, tractors w/draft control, consist of all unmarked parts and those marked unit D

1шт.

400765R91

PARTS ACCESSORY, single auxiliary hydraulic valve w/left rear outlet, double acting check valve and breakaway coupling, consist of all unmarked parts and those marked unit E

1шт.

400768R91

PARTS ACCESSORY, single auxiliary hydraulic valve w/left rear outlet, double acting check valve and breakaway coupling, tractors w/draft control, consist of all unmarked parts and those marked unit F

1шт.

400772R91

PARTS ACCESSORY, single auxiliary hydraulic valve w/left rear outlet, double acting check valve and breakaway coupling, tractors with platform extensions, consist of all unmarked parts and those marked unit G

1шт.

400776R91

PARTS ACCESSORY, double auxiliary hydraulic valves w/left and right rear outlets w/double acting check valves, consists of all unmarked parts and those marked unit H

1шт.

400778R91

PARTS ACCESSORY, double auxiliary hydraulic valves w/left and right rear outlets w/double acting check valves, tractors equipped w/draft control, consists of all unmarked parts and those marked unit J

1шт.

400778R91

PARTS ACCESSORY, double auxiliary hydraulic valves w/left and right rear outlet w/double acting check valve on each rear outlet w/left and right front outlet, consists of all unmarked parts and those marked unit K

1шт.

400790R91

PARTS ACCESSORY, double auxiliary hydraulic valves w/left and right rear outlet w/double acting check valve on each rear outlet w/left and right front outlet, tractors equipped w/draft control, consists of all unmarked parts and those marked unit L

1шт.

400794R91

PARTS ACCESSORY, double auxiliary hydraulic valve w/left and right rear outlet w/double acting check valve and breakaway coupling on each outlet, consists of all unmarked parts and those marked unit M

1шт.

400797R91

PARTS ACCESSORY, double hydraulic valve w/left and right rear outlet w/double acting check valve and breakaway coupling on each outlet, tractors equipped w/draft control, consists of all unmarked parts and those marked unit N

1шт.

400801R91

PARTS ACCESSORY, double auxiliary hydraulic valve w/left and right rear outlets w/double acting check valve and breakaway coupling on each rear outlet and left and right front outlet, tractors with draft control, consists of all unmarked parts and those m

1шт.

400804R91

PARTS ACCESSORY, double auxiliary hydraulic valve w/left and right rear outlets w/double acting check valve and breakaway coupling on each rear outlet and left and right front outlet, tractors with draft control, consists of all unmarked parts and those m

1шт.

400808R91

PARTS ACCESSORY, double auxiliary hydraulic valve w/left and right rear outlets w/double acting check valve and breakaway coupling on each outlet, tractors w/platform extension, consists of all unmarked parts and those marked unit R

1шт.

401297R91

PARTS ACCESSORY, double auxiliary hydralic valve w/left and right rear outlets, consists of all unmarked parts and those marked unit S

1шт.

401299R91

PARTS ACCESSORY, double auxiliary hydraulic valve w/left and right rear outlets, tractors w/draft control, consists of all unmarked parts and those marked unit T

1шт.

401303R91

PARTS ACCESSORY, double auxiliary hydraulic valve w/left and right rear outlets and left and right front outlets, consists of all unmarked parts and those marked unit U

1шт.

401305R91

PARTS ACCESSORY, double auxiliary hydraulic valve w/left and right rear outlets and left and right front outlets, tractor w/draft control, consists of all unmarked parts and those marked unit V

1шт.

1

9410361

PLUG

1-1/16-12 C-Z hyd str thd o-ring boss, check valve port, units A, C, E, G, H, K, M, P, R, S and U

1шт.

2

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

59/64 x 1-1/16 x 7/64, check valve port plug, units A, C, E, G, H, K, M, P, R, S and U

1шт.

3

389605R1

BRACKET

float lockout

1шт.

179819

BOLT,Hex, 5/16" - 18 x 1 1/8", Gr 5

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

4

388208R92

VALVE

ASSY, pilot relief, for components see list of parts under details of pilot relief valve, units A, C, E, G, H, K, M, P, R, S and U, relief valve inner

1шт.

5

362796R1

O-RING,0.924" ID x 0.103" Width

15/16 x 1-1/8 x 3/32, units A, C, E, G, H, H, K, M, P, R, S and U

1шт.

6

364879R1

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

7/8 x 1-1/6 x 3/32, relief valve outer, units A, C, E, G, H, K, M, P, R, S and U

1шт.

7

378985R2

BACK-UP RING

relief valve o-ring back-up, units A, C, E, G, H, K, M, P, R, S and U

1шт.

8

391922R1

PLUG

regulator port, units A, C, E, G, H, K, M, P, R, S and U

1шт.

9

307915R1

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1-15/32 x 1-11/16 x 7/64, regulator port plug, units A, C, E, G, H, K, M, P, R, S and U

1шт.

10

389164R11

NO LONGER SERVICED

BASE ASSY, auxiliary valve inner handle

1шт.

Q875

HEADED PIN,3/8" x 1 5/16"

PIN, 3/8 x 1-5/16 headed

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

11

383267R92

VALVE

ASSY, hydraulic control, for units H thru V, for components see list of parts under details of hydraulic control valve

1шт.

20846R1

BOLT,Hex, 3/8" - 16 x 4 5/8", Gr 8

SCREW, 3/8-16 x 4-5/8 hex-hd cap

3шт.

12

381884R1

O-RING,0.103" Thk x 0.987" ID, -120, Cl 6, 90 Duro

1 x 1-3/16 x 3/32, open center valve small, 2 per valve

1шт.

13

381885R1

O-RING,0.103" Thk x 1.362" ID, -126, Cl 6, 90 Duro

1-3/8 x 1-9/16 x 3/32, open center valve large, 1 per valve

1шт.

14

389166R12

BASE

ASSY, auxiliary valve outer handle, units H thru V

1шт.

15

384111R91

SUPPORT

ASSY, double control lever tube inner

1шт.

413-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

SCREW, 3/8-16 x 1/3/8 hex-hd cap

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

16

383234R1

BUSHING,11.14mm ID x 12.71mm OD x 6.35mm L

control lever shaft

1шт.

17

383233R1

BUSHING,19.15mm ID x 20.65mm OD x 9.65mm L

control lever tube

1шт.

18

383235R21

BRACKET

SUPPORT ASSY, control lever

1шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

3шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

19

383236R1

BUSHING,19.15mm ID x 20.65mm OD x 25.4mm L

control lever outer

1шт.

20

390826R92

VALVE

ASSY, hydraulic control, for components see list of parts under details of hydraulic control valve

1шт.

20846R1

BOLT,Hex, 3/8" - 16 x 4 5/8", Gr 8

SCREW, 3/8-16 x 4-5/8 hex-hd cap

3шт.

21

389165R1

SHAFT

HANDLE, auxiliary valve control inner

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd cap

1шт.

22

383243R91

ARM

ASSY, valve operating outer, units H thru V

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

Q875

HEADED PIN,3/8" x 1 5/16"

PIN, 3/8 x 1-5/16 headed

1шт.

364437R1

PIN,3/16" x 7/8", Coiled

1шт.

23

384112R11

DRIVE ASSY.

ACTUATOR ASSY, valve spool

2шт.

24

398433R1

TUBE

ASSY, right rear lift, units H thru V

1шт.

25

401758R1

WASHER,14.48mm ID x 38.1mm OD x 3.05mm Thk

dust plug, 2 for units A thru G, 4 for units H, J, M, R, S and T, 8 for units K, L, P, Q, U and V

1шт.

26

9410978

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8-14 C-Z 37 deg hydraulic flared tube adj str thd 90 deg right rear lift tube, units H thru V

1шт.

27

398428R1

TUBE

ASSY, right front manifold, units K, L, P, Q, U and N

1шт.

179847

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

28

374083R92

VALVE

ASSY, double acting check, 1 for units C, D, E, and F, 2 for units H, J, K, L, M, N, P, Q and R, for components see list of parts under details of double acting check valve

1шт.

186285

BOLT,Hex, 3/8" - 16 x 4", Gr 5

2шт.

179847

BOLT,Hex, 3/8" - 16 x 2", Gr 5

Units H, J, M and N Hex, 3/8"-16 x 2", G5

2шт.

95-11041

WASHER,3/8"

(13/32 x 13/16 x .065) 3/8"

2шт.

102635

NUT,3/8"-16, G5

2шт.

186283

BOLT,Hex, 3/8" - 16 x 3 1/2", Gr 5

SCREW, 3/8-16 x 3-1/2 hex-hd cap, units K, L, P and Q

2шт.

29

371357R91

ELBOW

check valve, 2 for unit C and D, 4 for units H, J, K and L

4шт.

30

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32, units H thru V

2шт.

31

398426R1

TUBE

ASSY, right rear drop, units H thru V

1шт.

32

9410204

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR, 7/8-14 37 deg C-Z hyd flared tube short swivel, units H thru V

1шт.

33

378169R1

SCREW,Hex, 7/8" - 14 x 1.62"

PLUG, rear tube inlet union short, 2 per valve

1шт.

34

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32, manifold lift pipe union plug small, 2 per valve

1шт.

35

384376R1

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

15/16 x 1-1/16 x 1/16, manifold lift pipe union plug large, 2 per valve

4шт.

36

9403256

FITTING,Blkhd, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree

UNION, 5/8 tube bulk hd, units K, L, P, Q, U and V

4шт.

37

9403295

BHD LOCK NUT,Blkhd, 7/8"-14

NUT, 5/8 tube bulk hd union lock, units K, L, P, Q, U and V

4шт.

38

398432R1

ANGLE, front outlet bracket, units K, L, P, Q, U and V

2шт.

15002R1

BOLT, CARRIAGE, Short NK, 3/8"-16 x 7/8", G2, Full Thd Short NK, 3/8"-16 x 7/8", G2, Full Thd

4шт.

102635

NUT,3/8"-16, G5

4шт.

39

398435R1

TUBE

ASSY, left manifold, units K, L, P, Q, U and V

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd cap

2шт.

40

371114R1

CLAMP

FRAME, self-sealing coupling RH, 1 for units E and F, 2 for units M, N, P, Q and R

1шт.

41

371115R1

CLAMP

self-sealing coupling, 1 for units E and F, 2 for units M, N, P, Q and R

2шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2 per clamp Hex, 1/4"-20 x 3/4", G5, Full Thd

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , 2 per clamp 1/4"

1шт.

42

402316R1

SUPPORT

BRACKET, self-sealing coupling frame LH, units E, F, M, N, P, Q and R

1шт.

271559

HOOD,Hex, 5/8" - 11 x 1 5/8", Gr 5

SCREW, 5/8-11 x 1-5/8 hex-hd cap

1шт.

570879R1

BOLT,Hex, 5/8" - 11 x 2 1/4", Gr 8

SCREW, 5/8-11 x 2-1/4 hex-hd cap type 4, unit F and N

1шт.

20065R1

BOLT,Hex, 5/8" - 11 x 2 1/2", Gr 8

SCREW, 5/8-11 x 2-1/2 hex-hd cap type 4, unit F and N

1шт.

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

21/32 x 1-5/16 x .095 plain

2шт.

42

398478R1

BRACE, self-sealing coupling frame, unit R

1шт.

180083

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

SCREW, 5/16-18 x 1-1/2 hex-hd cap

2шт.

180172

BOLT,Hex, 1/2" - 13 x 7/8", Gr 5

SCREW, 1/2-13 x 7/8 hex-hd cap

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

43

402317R1

BRACKET, self-sealing coupling RH, units M, N, P and Q

1шт.

271559

HOOD,Hex, 5/8" - 11 x 1 5/8", Gr 5

SCREW, 5/8-11 x 1-5/8 hex-hd cap

1шт.

570879R1

BOLT,Hex, 5/8" - 11 x 2 1/4", Gr 8

SCREW, 5/8-11 x 2-1/4 hex-hd cap type 4, unit N

1шт.

20065R1

BOLT,Hex, 5/8" - 11 x 2 1/2", Gr 8

SCREW, 5/8-11 x 2-1/2 hex-hd cap type 4, unit N

1шт.

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

21/32 x 1-5/16 x .095 plain

2шт.

43

398478R1

BRACE, self-sealing coupling, unit R

1шт.

180083

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

SCREW, 5/16-18 x 1-1/2 hex-hd cap

1шт.

44

402318R1

ARM

self-sealing coupling frame, 1 for units E and F, 2 for units M, N, P and Q

1шт.

180083

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

SCREW, 5/16-18 x 1-1/2 C-Z hex-hd cap

4шт.

12653R1

BOLT (SPREADER),Short NK, 1/4"-20 x 3/4", G2

BOLT, CARRIAGE, Short NK, 1/4"-20 x 3/4", G2

4шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

45

402226R1

HOSE ASSY.

HOSE ASSY, breakaway upper LH, units E, F, M, N, P and Q

1шт.

45

398485R1

HOSE ASSY.

HOSE ASSY, remote control upper, unit R

1шт.

46

402227R1

HOSE

ASSY, breakaway lower LH, units E, F, M, N, P and Q

1шт.

46

398486R1

HOSE ASSY.

HOSE ASSY, remote control lower, unit R

1шт.

47

402224R1

HOSE ASSY.

HOSE ASSY, breakaway upper RH, units M, N, P and Q

1шт.

47

398485R1

HOSE ASSY.

HOSE ASSY, remote control upper, unit R

1шт.

48

402225R1

HOSE

ASSY, breakaway lower RH, units M, N, P and Q

1шт.

48

398486R1

HOSE ASSY.

HOSE ASSY, remote control lower, unit R

1шт.

49

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32, units M, N, P, Q and R

8шт.

50

398424R1

BAR, left tube manifold block cap, units A thru H, M, N, R, S and T

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd cap

2шт.

51

252707R1

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

3/4 x 15/16 x 3/32, manifold block cap

2шт.

52

395150R91

COUPLING, QUICK, FEM

COUPLING ASSY, hyd self-sealing, female, 2 for units A thru G, 4 for units H, J, M, N, R, S and T, 8 for units K, L, P, O, U and V

1шт.

53

401757R11

PLUG

ASSY, coupling dust, 2 for units A thru G, 4 for units H, J, M, N, R, S and T, 8 for units K, L, P, Q, U and V

1шт.

54

9410204

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR, 7/8-14 37 deg C-Z hyd flared tube short swivel, 2 for units A, B, C and D, 4 for units H, J, K, L, S, T, U and V

1шт.

55

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32, 4 for units A, B, C and D, 8 for units A, B, C and D, 8 for units H, J, K, L, S, T, U and V, 12 for units M & N

1шт.

56

20641R1

SCREW

5/16-18 x 1-3/8 hex-hd mach, adjusting screw, 1 for units A thru G, 2 for units H thru V

2шт.

114502

JAM NUT,Jam, 5/16"-18, G5

2шт.

57

398420R1

MANIFOLD

ASSY, left rear

1шт.

102635

NUT,3/8"-16, G5

2шт.

179847

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

58

379794R1

O-RING,0.103" Thk x 1.237" ID, -124, Cl 5, 75 Duro

1-1/4 x 1-7/16 x 3/32, 2 for units C, D, E, F, U and V, 4 for units H, J, M, N and R, 6 for units K, L, P and Q

1шт.

59

389168R1

KNOB

auxiliary valve control handle, 1 for units A thru G, 2 for units H thru V

1шт.

60

(Not used in this application)

1шт.

61

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32, 4 used units H, J, M and N, 12 used on units K, L, P, Q, U and V

1шт.

62

389167R1

LEVER

HANDLE, auxiliary valve control outer, unit H thru V

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd cap

1шт.

63

398425R1

ANGLE

BRACKET, left rear manifold

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

95-11041

WASHER,3/8"

(13/32 x 13/16 x .065) 3/8"

2шт.

395149R1

QUICK MALE COUPLING

COUPLING ASSY, hyd self-sealing male, 2 for units A thru G, 4 for units H, J, M, N, R, S and T, 8 for units K, L, P, Q, U and V

1шт.

Case coupler A177478 will work as a replacement for 395147R91.

1шт.
