(F-16[A]) - HYDRAULIC SYSTEM, ROCKSHAFT ARMS, TRACTORS WITH DRAFT CONTROL OR DRAFT SENSING

Запчасти Case IH 1256 (F-16[A]) - HYDRAULIC SYSTEM, ROCKSHAFT ARMS, TRACTORS WITH DRAFT CONTROL OR DRAFT SENSING (07) - HYDRAULIC SYSTEM

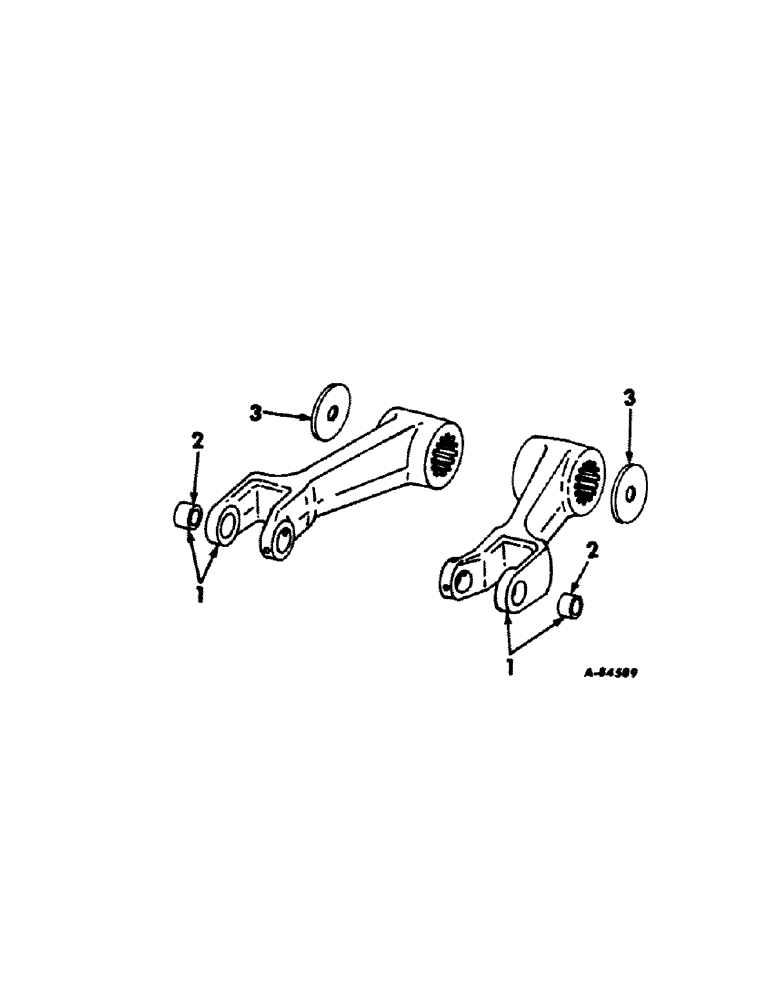

Схема запчастей Case IH 1256 - (F-16[A]) - HYDRAULIC SYSTEM, ROCKSHAFT ARMS, TRACTORS WITH DRAFT CONTROL OR DRAFT SENSING (07) - HYDRAULIC SYSTEM
2
1
1
3
2
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

392147R11

ARM

ASSY, rockshaft

2шт.

2

392992R2

BUSHING,22.15mm ID x 34.87mm OD x 22.86mm L

rockshaft arm

2шт.

3

388574R1

WASHER,16.51mm ID x 82.55mm OD x 4.78mm Thk

rockshaft arm retainer

2шт.

Выбрано товаров: 3
