Артикул
Название
Примечание
Количество

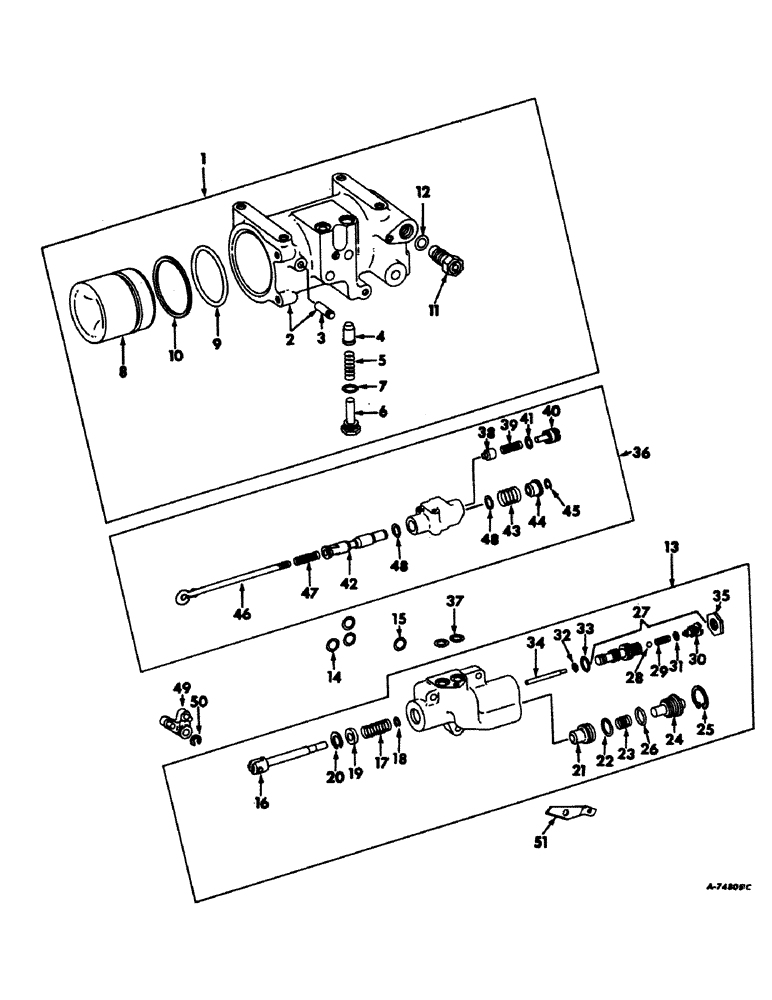

391908R92
CYLINDER & VALVE ASSY, draft control
1шт.
1
391909R91
CYLINDER
ASSY, draft control
1шт.
2
382597R21
CYLINDER BLOCK
CYLINDER ASSY, draft control
1шт.
3
382598R1
LARGE PIN
PIN, drop retarding lever
1шт.
4
385555R1
LOCK VALVE
POPPET, check valve
1шт.
5
385556R1
VALVE SPRING
SPRING, check valve
1шт.
6
385557R11
PLUG
ASSY, check valve
1шт.
7
364885R1
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
for 5/8 OD tubing, check valve plug
1шт.
8
397229R1
PISTON
ASSY, draft control
1шт.
9
382604R1
O-RING,4.35" ID x 0.21" Width
draft control piston
1шт.
10
382605R1
WASHER
WASHER, draft control piston o-ring backup
1шт.
11
391906R91
LOCK VALVE
VALVE ASSY, poppet relief
1шт.
12
380839R1
O-RING,0.103" Thk x 0.862" ID, -118, Cl 6, 90 Duro
poppet relief valve
1шт.
13
394445R92
NO LONGER SERVICED
VALVE ASSY, draft control
1шт.
NLS
NO LONGER SERVICED
2шт.
179847
BOLT,Hex, 3/8" - 16 x 2", Gr 5
1шт.
103321
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
3шт.
14
387926R2
RING
valve to cylinder small seal
3шт.
15
388591R1
RING
valve to cylinder large seal
1шт.
16
382610R11
ROD
ACTUATOR ASSY, valve spool
1шт.
17
376758R1
SPRING
valve spool
1шт.
18
376771R1
RING, SNAP
RING, actuator retaining
1шт.
19
376759R1
RETAINER
PLUG, spool bore
1шт.
20
303322R1
SNAP RING,1.00", Int, #100
Spool bore plug 1.00", Int, #100
1шт.
21
382612R2
VALVE, drop poppet
1шт.
22
346959R1
O-RING,0.103" Thk x 1.049" ID, -121, Cl 6, 90 Duro
1-1/6 x 1-1/4 x 3/32, drop poppet valve
1шт.
23
372649R1
SPRING
drop poppet valve
1шт.
24
382613R1
PLUG
drop poppet valve
1шт.
25
273026R1
SNAP RING,1.375", Int, #137
Ring, Snap, , drop poppet valve plug 1.375", Int, #137
1шт.
26
391733R1
O-RING,0.07" Thk x 1.114" ID, -24, Cl 6, 90 Duro
1-1/8 x 1-1/4 x 1/16, drop poppet valve plug
1шт.
27
391911R11
SEAT/SLOT
SEAT ASSY, drop valve adjustable
1шт.
28
17006R1
BALL
3/16 cr-stl
1шт.
29
376765R1
SPRING
drop valve ball
1шт.
30
382616R1
SCREW,5/16" - 24 x 0.618"
PLUG, drop valve spring
1шт.
31
369375R1
O-RING,0.064" Thk x 0.239" ID, -902, Cl 6, 90 Duro
15/64 x 23/64 x 1/16
1шт.
32
3067183R1
O-RING,0.103" Thk x 0.424" ID, -11, Cl 6, 90 Duro
7/16 x 5/8 x 3/32 drop valve adj seat, inner
1шт.
33
391912R1
O-RING,0.737" ID x 0.103" Width
3/4 x 15/16 x 3/32 drop valve adj seat, outer
1шт.
34
382617R1
ROD
drop valve actuating
1шт.
35
382618R1
NUT
drop valve adj seat
1шт.
36
391913R91
VALVE
ASSY, drop control
1шт.
NLS
NO LONGER SERVICED
1/4-20 x 1-1/2 hex-soc-hd cap
1шт.
179806
BOLT,Hex, 1/4" - 20 x 2 1/4", Gr 5
SCREW, 1/4-20 x 2-1/4 hex-hd cap
1шт.
103319
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
1шт.
37
350667R1
O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro
11/16 x 7/8 x 3/32, drop control valve
2шт.
38
PISTON, drop control valve, not serviced separately, order valve assy, 391913R91
1шт.
39
SPRING, drop control valve, not serviced separately, order valve assy, 391913R91
1шт.
40
PLUG ASSY, spring retainer, not serviced separately, order valve assy, 391913R91
1шт.
41
O-RING, 7/16 x 9/16 x 1/16, not serviced separately, order valve assy, 391913R91
1шт.
42
SPOOL, variable orifice, not serviced separately, order valve assy, 391913R91
1шт.
43
382626R1
SPRING
spool return
1шт.
44
384053R1
BUSHING
drop control valve
1шт.
45
384052R1
SNAP RING,#43, .337" Dia, E-Type
Ring, Retaining, , spool #43, .337" Dia, E-Type
1шт.
46
386006R1
ROD
spool actuating
1шт.
18411R1
NUT,#10-32, GB
no. 10-32 elastic stop
1шт.
446160
WASHER,#10
7/32 x 7/16 x .049
1шт.
47
53393D
SPRING
spool actuating rod
1шт.
48
(Not used in this application)
1шт.
49
382629R11
LEVER
BELLCRANK ASSY, drop control valve
1шт.
103361
PIN, SPLIT (COTTER)
PIN, 1/16 x 1/2 cot.
1шт.
446169
WIRE CONNECTOR,Female, 6 Pole
15/64 x 17/32 x .049
1шт.
50
384052R1
SNAP RING,#43, .337" Dia, E-Type
Ring, Retaining, , drop control valve bellcrank #43, .337" Dia, E-Type
1шт.
51
387414R1
ANCHOR
spring
1шт.
103321
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
1шт.
401361R91
STRIPPER PACKAGE
PACKAGE, draft control o-ring service
1шт.
Consists of (1) o-ring 364885R1, (1) o-ring 382604R1, (1) washer 382605R1, (1) o-ring 380839R1, (5) ring seal 387926R2, (1) ring seal 388591R1, (1) o-ring 346959R1, (1) o-ring 391733R1, (1) o-ring 369375R1, (1) o-ring 3067183R1, (1) o-ring 391912R1, (2) o-ring 350667R1, (2) o-ring 606271C1
1шт.
Выбрано товаров: 65
