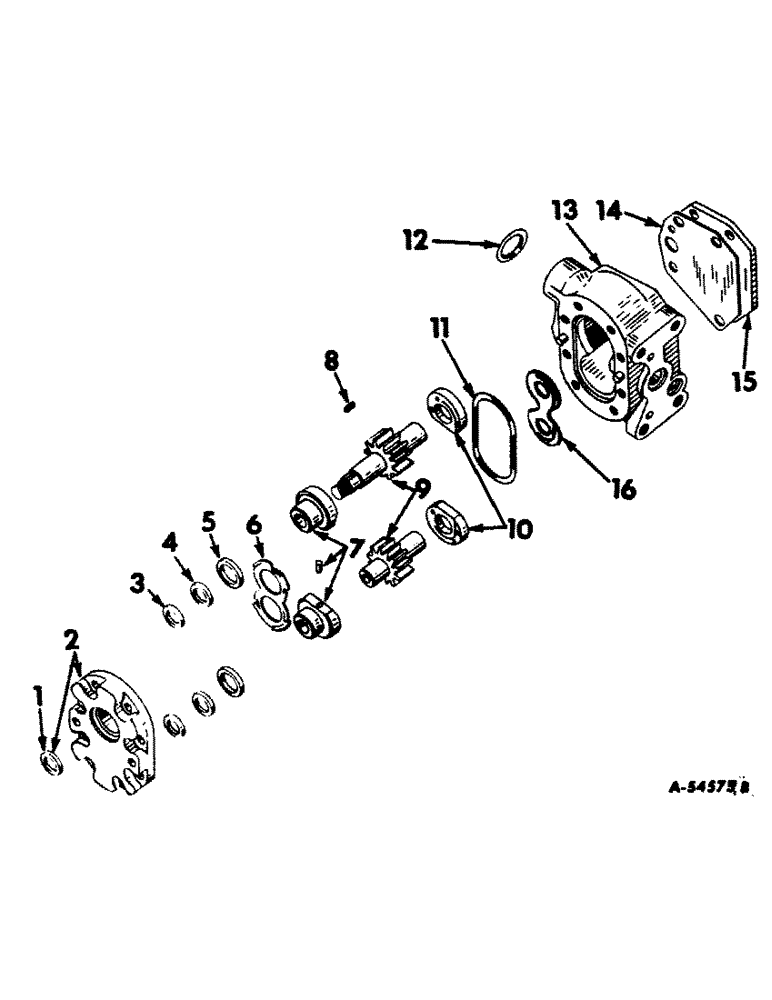

Запчасти Case IH 1256 (F-10) - HYDRAULIC SYSTEM, HYDRAULIC PUMP, THOMPSON, 12 GPM (07) - HYDRAULIC SYSTEM

374483R95

HYDRAULIC PUMP

PUMP ASSY, hydraulic, 12 gpm, optional with 373964R93

1шт.

1

373157R91

OIL SEAL

SEAL, pump shaft oil

1шт.

2

COVER ASSY, pump, not serviced separately order pump assy, 374483R95, includes screws

1шт.

380617R1

SCREW, 12 point cap

8шт.

3

WASHER, back-up, not serviced separately order package, 371549R93

2шт.

4

O-RING, pressure bearing, not serviced separately order package, 371549R93

2шт.

5

374543R1

RETAINER

pressure bearing o-ring

2шт.

6

371530R1

SPRING

pressure plate

1шт.

7

PACKAGE, pressure bearing, not serviced separately order pump assy, 374483R95

1шт.

8

370942R1

KEY

5/32 x 13/32 sq parallel

1шт.

9

371804R91

PACKAGE, drive and driven gear

1шт.

10

PACKAGE, body bearing, not serviced separately order pump assy, 374483R95

1шт.

19501R1

SCREW, 6-32 x 1 hex, soc, hd cap

6шт.

11

O-RING, pump cover, not serviced separately order package, 371549R93

1шт.

12

252483R1

O-RING,-218, 70 Duro, 1.234" ID x .139" Thk

1-1/4 x 1-1/2 x 1/8, suction port

1шт.

13

BODY W/BEARINGS, pump, not serviced separately order pump assy, 374483R95

1шт.

14

GASKET, implement pump rear cover, not serviced separately order package, 371549R93

1шт.

15

371532R1

COVER, implement pump rear

1шт.

16

383664R1

LARGE PLATE

PLATE, body wear

1шт.

371549R93

PACKAGE

hydraulic pump o-ring and gasket service

1шт.

Consists of (1) gasket 371547R1 (NSS), (1) oil seal 373157R91, (1) o-ring 252483R1, (1) o-ring 252739R1, (1) o-ring 254091R1 (NSS), (1) o-ring 254691R1, (2) o-ring 372764R1 (NSS), (1) o-ring 352221R1, (2) washer 371548R1 (NSS), (2) washer 374541R1 (NSS).

1шт.
