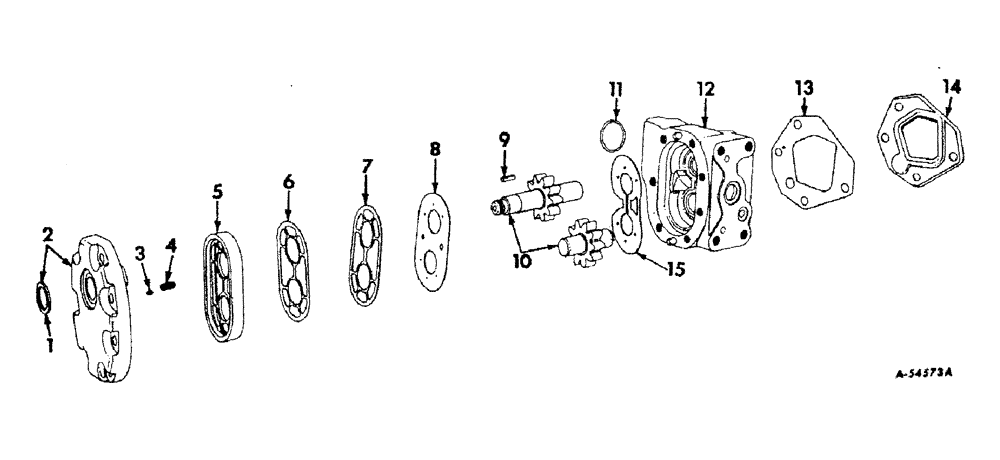

Запчасти Case IH 1256 (F-09) - HYDRAULIC SYSTEM, HYDRAULIC PUMP, CESSNA, 12 GPM (07) - HYDRAULIC SYSTEM

373964R94

PUMP

ASSY, hydraulic, 12 gpm, optional with 374483R95

1шт.

1949296C1

REMAN-HYD PUMP

Remanufactured HYDRAULIC PUMP

1шт.

1949297C1

CORE-HYDRAULIC PUMP

Return Number

1шт.

1

373244R91

SEAL

SEAL, pump shaft oil

1шт.

1949297C1

CORE-HYDRAULIC PUMP

Return No HYDRAULIC PUMP - for N.A. Only

1шт.

2

COVER ASSY, pump, not serviced separately order pump assy, 373964R94

1шт.

3

16007R1

BALL

7/32 cr-stl

1шт.

4

383663R1

VALVE SPRING

SPRING, ball check

1шт.

5

SEAL, diaphragm, not serviced separately order o-ring and gasket package

1шт.

6

GASKET, protector, not serviced separately order o-ring and gasket package

1шт.

7

GASKET, back-up, not serviced separately order o-ring and gasket package

1шт.

8

DIAPHRAGM, pressure, not serviced separately order o-ring and gasket package

1шт.

9

370942R1

KEY

5/32 x 13/32 sq, parallel

1шт.

10

PACKAGE, drive and driven gear, not serviced separately order pump assy, 373964R94

1шт.

11

252483R1

O-RING,-218, 70 Duro, 1.234" ID x .139" Thk

1-1/4 x 1-1/2 x 1/8, suction port

1шт.

12

BODY W/BUSHINGS, pump, not serviced separately order pump assy, 373964R94

1шт.

13

GASKET, implement pump rear cover, not serviced separately order o-ring and gasket package

1шт.

14

371524R1

LARGE PLATE

COVER, implement pump rear

1шт.

15

DIAPHRAGM, body, not serviced separately order o-ring and gasket package

1шт.

373969R94

GASKET KIT

PACKAGE, hydraulic pump o-ring and gasket service

1шт.

Consists of (1) diaphram 3871555R2 (NSS), (1) diaphram 397824R91 (NSS), (1) gasket 371558R1 (NSS), (1) gasket 371559R1 (NSS), (1) gasket 371560R1 (NSS), (1) oil seal 373244R91, (1) o-ring 252483R1, (1) o-ring 252739R1, (1) o-ring 254691R1, (1) o-ring 352221R1, (1) seal 371556R1 (NSS)

1шт.
