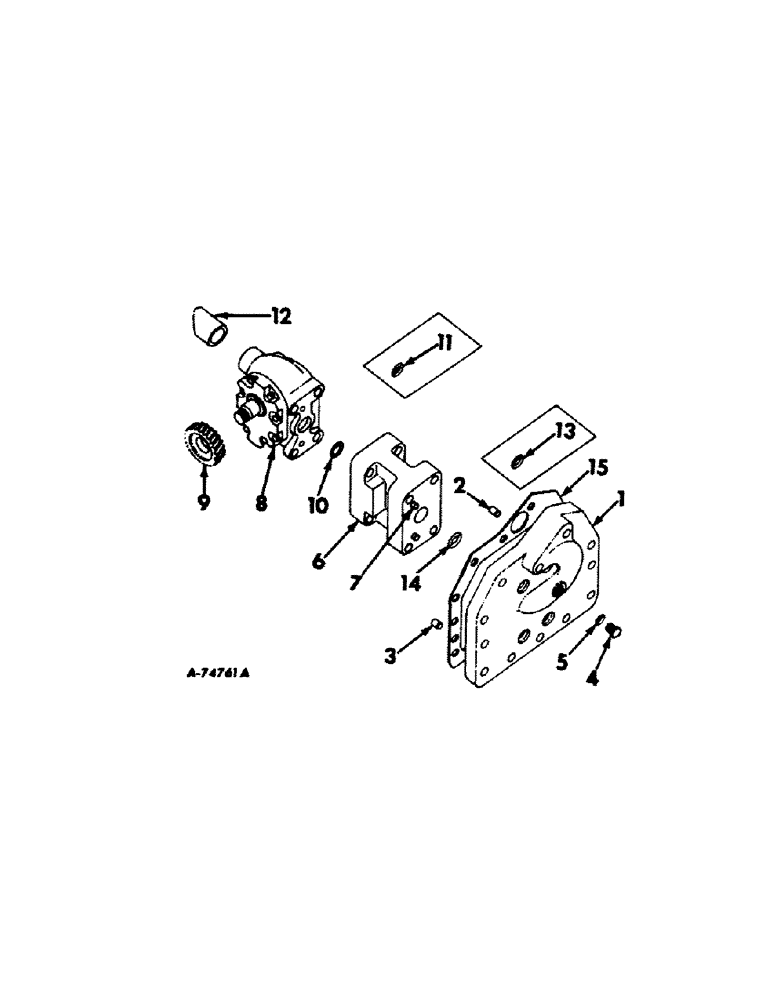

Запчасти Case IH 1256 (F-07) - HYDRAULIC SYSTEM, HYDRAULIC POWER SUPPLY, IN REAR FRAME (07) - HYDRAULIC SYSTEM

1

387348R11

FLANGE ASSY, pump mounting

1шт.

413-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

3/8-16 x 1-3/8 hex-hd cap

10шт.

179847

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

12шт.

2

20031R1

DOWEL,3/8" x 5/8"

PIN, 3/8 x 5/8 dowel

2шт.

3

19954R1

DOWEL,5/16" x 5/8"

PIN, 5/16 x 5/8 dowel

2шт.

4

9410358

PLUG

9/16-18 cd or zn-pltd hyd str thd, pump mounting flange

1шт.

5

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, for 3/8 tube, pump mounting flange plug

1шт.

6

382753R11

SPACER

ASSY, hyd pump

1шт.

7

384115R1

PIN, hydraulic pump dowel

2шт.

8

373964R94

PUMP

ASSY, hydraulic gear, 12 gpm, Cessna, for components see list of parts under details of hydraulic pump, optional with 374483R95

1шт.

8

1949296C1

REMAN-HYD PUMP

Remanufactured HYDRAULIC PUMP

1шт.

8

1949297C1

CORE-HYDRAULIC PUMP

Return No HYDRAULIC PUMP

1шт.

8

374483R95

HYDRAULIC PUMP

PUMP ASSY, hydraulic gear, 12 GPM, Thompson, for components see list of parts under details of hydraulic pump, optional with 373964R93

1шт.

52999D

WASHER

GASKET, pump mounting bolt

4шт.

16252R1

SCREW, 7/16-14 x 4-3/4 hex-hd cap Hex, 7/16"-14 x 4 3/4", G5

4шт.

9

382754R2

GEAR

hyd pump drive 23T, includes nut

1шт.

19263R1

LOCK NUT,Hex, 5/8" - 18

NUT, 5/8-18 ESNA elastic stop

1шт.

10

254691R1

O-RING,-211, 70 Duro, .796" ID x .139" Thk

13/16 x 1-1/16 x 1/8, pump pressure port, large

1шт.

11

(Not used in this application)

1шт.

12

382755R1

TUBE

pump suction

1шт.

13

(Not used in this application)

1шт.

14

381884R1

O-RING,0.103" Thk x 0.987" ID, -120, Cl 6, 90 Duro

1 x 1-3/16 x 3/32, pressure port, large

2шт.

15

382244R1

GASKET

pump mounting flange

1шт.

606749R91

OIL SEAL

pump suction tube oil

1шт.
