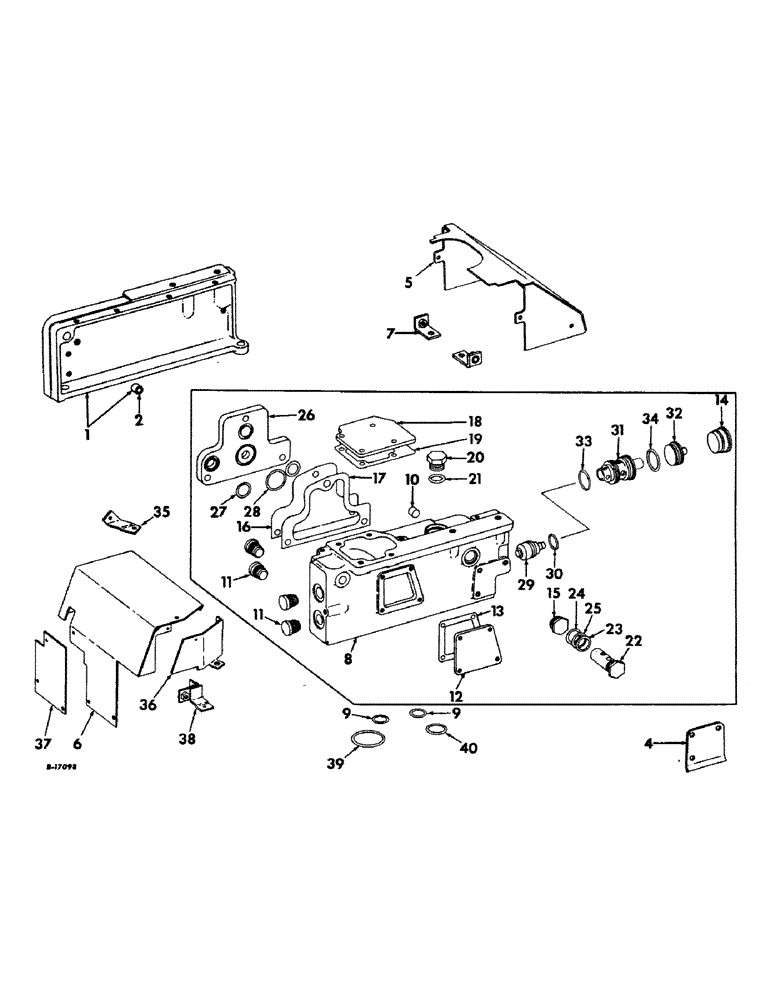

Запчасти Case IH 1256 (F-03) - HYDRAULIC SYSTEM, SEAT SUPPORTS AND HYDRAULIC COMPONENTS (07) - HYDRAULIC SYSTEM

1

382912R11

SUPPORT ASSY, LH seat

1шт.

179885

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

2

382913R1

BUSHING, seat support

1шт.

3

399603R91

SUPPORT ASSY, RH seat, tractors without draft control or auxiliary valves, composed of ref. nos. 8, 10 thru 14, 15 thru 20 and attaching hardware

1шт.

3

399604R91

SUPPORT ASSY, RH seat, tractors with draft control, composed of ref. nos. 8, 10 thru 13, 20 thru 34 and attaching hardware

1шт.

3

399606R91

SUPPORT ASSY, seat and hydraulic component RH, tractors with auxilary valves and power supply, composed of ref. nos. 8, 12, 13, 18 thru 25, 32, 33, 34 and attaching hardware

1шт.

279991R1

SCREW

W/PELLET INSERT, 1/2-13 x 1-1/2 hex-hd cap

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd cap

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

4

382919R1

COVER, auxiliary valve handle support pad

1шт.

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

3шт.

5

398013R1

COVER ASSY, seat support, front

1шт.

180014

SCREW,Hex, 1/4" - 20 x 3/8", Gr 5, Full Thd

1/4-20 x 3/8 cd or zn-pltd hex-hd cap

6шт.

6

398015R1

COVER, seat support rear

1шт.

180014

SCREW,Hex, 1/4" - 20 x 3/8", Gr 5, Full Thd

1/4-20 x 3/8 cd or zn-pltd hex-hd cap

2шт.

7

383176R11

CLIP ASSY, seat support front cover mounting

2шт.

179813

BOLT,Hex, 5/16" - 18 x 9/16", Gr 5

2шт.

8

399609R11

SUPPORT

W/PLUG, 444660RH seat, tractors equipped w/hydraulic power supply attachment

1шт.

9

381884R1

O-RING,0.103" Thk x 0.987" ID, -120, Cl 6, 90 Duro

1 x 1-3/16 x 3/32, hyd component housing small, tractors equipped w/hydraulic power supply attachment

1шт.

10

444660

DRAIN PLUG,Sq Soc, 3/8"-18 NPTF

PLUG, 3/8-18 auto sq-soc pipe

1шт.

11

1017989R1

PLUG

7/8-14 self aligning

4шт.

12

382790R1

PLATE, access hole

1шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

4шт.

13

382791R1

GASKET

access hole plate

1шт.

14

1017971R1

PLUG, plastic tapered

1шт.

15

379144R1

PLUG, hyd transfer block

2шт.

16

382920R1

COVER, auxiliary valve mounting pad

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

3шт.

17

382921R1

GASKET AUXILIARY VALVE MOUNTING PAD COVER

1шт.

18

382918R1

COVER, hyd quadrant support opening

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

19

382793R1

GASKET

quadrant support opening cover

1шт.

20

9410361

PLUG

1-1/16-12 C-Z str thd, o-ring boss, tractors with draft control or auxiliary valves

1шт.

21

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

for 3/4 OD tube, check valve port plug, tractors with draft control or auxiliary valves

1шт.

22

388208R92

VALVE

ASSY, auxiliary relief, for components see list of parts under details of pilot relief valve, tractors with draft control or auxiliary valves

1шт.

23

364879R1

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

7/8 x 1-1/6 x 3/32, relief valve outer, tractors with draft control or auxiliary valves

2шт.

24

362796R1

O-RING,0.924" ID x 0.103" Width

15/16 x 1-1/8 x 3/32, relief valve inner, tractors with draft control or auxiliary valves

2шт.

25

378985R2

BACK-UP RING

relief valve inner o-ring backup, tractors with draft control or auxiliary valves

1шт.

26

376023R3

COVER

control valve end, tractors with draft control, includes screws

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

SCREW, 3/8-16 x 1-1/8 hex-hd cap

3шт.

27

381884R1

O-RING,0.103" Thk x 0.987" ID, -120, Cl 6, 90 Duro

valve end cover, small, tractors with draft control

2шт.

28

381885R1

O-RING,0.103" Thk x 1.362" ID, -126, Cl 6, 90 Duro

valve end cover, large, tractors with draft control

1шт.

29

376762R11

PISTON ASSY.

PISTON ASSY, unloading valve, tractors with draft control

1шт.

30

352024R2

O-RING,0.551" ID x 0.07" Width

unloading valve piston, tractors with draft control

1шт.

31

391920R91

SEAT

ASSY, unloading valve, tractors with draft control

1шт.

32

391922R1

PLUG

regulator port, tractors with draft control or auxiliary valves

1шт.

33

391923R1

O-RING,0.103" Thk x 1.299" ID, -125, Cl 6, 90 Duro

1-5/16 x 1-1/2 x 3/32, carrier inner, tractors with draft control

1шт.

34

307915R1

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1-15/32 x 1-11/16 x 7/64, carrier outer, tractors with draft control or auxiliary valves

1шт.

35

398102R1

BRACKET ASSY, rear cover mounting

1шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

36

398104R1

PLATE, end RH seat support cover

1шт.

127976

SHAFT

SCREW, 12-11 x 1/2 C-Z slt, pan-hd tap

2шт.

37

398105R1

COVER PLATE, seat support rear

1шт.

127976

SHAFT

SCREW, 12-11 x 1/2 C-Z slt, pan-hd tap

2шт.

180014

SCREW,Hex, 1/4" - 20 x 3/8", Gr 5, Full Thd

1/4-20 x 3/8 C-Z hex-hd cap

1шт.

180074

BOLT,Hex, 5/16" - 18 x 9/16", Gr 5

SCREW, 5/16-18 x 9/16 C-Z hex-hd cap

2шт.

38

399120R1

BRACKET ASSY, seat support rear cover mounting

1шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

39

384377R1

O-RING,0.103" Thk x 2.55" ID, -141, Cl 6, 90 Duro

2-5/16 x 2-1/2 x 3/32, hyd component housing large

1шт.

40

386867R1

O-RING,0.103" Thk x 1.11" ID, -122, Cl 6, 90 Duro

1-1/8 x 1-5/16 x 3/32, hyd component housing

1шт.

41

381884R1

O-RING,0.103" Thk x 0.987" ID, -120, Cl 6, 90 Duro

1 x 1-3/16 x 3/32, hyd component housing

2шт.
