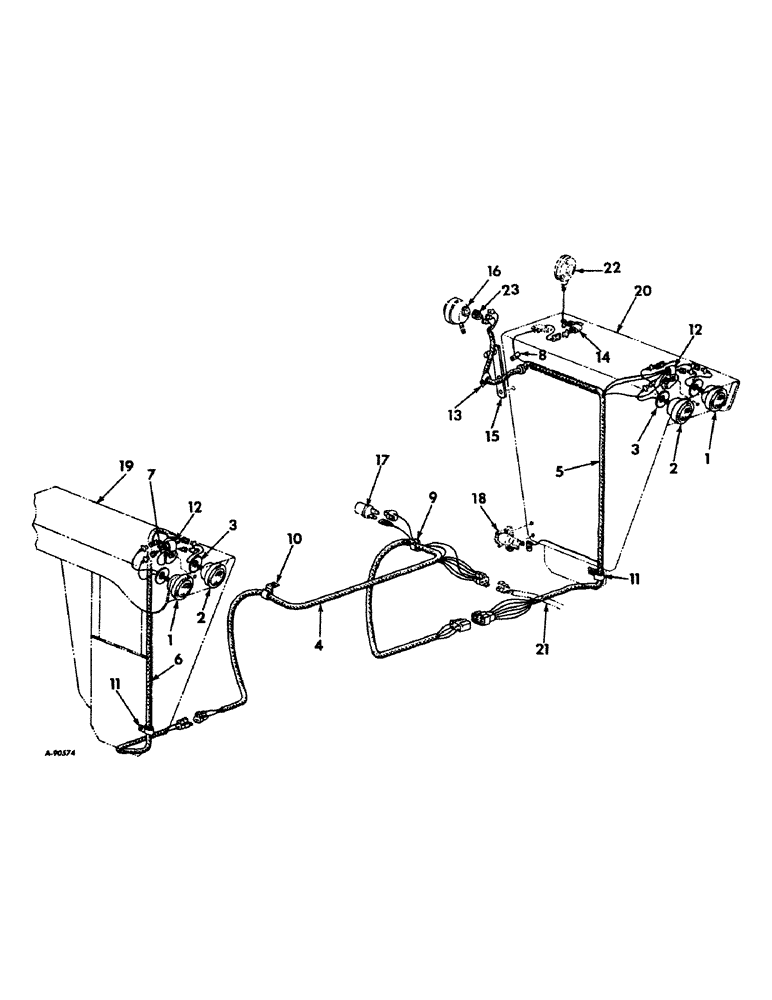

Запчасти Case IH 1256 (G-13) - ELECTRICAL SYSTEM, ELECTRIC WIRING FOR DELUXE FLAT TOP FENDERS, FARMALL TRACTORS (06) - ELECTRICAL SYSTEMS

399325R91

PARTS ACCESSORY, deluxe fenders with adjustable lights, for sheet metal components refer to deluxe flat top fenders w/adj headlights listing, section A

1шт.

1

388945R91

HEADLIGHT

LIGHT ASSY, only serviceable items are sealed beam unit, 373662R91 and rubber retainer, 676078R1

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

2

388946R91

LIGHT

ASSY, flood, only serviceable items are sealed beam unit, 390756R91 and rubber retainer, 676078R1

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

3

388947R1

RETAINER

head light

4шт.

4

405287R1

HARNESS

ASSY, fender main

1шт.

5

405876R1

HARNESS

CABLE ASSY, LH fender lighting, replaces 399344R1

1шт.

128157

GROMMET,3/8" ID x 27/32" x .062", Diag Cut

combination rear light

1шт.

6

388949R91

HARNESS

CABLE ASSY, fender lighting

1шт.

7

404393R1

CABLE

ASSY, head light to ground junction

2шт.

8

358986R1

CABLE CLIP

CLIP, flashing light cable, on light mounting stud, not included in parts accessory

1шт.

9

383622R1

CLIP

lighting cable harness, on rear frame cover front mounting bolt

1шт.

10

384558R1

CLIP

lighting cable harness, on rear frame cover 3rd mounting bolt from front LH & RH side (2), on LH & RH axle carrier top front mounting bolt (2)

4шт.

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

21/32 x 1-5/16 x .095

2шт.

11

363660R1

CLIP

lighting cable harness, twisted, on torque amplifier handle support bracket bottom front bolt

1шт.

12

362121R1

CLIP

fender lighting cable, on LH & RH headlight panel

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

SCREW, 1/4-20 x 1/2 C-Z hex-hd cap

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

13

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, lighting cable harness, short, on rear frame cover LH front mounting bolt

1шт.

179814

SPACER

2шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex.

2шт.

14

366460R1

CABLE CLIP

CLIP, fender lighting cable, short, on LH & RH fender support front mounting bolt

2шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex.

2шт.

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

2шт.

15

382407R11

BAR

BRACKET ASSY, rear light

1шт.

179835

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

2шт.

95-11041

WASHER,3/8"

(13/32 x 13/16 x .065) 3/8"

2шт.

102635

NUT,3/8"-16, G5

12шт.

16

LIGHT ASSY, combination rear, refer to starting and lighting listing this section

1шт.

17

FLASHER ASSY, refer to starting and lighting listing, this section

1шт.

18

SOCKET ASSY, breakaway connector, refer to starting and lighting listing, this section

1шт.

19

FENDER ASSY,RH, refer to deluxe fenders listing, section A

1шт.

20

FENDER ASSY, LH, refer to deluxe fenders listing, section A

1шт.

21

HARNESS ASSY, rear main cable, refer to starting and lighting listing, this section

1шт.

22

LIGHT ASSY, flasher warning, refer to starting and lighting listing, this section

1шт.

23

377105R1

CONNECTOR, ELEC

CONNECTOR, combination rear light

1шт.

106653

FUSE

cartridge type AGC-20

1шт.
