(G-12) - ELECTRICAL SYSTEM, AIR CLEANER SWITCH AND CONNECTIONS

Запчасти Case IH 1256 (G-12) - ELECTRICAL SYSTEM, AIR CLEANER SWITCH AND CONNECTIONS (06) - ELECTRICAL SYSTEMS

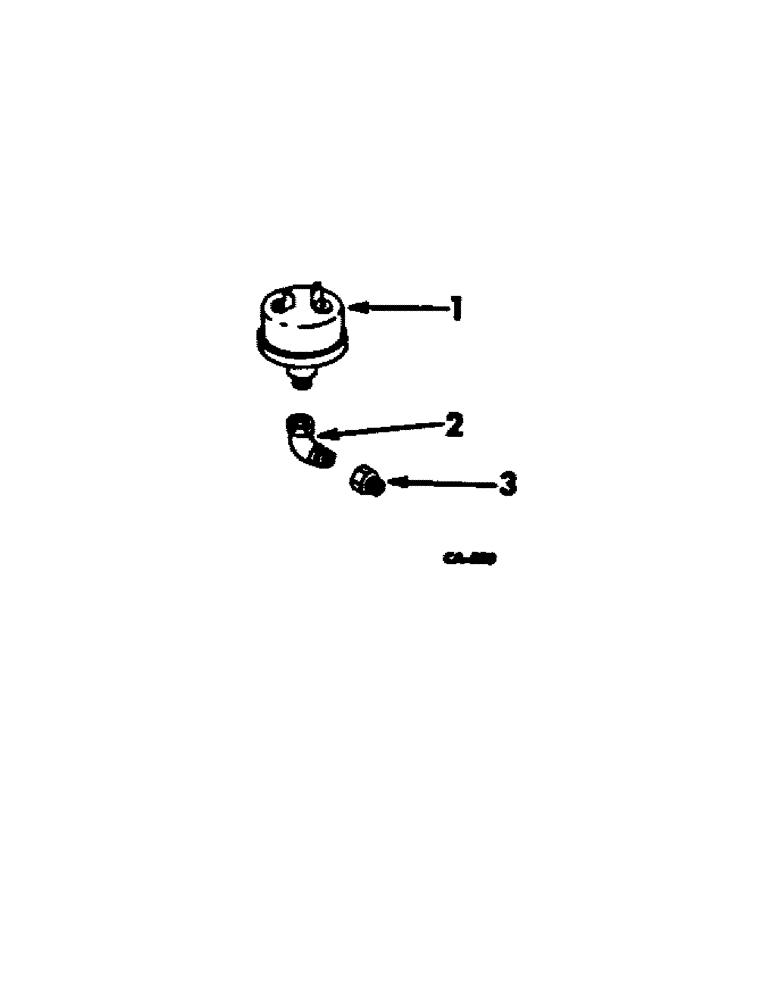

Схема запчастей Case IH 1256 - (G-12) - ELECTRICAL SYSTEM, AIR CLEANER SWITCH AND CONNECTIONS (06) - ELECTRICAL SYSTEMS
1
2
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

389682R91

SWITCH

electric air cleaner vacuum

1шт.

2

444162

ELBOW

1/8-27 90 deg auto. pipe street, optional w/444163

1шт.

2

444163

ELBOW

1/8-27 brs 90 deg auto. pipe street, optional w/444162

1шт.

3

389908R91

ADAPTER

ASSY, vacuum switch

1шт.
