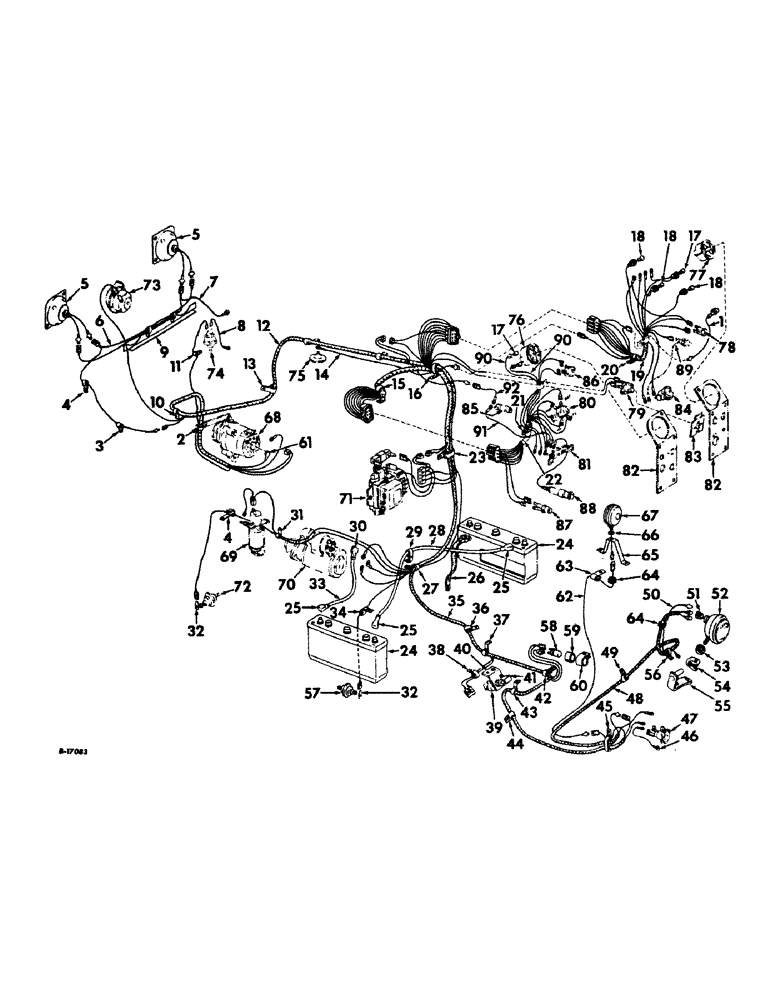

Запчасти Case IH 1256 (G-09) - ELECTRICAL SYSTEM, STARTING AND LIGHTING, INTERNATIONAL TRACTORS (06) - ELECTRICAL SYSTEMS

1

397946R1

LIGHT

ASSY, gear selector

1шт.

2

362123R1

CLIP

front main harness large

1шт.

2

362126R1

CLIP

front main harness, long

1шт.

3

366460R1

CABLE CLIP

CLIP, headlight cable

1шт.

179812

GEAR

SCREW, 5/16-18 x 1/2 hex-hd cap

1шт.

95-11034

WASHER,1/4"

11/32 x 11/16 x .065

1шт.

4

384556R1

CLAMP

CLIP, transmission oil pressure switch

1шт.

5

387730R91

LIGHT

ASSY, shock proof head, only serviceable items are sealed beam unit, 373662R91 and retainer, 676078R1, includes spacers and screws

2шт.

387731R1

SPACER, head light

6шт.

156327

SCREW, 1/4-20 x 1-1/4 C-Z cr-rec flat-hd mach

6шт.

6

405238R1

CABLE ASSY, harness to head light junction, will work for 396500R1

1шт.

7

405229R1

CABLE

ASSY, head light, Serial Range: junction-ground

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

SCREW, 5/16-18 x 1/2 hex-hd cap

1шт.

95-11034

WASHER,1/4"

11/32 x 11/16 x .065

1шт.

8

405211R1

CABLE PULLING GRIP

CABLE ASSY, vacuum, Serial Range: switch-ground

1шт.

9

383857R21

BRACE ASSY, head light mounting

1шт.

10

362123R1

CLIP

front main harness large

1шт.

11

366460R1

CABLE CLIP

CLIP, head lamp cable

1шт.

12

405281R1

HARNESS ASSY, main cable front

1шт.

13

399657R1

CLIP

front main harness

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex.

1шт.

14

404400R1

CABLE

ASSY, fuel gauge sending unit to multiple connector

1шт.

15

370383R1

CLIP

rear cable harness, on steering & rear selector support LH front mounting bolt

1шт.

16

362666R1

CLIP

front & rear main harness double

1шт.

17

9417863

BULB,C2F, #1895, 14V

LAMP, no. 1895 12 volt, tachometer & gauge cluster

2шт.

18

9412348

BULB,C2B, #257, 14V

LAMP, no. 257 12 volt, oil & amp tellite flasher

3шт.

19

405275R1

WIRE HARNESS

HARNESS ASSY, panel cable RH

1шт.

20

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, RH panel harness

1шт.

21

384557R1

CLIP

LH panel harness

1шт.

22

405274R1

HARNESS

ASSY, panel cable LH, will work for 398923R1

1шт.

23

363117R1

CLIP

front & rear main harness

1шт.

179789

BOLT,Hex, 1/4" - 20 x 3/8", Gr 5, Full Thd

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

24

399056R1

BATTERY, prestolite 1419X, 6 volt, Serial Range: -8450

2шт.

24

392244R91

BATTERY, prestolite 1303X, 6 volt, Start Serial: 8451

2шт.

25

383619R1

COVER

battery cable terminal, large

1шт.

26

378760R91

CABLE

STRAP ASSY, Serial Range: battery-ground

1шт.

95-11041

WASHER,3/8"

(13/32 x 13/16 x .065) 3/8"

1шт.

27

401275R1

CLIP, rear main harness large

1шт.

28

383617R91

CABLE

ASSY, Serial Range: battery-battery

1шт.

356062R91

BOLT

ASSY, battery cable

2шт.

29

370383R1

CLIP

battery to battery cable

1шт.

30

364910R1

BOOT

COVER, battery terminal

1шт.

31

365524R1

CLAMP

CLIP, engine oil pressure switch cable

1шт.

179875

BOLT,Hex, 1/2" - 13 x 1/2", Gr 5

SCREW, 1/2-13 x 1/2 hex-hd cap

1шт.

11002VA

WASHER

17/32 x 7/8 x 16 ga

1шт.

32

384396R1

SPADE TERMINAL,Male

TERMINAL, oil pressure switch

2шт.

33

383726R91

CABLE

ASSY, battery to solenoid switch

1шт.

356062R91

BOLT

ASSY, battery cable

1шт.

34

384556R1

CLAMP

CLIP, transmission oil pressure switch cable, on gear selector LH support front mounting bolt

1шт.

35

398931R1

HARNESS ASSY, rear main cable, Serial Range: -8459

1шт.

35

405878R2

HARNESS

ASSY, rear main cable, Start Serial: 8460

1шт.

36

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, rear main harness

1шт.

37

383622R1

CLIP

rear main harness short

2шт.

38

366460R1

CABLE CLIP

CLIP, safety switch cable

1шт.

39

382728R91

SWITCH

safety starting

1шт.

40

384045R1

SUPPORT

BRACKET, safety starting switch

1шт.

14991R1

BOLT

3/8-16 x 5/8 short sq-nk crg

1шт.

102635

NUT,3/8"-16, G5

1шт.

41

384046R1

STEM

ROD, safety switch

1шт.

16558R1

WASHER

17/64 x 5/8 x .065

1шт.

103361

PIN, SPLIT (COTTER)

PIN, 1/16 x 1/2 cotter

1шт.

42

383622R1

CLIP

rear main harness short

1шт.

43

384559R1

CLIP

rear main cable harness

1шт.

44

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, rear main cable harness

4шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 C-Z hex-hd cap

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

45

362666R1

CLIP

rear main harness double, Serial Range: -8459

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

46

377119R91

CABLE ASSY, breakaway connector, Serial Range: socket-ground

1шт.

47

362002R92

SOCKET

ASSY, electrical breakaway

1шт.

64022H

SCREW, 8-32 x 5/16 C-Z slt, fil, hd mach

2шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

2шт.

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

SCREW, 1/4-20 x 1/2 C-Z hex-hd cap

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

48

383614R92

CABLE ASSY, breakaway connector socket to rear light, Serial Range: -8459

1шт.

48

405881R1

CABLE ASSY, rear light, Start Serial: 8460

1шт.

49

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, breakaway connector socket cable to rear light

1шт.

50

405211R1

CABLE PULLING GRIP

CABLE ASSY, combination, Serial Range: light-ground

1шт.

51

377105R1

CONNECTOR, ELEC

CONNECTOR, combination rear light

1шт.

52

387729R91

LIGHT

ASSY, combination rear & tail, only serviceable items are sealed beam unit, 371461R91 & lamp, 455490

1шт.

102637

NUT,1/2"-13, G5

1шт.

53

365503R1

SPACER

combination rear light

1шт.

54

350920R1

CLAMP

combination rear light

1шт.

55

372355R11

SUPPORT

ASSY, combination rear light

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

180125

SCREW,Hex, 3/8" - 16 x 1 3/8", Gr 5

3/8-16 x 1-3/8 znd hex-hd cap

2шт.

56

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, breakaway connector socket cable to rear light

1шт.

57

376855R92

SWITCH

transmission oil pressure

1шт.

58

394132R91

FLASHER UNIT

FLASHER, safety warning light

1шт.

59

394134R1

SEAL

ABSORBER, flasher mounting

1шт.

60

394133R1

FASTENER

BRACKET, flasher mounting

1шт.

61

399470R1

BOOT

INSULATOR, terminal cover boot

1шт.

62

405218R1

CABLE ASSY, flashing safety warning light

1шт.

63

362667R1

CLIP

flashing safety light cable

1шт.

64

144227

SPIDER, REEL

2шт.

65

394337R1

BRACKET, flashing light

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

180118

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

SCREW, 3/8-16 x 5/8 znd hex-hd cap

2шт.

120394

WASHER,3/8", SAE

WASHER, 13/32 x 13/16 x .065 C-Z

2шт.

66

394262R1

WASHER

GASKET, flashing warning light

1шт.

67

394129R91

LIGHT

ASSY, flashing warning, serviceable items are lamp, 9417866 lens, guide, 396585R1 amber or lens, dietz, 899280R1 amber or lens, guide, 397442R1 red or lens, dietz, 899279R1 red

1шт.

120371

NUT,1/2"-20, G5

1шт.

135629

GATHERING CHAIN

1/2 C-Z ext-tooth lock

1шт.

68

ALTERNATOR GENERATOR, refer to alternator generator listing, this section

1шт.

69

ETHER STARTING, refer to ether starting listing, section E

1шт.

70

CRANKING MOTOR, refer to cranking motor listing, this section

1шт.

71

REGULATOR, refer to alternator generator and connections listing, this section

1шт.

72

OIL PRESSURE, refer to crankcase and related parts listing, section D

1шт.

73

HORN, refer to electric horn listing, this section

1шт.

74

AIR CLEANER INDICATOR SWITCH, refer to air cleaner and connections listing, section E

1шт.

75

FUEL SENDING UNIT, refer to fuel tank supports and piping listing, section E

1шт.

76

SPEEDOMETER, tachometer, refer to engine controls and instruments listing, section H

1шт.

77

GAUGE CLUSTER, refer to engine controls & instruments listing, section H

1шт.

78

KEY SWITCH, refer to engine controls & instruments listing, section H

1шт.

79

ETHER STARTING SWITCH, refer to engine controls and instruments listing, section H

1шт.

80

LIGHTING SWITCH, refer to engine controls and instruments listing, section H

1шт.

81

JUNCTION BLOCK, refer to engine control and instruments listing, section H

1шт.

82

INSTRUMENT PANELS, refer to engine controls and instruments listing, section H

1шт.

83

ETHER STARTING PANEL, refer to engine controls and instruments listing, section H

1шт.

84

AIR CLEANER INDICATOR, refer to engine controls and instruments listing, section H

1шт.

85

HORN BUTTON SWITCH, refer to engine controls and instruments listing, section H

1шт.

86

PUSH BUTTON SWITCH, refer to engine controls and instruments listing, P section H

1шт.

87

FUSE HOLDER, refer to engine controls and instruments listing, section H

1шт.

88

CIGARETTE LIGHTER, refer to engine controls and instruments listing, section H

1шт.

89

LIGHT ASSY, transmission engine oil pressure, refer to engine controls and instruments listing, section H

1шт.

90

383620R91

ELECTRICAL WIRE

SOCKET ASSY, tachometer light

2шт.

91

405212R1

HARNESS

CABLE ASSY, horn switch to junction block

1шт.

92

405221R1

CABLE

ASSY, horn switch to harness junction

1шт.

366460R1

CABLE CLIP

CLIP, horn cable, includes screw and washer

1шт.

179812

GEAR

SCREW, 5/16-18 x 1/2 hex-hd cap

1шт.

95-11034

WASHER,1/4"

11/32 x 11/16 x .065

1шт.

404395R1

CABLE

ASSY, breakaway connection socket to ground, Start Serial: 8460

1шт.

405895R1

CABLE ASSY, harness junction to breakaway connector socket, Start Serial: 8460

1шт.

395228R1

CABLE CLIP

CLIP, breakaway connector cable, Start Serial: 8460

1шт.

405885R91

PARTS ACCESSORY, breakaway connector socket, consists of (10 cable 404395R1, (1) cable 405895R1, (1) clip 395228R1, (2) screw 64022H, (2) screw 180016, (1) socket 362002R92, (2) washer 120380, (2) washer 121841, Start Serial: 8460

1шт.
