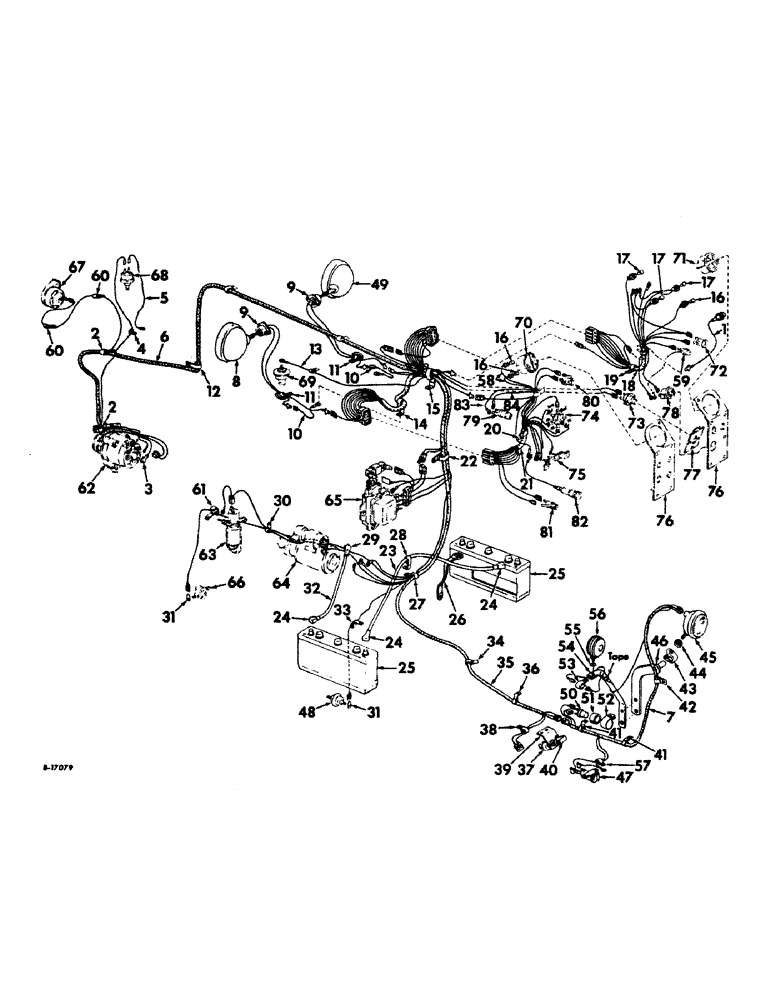

Запчасти Case IH 1256 (G-06) - ELECTRICAL SYSTEM, STARTING AND LIGHTING, FARMALL TRACTORS (06) - ELECTRICAL SYSTEMS

1

397946R1

LIGHT

ASSY, gear selector

1шт.

2

362123R1

CLIP

front main harness large

2шт.

2

362126R1

CLIP

front main harness, long

1шт.

3

399470R1

BOOT

INSULATOR, terminal cover boot

1шт.

4

366460R1

CABLE CLIP

CLIP, vacuum switch cable, on air cleaner RH bracket front mounting bolt

1шт.

5

405211R1

CABLE PULLING GRIP

CABLE ASSY, vacuum, Serial Range: switch-ground

1шт.

6

405279R1

HARNESS

ASSY, main cable front

1шт.

7

398926R1

HARNESS

ASSY, combination and flashing lights, Serial Range: -13326

1шт.

7

405880R1

HARNESS

ASSY, combination and flashing lights, Start Serial: 13327

1шт.

8

387728R91

LIGHT

ASSY, sealed beam head, LH, only serviceable item is sealed beam unit, 371443R91

1шт.

120371

NUT,1/2"-20, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

495-11053

WASHER,1/2", SAE

17/32 x 1-1/6 x .095 C-Z

1шт.

9

382406R1

SUPPORT

BRACKET, head light mounting

2шт.

113911

SCREW, 5/16-18 x 1/2 slt, F-HD mach

4шт.

10

405209R1

CABLE

ASSY, head light to ground junction

2шт.

11

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, head light cable

2шт.

12

399657R1

CLIP

front main harness, angle long

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex.

1шт.

13

404400R1

CABLE

ASSY, fuel gauge sending unit to multiple connector

1шт.

14

370383R1

CLIP

rear main harness angle

1шт.

15

362666R1

CLIP

front & rear main harness double

1шт.

16

9417863

BULB,C2F, #1895, 14V

LAMP, no. 1895 12 volt, tachometer & gauge cluster

4шт.

17

9412348

BULB,C2B, #257, 14V

LAMP, no. 257 12 volt, oil & amp tellite flasher

2шт.

18

405275R1

WIRE HARNESS

HARNESS ASSY, panel cable RH

1шт.

19

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, RH panel harness

1шт.

20

384557R1

CLIP

LH panel harness

1шт.

21

405274R1

HARNESS

ASSY, panel cable LH

1шт.

22

363117R1

CLIP

front & rear main cable harness

1шт.

179789

BOLT,Hex, 1/4" - 20 x 3/8", Gr 5, Full Thd

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

23

383617R91

CABLE

ASSY, Serial Range: battery-battery

1шт.

356062R91

BOLT

ASSY, terminal

2шт.

24

383619R1

COVER

battery cable terminal

1шт.

25

399056R1

BATTERY, prestolite 1419X, 6 volt, Serial Range: -13175

2шт.

25

392244R91

BATTERY, prestolite 1303X, 6 volt, Start Serial: 13176

2шт.

26

378760R91

CABLE

STRAP ASSY, Serial Range: battery-ground

1шт.

95-11041

WASHER,3/8"

(13/32 x 13/16 x .065) 3/8"

1шт.

27

401275R1

CLIP, rear main harness large

1шт.

28

370383R1

CLIP

battery to battery cable

1шт.

29

364910R1

BOOT

COVER, battery terminal

1шт.

30

365524R1

CLAMP

CLIP, engine oil pressure switch cable & ether push button switch cable

1шт.

11002VA

WASHER

17/32 x 7/8 x 16 ga

1шт.

179875

BOLT,Hex, 1/2" - 13 x 1/2", Gr 5

SCREW, 1/2-13 x 1/2 hex-hd cap

1шт.

31

384396R1

SPADE TERMINAL,Male

TERMINAL, oil pressure switch straight

2шт.

32

383726R91

CABLE

ASSY, battery to solenoid switch

1шт.

356062R91

BOLT

ASSY, terminal

1шт.

33

384556R1

CLAMP

CLIP, transmission oil pressure switch cable

1шт.

34

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, rear main harness

1шт.

35

405293R2

HARNESS

ASSY, rear main cable

1шт.

36

383622R1

CLIP

rear main harness short

3шт.

37

382728R91

SWITCH

safety starting

1шт.

38

384554R1

CLIP

safety switch cable

1шт.

39

384045R1

SUPPORT

BRACKET, safety starting switch

1шт.

14991R1

BOLT

3/8-16 x 5/8 short sq-nk crg

1шт.

102635

NUT,3/8"-16, G5

1шт.

40

384046R1

STEM

ROD, safety starting switch

1шт.

NLS

NO LONGER SERVICED

PIN, 1/16 x 1/2 cot.

1шт.

16558R1

WASHER

17/64 x 5/8 x .065

1шт.

41

383622R1

CLIP

rear main harness short

2шт.

42

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, rear main harness

2шт.

43

350920R1

CLAMP

combination rear light

1шт.

44

365503R1

SPACER

combination rear light

1шт.

45

387729R91

LIGHT

ASSY, combination rear & tail, only serviceable items are sealed beam unit, 371461R91 & lamp 455490

1шт.

NLS

NO LONGER SERVICED

2шт.

102637

NUT,1/2"-13, G5

1шт.

46

397479R11

SUPPORT

BRACE ASSY, rear light bracket

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd cap

2шт.

47

362002R92

SOCKET

ASSY, breakaway connector

1шт.

64022H

SCREW, 8/32 x 5/16 C-Z slt, fil, hd mach

2шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

2шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

SCREW, 1/4-20 x 1/2 znd hex-hd cap, 2 on International tractors and Farmall tractors w/deluxe fenders

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

48

376855R92

SWITCH

ASSY, transmission oil pressure

1шт.

49

387728R91

LIGHT

sealed beam head, RH, only serviceable item is sealed beam unit, 371443R91

1шт.

120371

NUT,1/2"-20, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

495-11053

WASHER,1/2", SAE

17/32 x 1-1/16 x .095 C-Z

1шт.

50

394132R91

FLASHER UNIT

FLASHER, safety warning light

1шт.

51

394134R1

SEAL

ABSORBER, flasher mounting

1шт.

52

394133R1

FASTENER

BRACKET, flasher mounting

1шт.

53

358986R1

CABLE CLIP

CLIP, cable

1шт.

54

394135R1

BRACE, flashing warning mounting

1шт.

55

394262R1

WASHER

GASKET, flashing warning light

1шт.

56

394129R91

LIGHT

ASSY, flashing warning, serviceable items are lamp, 9417866 lens, guide, 396585R1 amber or lens, dietz, 899280R1 amber or lens, guide, 397442R1 red or lens, dietz, 896279R1

1шт.

120371

NUT,1/2"-20, G5

1шт.

493-41052

LOCK WASHER,Ext Tooth, 1/2"

1/2 C-Z ext-tooth lock

1шт.

57

395228R1

CABLE CLIP

CLIP, breakaway connector cable

1шт.

58

383620R91

ELECTRICAL WIRE

SOCKET ASSY, tachometer light

2шт.

59

LIGHT ASSY, transmission oil pressure, refer to engine controls and instruments listing, section H

1шт.

60

366460R1

CABLE CLIP

CLIP, horn cable

2шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

SCREW, 5/16-18 x 1/2 hex-hd cap

1шт.

95-11034

WASHER,1/4"

11/32 x 11/16 x .065

1шт.

61

384556R1

CLAMP

CLIP, transmission oil pressure switch

1шт.

62

ALTERNATOR GENERATOR, refer to alternator generator listing, this section

1шт.

63

ETHER STARTING, refer to ether starting listing, section E

1шт.

64

CRANKING MOTOR, refer to cranking motor listing, this section

1шт.

65

REGULATOR, refer to alternator generator and connections listing, this section

1шт.

66

OIL PRESSURE SWITCH, refer to crankcase and related parts listing, section D

1шт.

67

HORN, refer to electric horn listing, this section

1шт.

68

AIR CLEANER INDICATOR SWITCH, refer to air cleaner and connections listing, section E

1шт.

69

FUEL SENDING UNIT, refer to fuel tank supports and piping listing, section E

1шт.

70

SPEEDOMETER, tachometer, refer to engine controls and instruments listing, section H

1шт.

71

GAUGE CLUSTER, refer to engine controls & instruments listing, section H

1шт.

72

KEY SWITCH, refer to engine controls & instruments listing, section H

1шт.

73

ETHER STARTING SWITCH, refer to engine controls and instruments listing, section H

1шт.

74

LIGHTING SWITCH, refer to engine controls and instruments listing, section H

1шт.

75

JUNCTION BLOCK, refer to engine controls and instruments listing, section H

1шт.

76

INSTRUMENT PANELS, refer to engine controls and instruments listing, section H

1шт.

77

ETHER STARTING PANEL, refer to engine controls and instruments listing, section H

1шт.

78

AIR CLEANER INDICATOR, refer to engine controls and instruments listing, section H

1шт.

79

HORN BUTTON SWITCH, refer to engine controls and instruments listing, section H

1шт.

80

PUSH BUTTON SWITCH, refer to engine controls and instruments listing, section H

1шт.

81

FUSE HOLDER, refer to engine controls & instruments listing, section H

1шт.

82

CIGARETTE LIGHTER, refer to engine controls and instruments listing, section H

1шт.

83

405212R1

HARNESS

CABLE ASSY, horn switch to junction block

1шт.

84

405221R1

CABLE

ASSY, horn switch to harness junction

1шт.

404395R1

CABLE

ASSY, breakaway connector socket to ground, Start Serial: 13327

1шт.

405889R1

CABLE PULLING GRIP

CABLE ASSY, harness junction to breakaway connector socket, tractors not equipped w/deluxe fender att, Start Serial: 13327

1шт.

405877R1

HARNESS

CABLE ASSY, harness junction to breakaway connector socket, tractors equipped w/deluxe fenders or cab attachments, Start Serial: 13327

1шт.

395228R1

CABLE CLIP

CLIP, breakaway connector cable, without deluxe fenders, Start Serial: 13327

1шт.

405883R91

PARTS ACCESSORY, breakaway connector socket, without deluxe fenders, Start Serial: 13327

1шт.

Consists of (1) cable 404395R1, (1) cable 405889R1, (1) clip 395228R1, (2) nut 120375, (2) screw 64022H, (2) screw 180020, (1) socket 362002R92, (2) washer 120380, (2) washer 12841

1шт.

405884R91

PARTS ACCESSORY, breakaway connector socket, with deluxe fenders or cab, Start Serial: 13327

1шт.

Consists of (1) cable 404395R1, (1) cable 405877R1, (2) nut 120375, (2) screw 18860R1, (2) screw 64022H, (1) socket 362002R92, (2) spacer 8719H, (2) washer 120380, (2) washer 121841

1шт.
