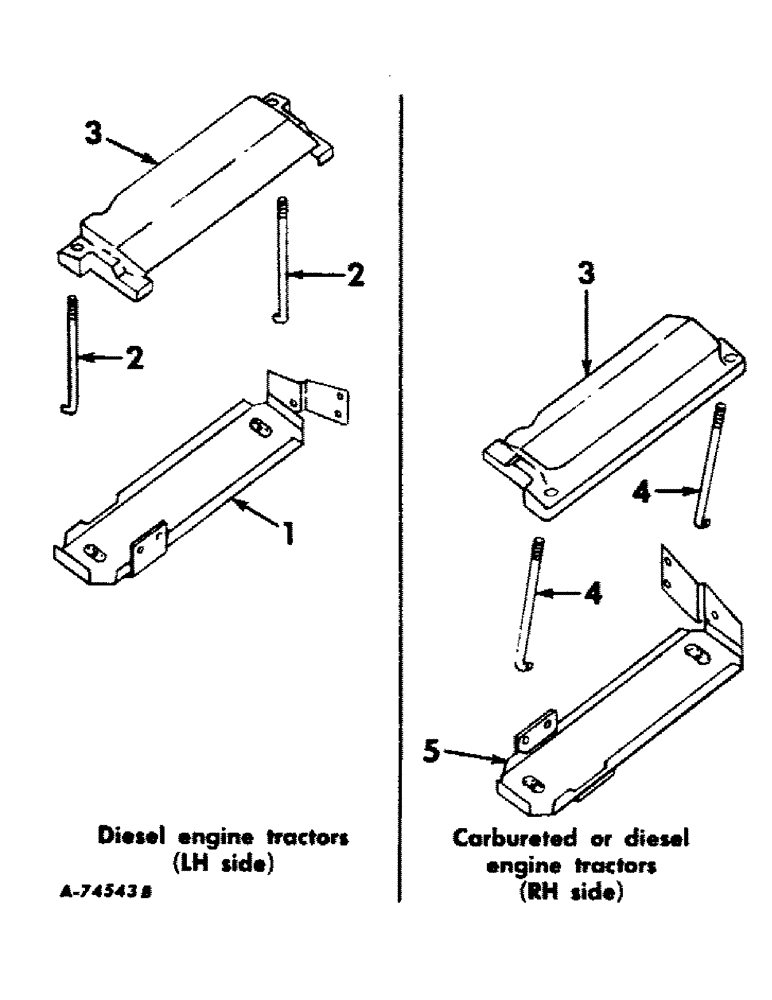

Запчасти Case IH 1256 (G-05) - ELECTRICAL SYSTEM, BATTERY TRAY (06) - ELECTRICAL SYSTEMS

1

399046R2

TRAY ASSY, battery LH, Farmall tractors, Serial Range: -13175

1шт.

1

399046R2

TRAY ASSY, battery LH, International tractors, Serial Range: -8450

1шт.

1

399048R1

TRAY

ASSY, battery LH, Farmall tractors, Start Serial: 13176

1шт.

1

399048R1

TRAY

ASSY, battery LH, International tractors, Start Serial: 8451

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

NLS

NO LONGER SERVICED

2шт.

179843

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

1шт.

95-11041

WASHER,3/8"

(13/32 x 13/16 x .065) 3/8"

1шт.

2

377837R1

ROD

battery hold down

2шт.

7500032

BUSHING

NUT, 5/16-18 wing, Farmall tractors

2шт.

120376

NUT,5/16"-18, G5

International tractors 5/16"-18, G5

2шт.

120393

BEARING WASHER,5/16", SAE

WASHER, 11/32 x 11/16 x .065

2шт.

3

380415R11

COVER

ASSY, battery

2шт.

4

377837R1

ROD

battery hold down

2шт.

142745

NUT, WING

NUT, 5/16-18 wing, Farmall tractors

2шт.

120376

NUT,5/16"-18, G5

International tractors 5/16"-18, G5

2шт.

120393

BEARING WASHER,5/16", SAE

WASHER, 11/32 x 11/16 x .065

2шт.

5

399047R1

TRAY ASSY, battery RH, Farmall tractors, Serial Range: -13175

1шт.

5

399047R1

TRAY ASSY, battery RH, International tractors, Serial Range: -8450

1шт.

5

399055R1

TRAY

ASSY, battery RH, Farmall tractors, Start Serial: 8451

1шт.

5

399055R1

TRAY

ASSY, battery RH, International tractors, Start Serial: 8451

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

311979R1

SCREW

3/8-16 x 7/8 hex-hd cap nylock

1шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

95-11041

WASHER,3/8"

(13/32 x 13/16 x .065) 3/8"

1шт.
