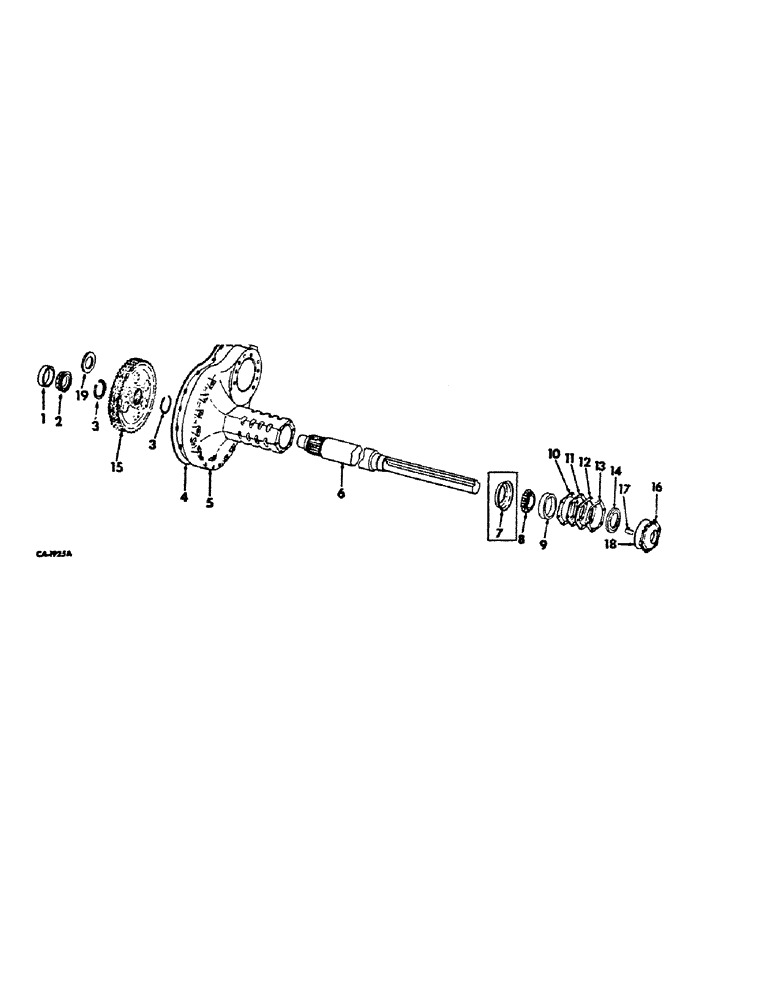

Запчасти Case IH 1066 (07-47) - DRIVE TRAIN, REAR AXLE AND CONNECTIONS, 766, 966 AND 1066 HYDROSTATIC AND HYDRO 100 TRACTORS (04) - Drive Train

1

ST985

CUP

BEARING, rear axle inner cup

2шт.

2

ST2110

ROLLER BEARING,66.67mm ID x 38.35mm W

BEARING ASSY, rear axle inner cone

2шт.

3

380220R1

SNAP RING,#362, 3.423, Ext

RING, bull gear retainer snap, 766 & 966 tractors and 1066 hydrostatic drive and hydro 100 tractors

4шт.

3

380220R1

SNAP RING,#362, 3.423, Ext

RING, bull gear retainer snap, 1066 gear drive tractors

2шт.

4

380225R1

GASKET

rear axle carrier

2шт.

5

380224R5

AXLE CARRIER

CARRIER, rear axle

2шт.

271568

PIPE FITTING,Hex, 5/8" - 11 x 3 1/2", Gr 5

SCREW, 5/8-11 x 3-1/2 hex-hd cap

28шт.

271571

SEALING RING COLLAR

5/8-11 x 4-1/4 hex-hd cap

8шт.

6

535664R2

AXLE

rear, 100 in. tread, all 766 & 966 tractors and 1066 hydrostatic drive tractors and hydro 100 tractors

2шт.

6

535665R3

AXLE

rear, 100 in. tread, 1066 gear drive tractors

2шт.

6

535662R1

AXLE

rear, 118 in. tread, all 766 & 966 tractors and 1066 hydrostatic drive tractors and hydro 100 tractors

2шт.

6

535663R2

AXLE

rear, 118 in. tread, 1066 gear drive tractors

1шт.

Ref #6 - 535663R2 is 54"

1шт.

7

528715R1

RETAINER

rear axle outer brg grease, 766, Serial Range: -7277

2шт.

7

528715R1

RETAINER

rear axle outer brg grease, 966, Serial Range: -9879

2шт.

7

528715R1

RETAINER

rear axle outer brg grease, 1066, Serial Range: -10400

2шт.

8

ST2040

TAPERED BEARING,3.375" ID x 5.376" OD x 1.2015"

BEARING ASSY, rear axle outer cone, all 766 & 966 tractors and 1066 hydrostatic drive tractors and hydro 100 tractors

1шт.

8

ST2107

TAPERED BEARING

BEARING ASSY, rear axle outer cone, 1066 gear drive tractors

2шт.

9

ST897

BEARING CUP,122.24mm OD x 29.72mm W

BEARING, rear axle outer cup, all 766 & 966 tractors and 1066 hydrostatic drive tractors and hydro 100 tractors

2шт.

9

619697C1

BEARING CUP,149.98mm OD x 26.90mm W

BEARING, rear axle outer cup, 1066 gear drive tractors

2шт.

10

380227R2

SHIM

rear axle carrier cap, .007

6шт.

11

380228R2

SHIM

rear axle carrier cap, .012 (or as required)

4шт.

12

380229R2

SHIM

rear axle carrier cap, .030

1шт.

13

385158R2

SHIM

rear axle carrier cap, .003

1шт.

14

535667R91

OIL SEAL

rear axle carrier cap oil

2шт.

15

GEAR, bull, refer to differential listing, this group

1шт.

16

530033R2

CAP

rear axle carrier, all 766 & 966 tractors and 1066 hydrostatic drive tractors and hydro 100 tractors

2шт.

16

536471R1

CAP

rear axle carrier, 1066 gear drive tractors (Replaces 536471R2)

2шт.

179842

SPACER

3/8-16 x 1-3/8 hex-hd cap

10шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

10шт.

17

392346R1

BRACKET

rear wheel inner postition gage

2шт.

413-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

3/8-16 x 1-3/8 hex-hd cap

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

18

529133R1

RING

rear axle carrier cap sealing

2шт.

19

535666R1

SPACER

bull gear, 1066 gear drive tractors

2шт.
