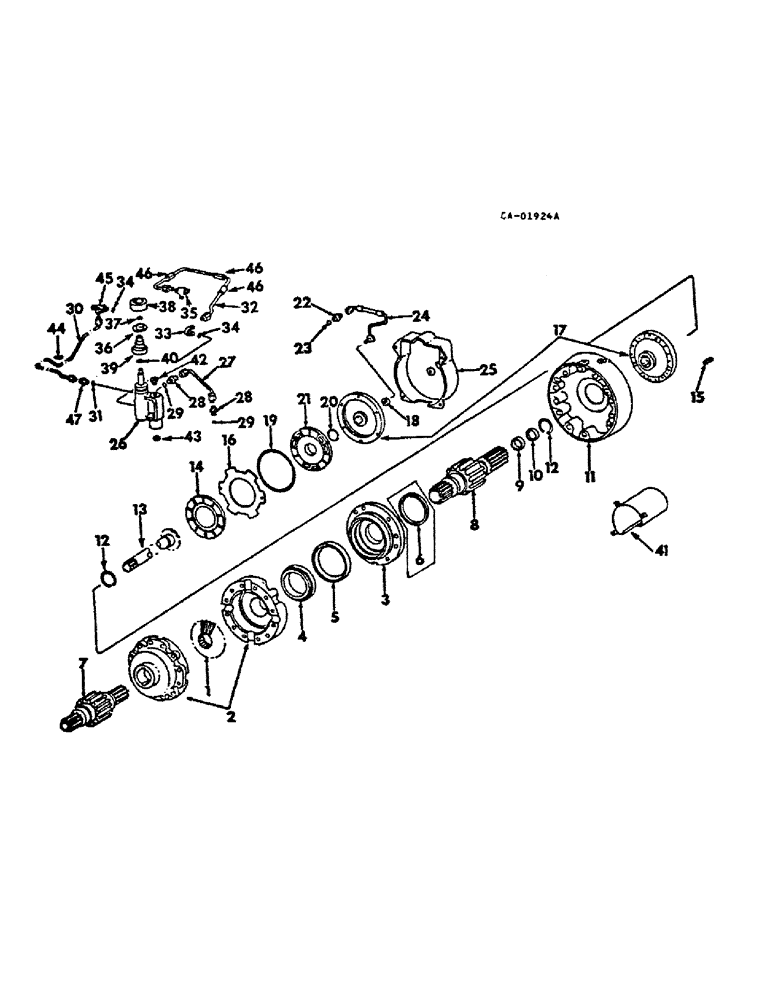

Запчасти Case IH 1066 (07-42) - DRIVE TRAIN, DIFFERENTIAL LOCK, 766, 966 AND 1066 GEAR DRIVE TRACTORS (04) - Drive Train

1

529022R2

GEAR

differential bevel RH, 28T

1шт.

ref #1 If a dealer is looking for the left hand differential bevel gear for the diff lock order 380190R2 MVP TSG.

1шт.

2

529023R2

CASE

ASSY, differential, 766 and 966 tractors except hi-clear

1шт.

ref #2 (P/N 529023R2) - also 1066D-GD per FEC87679

1шт.

2

67786C2

CASE

ASSY, differential, 1066 tractors except hi-clear

1шт.

2

534532R2

CASE

ASSY, differential, 766 diesel, 966 and 1066 hi-clear tractors

1шт.

3

391685R1

RETAINER, differntial bearing RH, all tractors except hi-clear, 766, Serial Range: -11820

1шт.

3

391685R1

RETAINER, differntial bearing RH, all tractors except hi-clear, 766, Serial Range: 12161-12180

1шт.

3

391685R1

RETAINER, differntial bearing RH, all tractors except hi-clear, 966, Serial Range: -20685

1шт.

3

391685R1

RETAINER, differntial bearing RH, all tractors except hi-clear, 966, Serial Range: 21435-21512

1шт.

3

391685R1

RETAINER, differntial bearing RH, all tractors except hi-clear, 1066, Serial Range: -30373

1шт.

3

391685R1

RETAINER, differntial bearing RH, all tractors except hi-clear, 1066, Serial Range: 32330-32538

1шт.

3

68684C1

RETAINER

differential bearing RH, all tractors except hi-clear, 766, Serial Range: 11821-12160

1шт.

3

68684C1

RETAINER

differential bearing RH, all tractors except hi-clear, 766, Start Serial: 12181

1шт.

3

68684C1

RETAINER

differential bearing RH, all tractors except hi-clear, 966, Serial Range: 20686-21434

1шт.

3

68684C1

RETAINER

differential bearing RH, all tractors except hi-clear, 966, Start Serial: 21513

1шт.

3

68684C1

RETAINER

differential bearing RH, all tractors except hi-clear, 1066, Serial Range: 30374-32329

1шт.

3

68684C1

RETAINER

differential bearing RH, all tractors except hi-clear, 1066, Start Serial: 32539

1шт.

3

391688R1

RETAINER, differential bearing RH, all hi-clear tractors, 766, Serial Range: -11820

1шт.

3

391688R1

RETAINER, differential bearing RH, all hi-clear tractors, 766, Serial Range: 12161-12180

1шт.

3

391688R1

RETAINER, differential bearing RH, all hi-clear tractors, 966, Serial Range: -20685

1шт.

3

391688R1

RETAINER, differential bearing RH, all hi-clear tractors, 966, Serial Range: 21435-21512

1шт.

3

391688R1

RETAINER, differential bearing RH, all hi-clear tractors, 1066, Serial Range: -30373

1шт.

3

391688R1

RETAINER, differential bearing RH, all hi-clear tractors, 1066, Serial Range: 32330-32538

1шт.

3

68678C1

RETAINER

differential bearing RH, all hi-clear tractors, 766, Serial Range: 11821-12160

1шт.

3

68678C1

RETAINER

differential bearing RH, all hi-clear tractors, 766, Start Serial: 12181

1шт.

3

68678C1

RETAINER

differential bearing RH, all hi-clear tractors, 966, Serial Range: 20686-21434

1шт.

3

68678C1

RETAINER

differential bearing RH, all hi-clear tractors, 966, Start Serial: 21513

1шт.

3

68678C1

RETAINER

differential bearing RH, all hi-clear tractors, 1066, Serial Range: 30374-32329

1шт.

3

68678C1

RETAINER

differential bearing RH, all hi-clear tractors, 1066, Start Serial: 32539

1шт.

4

ST2104

BEARING ASSY

RH roller cone, 766 - 966 and 1066 tractors except hi-clear

1шт.

4

ST2133

BEARING ASSY,3.0625" ID x 4.625" OD x 1"

RH roller cone, 766 - diesel, 966 and 1066 hi-clear tractors

1шт.

5

ST986

TAPERED BEARING,133.35mm OD x 22.28mm W

BEARING, RH roller cup, 766, 966 and 1066 tractors except hi-clear

1шт.

5

ST990

TAPERED BEARING,3.0625" ID x 4.625" OD x 1"

BEARING, RH roller cup, 766, 966 and 1066 hi-clear tractors

1шт.

6

391689R91

OIL SEAL

SEAL, differential brg retainer RH, 766, Serial Range: -11820

1шт.

6

391689R91

OIL SEAL

SEAL, differential brg retainer RH, 766, Serial Range: 12161-12180

1шт.

6

391689R91

OIL SEAL

SEAL, differential brg retainer RH, 966, Serial Range: -20685

1шт.

6

391689R91

OIL SEAL

SEAL, differential brg retainer RH, 966, Serial Range: 21435-21512

1шт.

6

391689R91

OIL SEAL

SEAL, differential brg retainer RH, 1066, Serial Range: -30373

1шт.

6

391689R91

OIL SEAL

SEAL, differential brg retainer RH, 1066, Serial Range: 32330-32538

1шт.

7

529025R1

SHAFT

bull pinion & brake LH, all 766 & 966 tractors and 1066 hi-clear tractors

1шт.

7

535461R1

SHAFT

bull pinion & brake LH, 1066 tractors except hi-clear

1шт.

8

529026R1

SHAFT

bull pinion & brake RH, all 766 & 966 tractors and 1066 hi-clear tractors

1шт.

8

535462R1

SHAFT

bull pinion & brake RH, 1066 tractors except hi-clear

1шт.

9

283375R91

NEEDLE BEARING

ASSY, needle

1шт.

10

529027R91

OIL SEAL

oil

1шт.

11

529028R1

HOUSING, RH brake

1шт.

24959R1

SCREW, w/nylon pellet insert, 5/8-11 x 5-1/4 hex-hd cap

4шт.

271569

SOCKET,Hex, 5/8" - 11 x 3 3/4", Gr 5

SCREW, 5/8-11 x 3-3/4 hex-hd cap

2шт.

12

300026R1

RING

retaining

2шт.

13

529030R1

SHAFT

inner

1шт.

14

529031R1

DISC

ASSY, differential lock friction

1шт.

15

529032R1

SPRING

piston return

8шт.

16

529033R1

PLATE ASSY.

PLATE, pressure

1шт.

17

529401R11

HOUSING

ASSY, piston, composed of (1) housing 529029R1 (NSS), (1) housing 529401R1 (NSS), (2) pin 20027r1, (1) plug 9409954

1шт.

20027R1

PIN,5/16" x 1 1/4"

5/16 x 1-1/4 dowel

2шт.

9409954

PLUG,Hex Soc, 1/16"-27

1/16-27 auto soc-hd pipe

1шт.

138202

SCREW,1/4" - 20 x 1"

1/4-20 x 1 hex soc-hd cap

6шт.

18

529404R91

SEAL

inlet shaft oil

1шт.

19

3046994R1

O-RING,0.139" Thk x 5.609" ID, -255, Cl 5, 75 Duro

5-5/8 x 5-7/8 x 1/8, piston outer

1шт.

20

252483R1

O-RING,-218, 70 Duro, 1.234" ID x .139" Thk

1-1/4 x 1-1/2 x 1/8, piston inner

1шт.

21

529034R1

PISTON ASSY.

PISTON, differential lock brake

1шт.

22

9410199

HYD CONNECTOR,3/8"-24, 37 Degree x 3/8"-24

UNION, 3/8-24 37 deg hyd flared tube short swivel

1шт.

24

529402R2

HYD TUBE

SHAFT ASSY, oil inlet

1шт.

25

529036R11

COVER ASSY, differential lock

1шт.

23112R1

PIN, 1/8 x 1/2 dowel 1/8" x 1/2"

1шт.

NLS

NO LONGER SERVICED

SCREW, 1/4-20 x 7/8 hex-hd cap

4шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

26

65416C92

LOCK VALVE

VALVE ASSY, differential lock, replaces 529003R91, for components see list of parts under details of differential lock valve

1шт.

272393

PISTON,Hex, 3/8" - 16 x 6 1/4", Gr 5

SCREW, 3/8-16 x 6-1/4 hex-hd cap

1шт.

536642R1

WASHER

13/32 x 1 x .060

1шт.

27

535463R2

TUBE

ASSY, differential lock pressure

1шт.

28

9410200

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

UNION, 7/16-20 37 deg hyd flared tube short swivel

2шт.

29

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

3/8 x 1/2 x 1/16

2шт.

30

535844R2

TUBE ASSY, differential lock supply, order block, 537841R1, union, 9410202, two o-rings, 364839R1 two rings, 369908R1, tube, 537833R1, tube, 537834R1, support, 5389356R1, tube, 537873R1, reducer, 674681R1, o-ring, 369384R1 and tee, 9411130, 766, Serial Range: -7175

1шт.

30

535844R2

TUBE ASSY, differential lock supply, order block, 537841R1, union, 9410202, two o-rings, 364839R1 two rings, 369908R1, tube, 537833R1, tube, 537834R1, support, 5389356R1, tube, 537873R1, reducer, 674681R1, o-ring, 369384R1 and tee, 9411130, 966, Serial Range: -8056

1шт.

30

535844R2

TUBE ASSY, differential lock supply, order block, 537841R1, union, 9410202, two o-rings, 364839R1 two rings, 369908R1, tube, 537833R1, tube, 537834R1, support, 5389356R1, tube, 537873R1, reducer, 674681R1, o-ring, 369384R1 and tee, 9411130, 1066, Serial Range: -9070

1шт.

30

537873R1

HYD TUBE

TUBE ASSY, differential lock supply, 766, Start Serial: 7176

1шт.

30

537873R1

HYD TUBE

TUBE ASSY, differential lock supply, 966, Start Serial: 8057

1шт.

30

537873R1

HYD TUBE

TUBE ASSY, differential lock supply, 1066, Start Serial: 8071

1шт.

31

369384R1

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk, 5/16 OD tube

1шт.

32

535464R2

TUBE

ASSY, differential lock dump

1шт.

33

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

9/16-18 37 deg C-Z hyd flared tube adj str thd 90 deg

1шт.

34

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

2шт.

14

529031R1

DISC

ASSY, differential lock friction

1шт.

15

529032R1

SPRING

piston

8шт.

16

529033R1

PLATE ASSY.

PLATE, pressure

1шт.

17

529401R11

HOUSING

ASSY, piston, composed of (1) housing 529029R1 (NSS), (1) 529401R1 (NSS), (2) pin 20027R1, (1) plug 9409954

1шт.

20027R1

PIN,5/16" x 1 1/4"

5/16 x 1-1/4 dowel

2шт.

9409954

PLUG,Hex Soc, 1/16"-27

1/16-27 auto soc-hd pipe

1шт.

1382023

SCREW, 1/4-20 x 1 hex-soc-hd-cap

6шт.

18

529404R91

SEAL

inlet shaft oil

1шт.

19

3046994R1

O-RING,0.139" Thk x 5.609" ID, -255, Cl 5, 75 Duro

5-5/8 x 5-7/8 x 1/8, piston outer

1шт.

20

252483R1

O-RING,-218, 70 Duro, 1.234" ID x .139" Thk

1-1/4 x 1-1/2 x 1/8, piston inner

1шт.

21

529034R1

PISTON ASSY.

PISTON, differential lock brake

1шт.

22

9410199

HYD CONNECTOR,3/8"-24, 37 Degree x 3/8"-24

UNION, 3/8-24 37 deg hyd flared tube short swivel

1шт.

23

379795R1

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

3-1, .301" ID x .064" Thk

1шт.

23

379795R1

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

3-1, .301" ID x .064" Thk

1шт.

24

529402R2

HYD TUBE

SHAFT ASSY, oil inlet

1шт.

25

529036R11

COVER ASSY, differential lock

1шт.

23112R1

PIN, 1/8 x 1/2 dowel 1/8" x 1/2"

1шт.

179796

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5

SCREW, 1/4-20 x 7/8 hex-hd cap

4шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

26

65416C92

LOCK VALVE

VALVE ASSY, differential lock, replaces 529003R91, for components see list of parts under details of differential lock valve

1шт.

413-6100

BOLT,Hex, 3/8" - 16 x 6-1/4", Gr 5

SCREW, 3/8-16 x 6-1/4 hex-hd cap

1шт.

536642R1

WASHER

13/32 X 1 X .060

1шт.

27

535463R2

TUBE

ASSY, differential lock pressure

1шт.

28

9410200

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

UNION, 7/16-20 37 deg hyd flared tube short swivel

2шт.

29

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

3/8 x 1/2 x 1/16

2шт.

30

535844R2

TUBE ASSY, differential lock supply, order block, 537841R1, union, 9410202, two o-rings, 364839R1 two o-rings, 369908R1, tube, 537833R1, tube, 537834R1, support, 538935R1, tube, 537873R1, reducer, 674681R1, o-ring, 369384R1 and tee, 9411130, 766, Serial Range: -7175

1шт.

30

535844R2

TUBE ASSY, differential lock supply, order block, 537841R1, union, 9410202, two o-rings, 364839R1 two o-rings, 369908R1, tube, 537833R1, tube, 537834R1, support, 538935R1, tube, 537873R1, reducer, 674681R1, o-ring, 369384R1 and tee, 9411130, 966, Serial Range: -8056

1шт.

30

535844R2

TUBE ASSY, differential lock supply, order block, 537841R1, union, 9410202, two o-rings, 364839R1 two o-rings, 369908R1, tube, 537833R1, tube, 537834R1, support, 538935R1, tube, 537873R1, reducer, 674681R1, o-ring, 369384R1 and tee, 9411130, 1066, Serial Range: -8070

1шт.

30

537873R1

HYD TUBE

TUBE ASSY, differential lock supply, 766, Start Serial: 7176

1шт.

30

537873R1

HYD TUBE

TUBE ASSY, differential lock supply, 966, Start Serial: 8057

1шт.

30

537873R1

HYD TUBE

TUBE ASSY, differential lock supply, 1066, Start Serial: 8071

1шт.

31

369384R1

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk, 5/16 OD tube

1шт.

32

535464R2

TUBE

ASSY, differential lock dump

1шт.

33

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

ELOW, 9/16-18 37 deg C-Z hyd flared tube adj str thd 90 deg

1шт.

34

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

2шт.

35

120286C1

TEE

differential lock dump tube, replaces 529041R1

1шт.

36

529042R1

SPACER

PEDAL

1шт.

37

384561R1

SNAP RING,#40, Ext

Ring, Snap, , pedal #40, Ext

1шт.

38

529043R1

PAD

pedal

1шт.

39

393071R2

BELLOWS

BOOT, pedal

1шт.

40

529044R1

LOCK WASHER

pedal boot

1шт.

41

391814R11

SHIELD ASSY, bull pinion brg oil, 766, Serial Range: -7717

1шт.

41

391814R11

SHIELD ASSY, bull pinion brg oil, 966, Serial Range: -15283

1шт.

41

391814R11

SHIELD ASSY, bull pinion brg oil, 1066, Serial Range: -19282

1шт.

423324

SCREW,Hex L/Wshr Hd, #10-24 x 7/16"

w/ext-tooth lockwasher, 10-24 x 7/16 hex-hd mach

3шт.

42

536629R1

BUSHING,10.03mm ID x 19.81mm OD x 18.29mm L

platform isomount

1шт.

43

536678R1

SPACER, differential lock valve

1шт.

44

140580

NO LONGER SERVICED

CLIP, supply tube

1шт.

45

9411130

TEE,9/16"-18, 37 Degree x 9/16"-18, O-Ring Run

9/16-18 C-Z 37 deg hyd flared tube adj str thd 90 deg

1шт.

46

534250R1

HOSE

tube bumper

3шт.

47

674681R1

HYD CONNECTOR,9/16"-18, 37 Degree x 1/2"-20, O-Ring

REDUCER, 1/2-20 37 deg hyd flared tube

1шт.
