Запчасти Case IH 1066 (07-38) - DRIVE TRAIN, DIFFERENTIAL, 1066 TRACTORS (04) - Drive Train

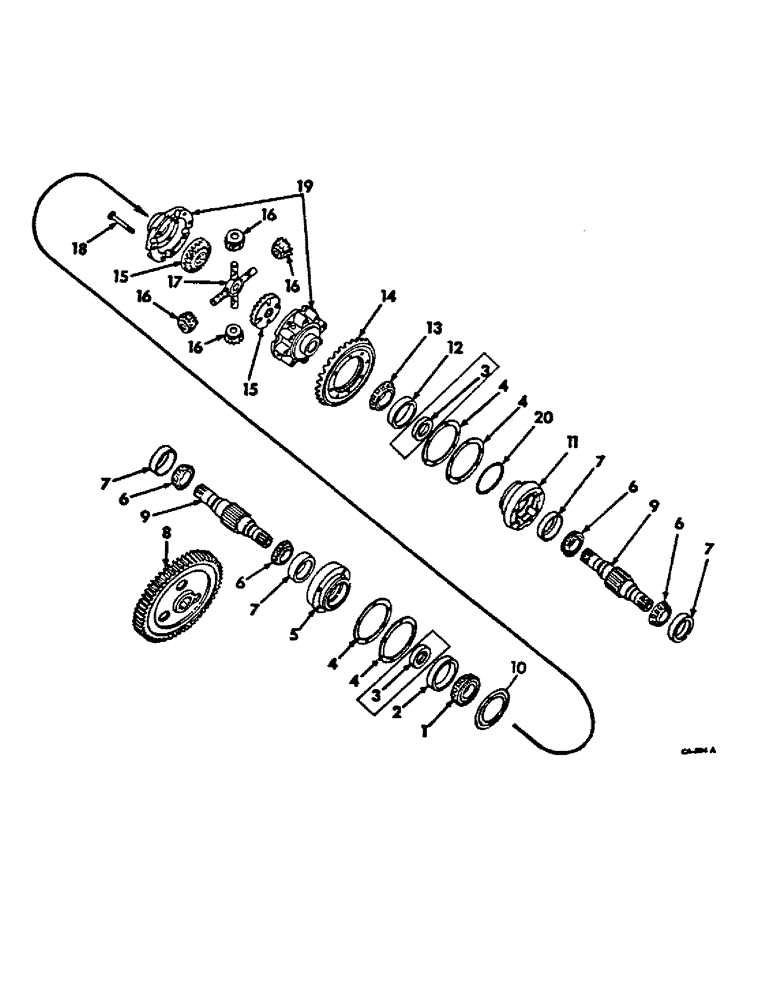

Схема запчастей Case IH 1066 - (07-38) - DRIVE TRAIN, DIFFERENTIAL, 1066 TRACTORS (04) - Drive Train
6
4
17
4
6
3
10
4
19
6
4
18
16
7
2
12
7
16
15
13
7
1
8
3
9
20
6
16
9
11
7
15
14
16
5

Артикул

Название

Примечание

Количество

1

ST2129

BEARING ASSY,77.79mm ID x 23.01mm W

differential roller LH cone, all hi-clear tractors, all hydrostatic drive tractors

1шт.

Ref #1 - ST2129 - I.D. is 3.0625"

1шт.

1

ST2129

BEARING ASSY,77.79mm ID x 23.01mm W

differential roller LH cone, gear drive tractors, Serial Range: -22999

1шт.

Ref #1 - ST2129 - I.D. is 3.0625"

1шт.

1

529452R91

ROLLER BEARING

ASSY, differential roller LH cone, gear drive tractors, Start Serial: 23000

1шт.

Ref #1 - 529452R91 - I.D. is 2.952"

1шт.

2

ST988

BEARING CUP,121.44mm OD x 17.46mm W

BEARING, differential roller LH cup, all hi-clear tractors, all hydrostatic drive tractors

1шт.

2

ST988

BEARING CUP,121.44mm OD x 17.46mm W

BEARING, differential roller LH cup, gear drive tractors, Serial Range: -22999

1шт.

2

529453R1

BEARING, CUP

BEARING, differential roller LH cup, gear drive tractors, Start Serial: 23000

1шт.

3

380200R92

OIL SEAL

differential roller bearing retainer oil, all hydrostatic drive tractors

2шт.

3

380200R92

OIL SEAL

differential roller bearing retainer oil, hi-clear gear drive tractors, Serial Range: -30373

2шт.

3

380200R92

OIL SEAL

differential roller bearing retainer oil, hi-clear gear drive tractors, Serial Range: 32330-32538

2шт.

3

391689R91

OIL SEAL

SEAL, differential roller bearing retainer oil, gear drive tractors, Serial Range: -22999

2шт.

3

67609C1

BAFFLE

differential lub oil, gear drive tractors, Serial Range: 2300-30373

2шт.

3

67609C1

BAFFLE

differential lub oil, gear drive tractors, Serial Range: 32330-32538

2шт.

4

380202R1

SHIM

differential roller brg retainer .007 (or as required)

2шт.

4

380203R1

SHIM

differential roller brg retainer .012 (or as required)

4шт.

4

380204R1

SHIM

differential roller brg retainer .030

1шт.

4

380205R1

SHIM

differential roller brg retainer .004

1шт.

4

385155R1

SHIM

differential roller brg retainer .003

1шт.

5

391688R1

RETAINER, differential roller brg LH, gear drive tractors

1шт.

5

67610C2

RETAINER

differential roller brg LH, gear drive tractors, Start Serial: 23000

1шт.

5

406023R1

RETAINER

differential roller brg LH, all hydrostatic drive tractors

1шт.

5

400901R1

RETAINER

differential roller brg LH, hi-clear gear drive tractors, Serial Range: -30373

1шт.

5

400901R1

RETAINER

differential roller brg LH, hi-clear gear drive tractors, Serial Range: 32330-32538

1шт.

5

68686C1

RETAINER

differential roller brg LH, hi-clear gear drive tractors, Serial Range: 30374-32329

1шт.

5

68686C1

RETAINER

differential roller brg LH, hi-clear gear drive tractors, Start Serial: 32539

1шт.

179885

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

6шт.

6

ST2007A

TAPERED BEARING,2.625" ID x 4.4375" OD x 1.1875"

BEARING ASSY, bull pinion & brake shaft cone, for hydrostatic drive and gear drive hi-clear tractors

4шт.

6

ST2018A

BEARING ASSY,66.67mm ID x 30.24mm W

bull pinion & brake shaft cone, gear drive tractors

4шт.

7

13363D

TAPERED BEARING

BEARING, bull pinion and brake shaft cup, for hydrostatic drive gear drive hi-clear tractors

4шт.

7

ST967

BEARING, CUP,2.5" ID x 4.4385" OD x 1.1955"

BEARING, bull pinion and brake shaft cup, gear drive tractors

4шт.

8

391691R1

GEAR

bull, 73T, gear drive tractors

2шт.

8

384075R1

GEAR

bull, 73T, for hydrostatic drive and gear drive hi-clear tractors

2шт.

9

400864R1

SHAFT

bull pinion & brake, 13 T, all hydrostatic drive tractors

2шт.

9

391690R1

SHAFT

bull pinion & brake, 13 T, gear drive tractors

2шт.

9

401276R1

SHAFT

bull pinion & brake, 13 T, hi-clear tractors

2шт.

10

68672C1

BAFFLE

LH differential brg oil, replaces 406041R1, all hydrostatic drive tractors

1шт.

10

67397C1

BAFFLE

LH differential brg oil, gear drive tractors, Start Serial: 23000

1шт.

11

391685R1

RETAINER, differential roller brg RH, gear drive tractors, Serial Range: -22999

1шт.

11

67608C2

RETAINER

differential roller brg RH, gear drive tractors, Start Serial: 23000

1шт.

11

400900R1

RETAINER

differential rollre brg RH, all hydrostatic drive tractors, hi-clear gear drive tractors, Serial Range: -30373

1шт.

11

400900R1

RETAINER

differential rollre brg RH, all hydrostatic drive tractors, hi-clear gear drive tractors, Serial Range: 32330-32538

1шт.

11

68679C1

RETAINER

differential roller brg RH, hi-clear gear drive tractors, Serial Range: 30374-32329

1шт.

11

68679C1

RETAINER

differential roller brg RH, hi-clear gear drive tractors, Start Serial: 32539

1шт.

179885

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

6шт.

12

ST986

TAPERED BEARING,133.35mm OD x 22.28mm W

BEARING, differential roller RH cup, gear drive tractors, Serial Range: -22999

1шт.

12

622337C1

BEARING CUP,129.99mm OD x 23.90mm Thk

BEARING, differential roller RH cup, gear drive tractors, Start Serial: 23000

1шт.

12

ST990

TAPERED BEARING,3.0625" ID x 4.625" OD x 1"

BEARING, differential roller RH cup, for hydrostatic drive tractors and hi-clear tractors

1шт.

13

ST2104

BEARING ASSY

BEARING, differential roller RH cone, gear drive tractors, Serial Range: -22999

1шт.

13

622336C91

ROLLER BEARING

differential roller RH cone, gear drive tractors, Start Serial: 23000

1шт.

13

ST2133

BEARING ASSY,3.0625" ID x 4.625" OD x 1"

BEARING, differential roller RH cone, for hydrostatic drive tractors and hi-clear tractors

1шт.

14

395828R91

SET

BEVEL GEARS, matched set, order 120265C91, all hydrostatic drive tractors, consists of (1) gear 388916R1 (NSS), (1) shaft 395013R1 (NSS), (1) tag 1084053R1 (NSS)

1шт.

14

534307R91

GEAR, BEVEL

BEVEL GEARS, matched set, order 120265C91, gear drive tractors, consists of (1) gear 528708R1 (NSS), (1) shaft 536171R1 (NSS), (1) tag 1082965R1 (NSS)

1шт.

14

68529C91

GEAR-SET

BEVEL GEARS, matched set, hi-clear tractors, consists of (1) gear 380132R1 (NSS), (1) shaft 380160R1 (NSS), (1) tag 1084237R1

1шт.

15

380190R2

GEAR

differential bevel, 28 T

2шт.

16

361061R3

PINION

differential bevel, 15 T

4шт.

17

393637R2

DIFF. SPIDER

SPIDER, differential

1шт.

18

55972DA

BOLT,1/2" - 20 x 4 1/2"

differential case

12шт.

381368R1

NUT,Hex, 1/2" - 20, Gr 8

differential case bolt

12шт.

19

391681R91

CASE

ASSY, differential, gear drive tractors, composed of case, 380188R2 (NSS) & case, 391682R1 (NSS), Serial Range: -22999

1шт.

19

528706R3

CASE

ASSY, differential, gear drive tractors, composed of case, 528704R1 (NSS) & case, 528705R3 (NSS), Start Serial: 23000

1шт.

19

380187R92

CASE

ASSY, differential, hi-clear gear drive tractors, composed of case, 380189R2 (NSS)

1шт.

19

406019R2

DIFFERENTIAL

CASE ASSY, differential, all hydrostatic drive tractors, composed of (12) bolt 559721DA, (1) case 380189R2 (NSS), (1) case 406020R2 (NSS), (1) gear 406021R1, (12) nut 381368R1

1шт.

19

528665R2

CASE ASSY, differential, hi-clear hydrostatic drive tractors, composed of (12) bolt 55972DA, (1) case 380189R2 (NSS), (1) case 406020R2, (1) gear 528666R1, (12) nut 381368R1

1шт.

20

(Not used in this application)

1шт.

120265C91

GEAR-SET

PACKAGE, bevel gear and pinion, consists of (1) shaft, 13T (NSS), (1) bevel gear, 51T (NSS), (1) shim 380283R2, (2) shim 380284R2, (2) retainer 529464R1, (1) bearing 528684R91, (1) washer 3590814R1, (1) nut 359082R2, (1) instruction (NSS)

1шт.

Выбрано товаров: 67
