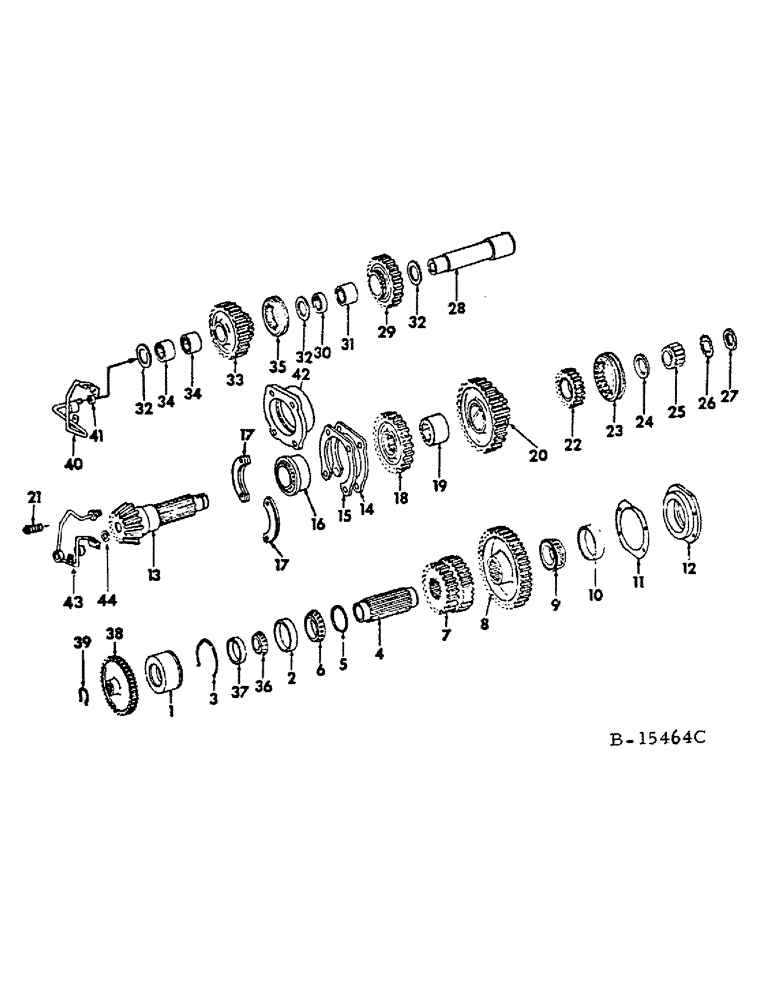

Запчасти Case IH 1066 (07-33) - DRIVE TRAIN, RANGE TRANSMISSION REAR FRAME, 1066, 1466 AND 1468 GEAR DRIVE TRACTORS (04) - Drive Train

1

528695R1

CAGE

ASSY, countershaft rear brg, 1066, Serial Range: -30373

1шт.

1

528695R1

CAGE

ASSY, countershaft rear brg, 1466, Serial Range: -18216

1шт.

1

528695R1

CAGE

ASSY, countershaft rear brg, 1468, Serial Range: -9555

1шт.

1

68523C1

CAGE

ASSY, countershaft rear brg, 1066, Start Serial: 30374

1шт.

1

68523C1

CAGE

ASSY, countershaft rear brg, 1466, Start Serial: 18217

1шт.

1

68523C1

CAGE

ASSY, countershaft rear brg, 1468, Start Serial: 9556

1шт.

2

625743C1

BEARING CUP,90mm OD x 18.5mm W

BEARING ASSY, countershaft cup, 1066 - tractors

1шт.

2

ST2164

BEARING ASSY,90mm OD x 19.99mm W

countershaft cup, 1466 and 1468 tractors

1шт.

There is a spacer between Ref #2 and Ref# 6 - part number is 67778C1

1шт.

3

384340R1

RING, SNAP

RING, brg rear cage retaining, for use w/cage assy, 528695R1

1шт.

3

26522R1

SNAP RING,4.625", Int, #462

Ring, Snap, , brg cage rear, for use w/cage assy, 68523C1 4.625", Int, #462

1шт.

4

528680R2

SHAFT

COUNTERSHAFT, 1066 tractors

1шт.

4

531799R1

SHAFT

COUNTERSHAFT, 1466 and 1468 tractors

1шт.

5

583564R1

SNAP RING,#250, 2.356, Ext

RING, countershaft snap

1шт.

6

625742C91

BEARING

ASSY, countershaft rear cone, 1066 tractors

1шт.

6

ST2010

BEARING ASSY,52.39mm ID x 25.4mm W

countershaft rear cone, 1466 and 1468 tractors

1шт.

There is a spacer between Ref #2 and Ref# 6 - part number is 67778C1

1шт.

7

528681R1

GEAR

lo drive, 28 T, 33 T

1шт.

8

406028R1

GEAR

constant mesh, 50 T

1шт.

9

625742C91

BEARING

ASSY, countershaft front cone

1шт.

10

625743C1

BEARING CUP,90mm OD x 18.5mm W

BEARING ASSY, countershaft front cup

1шт.

11

380280R1

SHIM

countershaft bearing (or as required), 1066, Serial Range: -22999

1шт.

11

380280R1

SHIM

countershaft bearing (or as required), 1466, Serial Range: -14999

1шт.

11

380280R1

SHIM

countershaft bearing (or as required), 1468, Serial Range: -8999

1шт.

11

67603C1

SHIM

countershaft bearing, .004/.005, (or as required), 1066, Start Serial: 23000

1шт.

11

67603C1

SHIM

countershaft bearing, .004/.005, (or as required), 1466, Start Serial: 15000

1шт.

11

67603C1

SHIM

countershaft bearing, .004/.005, (or as required), 1468, Start Serial: 9000

1шт.

11

67604C1

SHIM

countershaft bearing, .0299, (or as required), 1066, Start Serial: 23000

1шт.

11

67604C1

SHIM

countershaft bearing, .0299, (or as required), 1466, Start Serial: 15000

1шт.

11

67604C1

SHIM

countershaft bearing, .0299, (or as required), 1466, Start Serial: 9000

1шт.

11

67605C1

SHIM

countershaft bearing, .012, (or as required), 1066, Start Serial: 2300

1шт.

11

67605C1

SHIM

countershaft bearing, .012, (or as required), 1466, Start Serial: 15000

1шт.

11

67605C1

SHIM

countershaft bearing, .012, (or as required), 1468, Start Serial: 9000

1шт.

11

67606C1

SHIM

countershaft bearing, .007 (or as required), 1066, Start Serial: 23000

1шт.

11

67606C1

SHIM

countershaft bearing, .007 (or as required), 1466, Start Serial: 15000

1шт.

11

67606C1

SHIM

countershaft bearing, .007 (or as required), 1468, Start Serial: 9000

1шт.

11

67607C1

SHIM

countershaft bearing, .0035/.0025, (or as required), 1066, Start Serial: 23000

1шт.

11

67607C1

SHIM

countershaft bearing, .0035/.0025, (or as required), 1466, Start Serial: 15000

1шт.

11

67607C1

SHIM

countershaft bearing, .0035/.0025, (or as required), 1468, Start Serial: 9000

1шт.

12

528682R1

CAGE

countershaft front bearing, 1066, Serial Range: -22999

1шт.

12

528682R1

CAGE

countershaft front bearing, 1466, Serial Range: -14999

1шт.

12

528682R1

CAGE

countershaft front bearing, 1468, Serial Range: -8999

1шт.

12

67598C1

CAGE

countershaft front bearing, 1066, Start Serial: 23000

1шт.

12

67598C1

CAGE

countershaft front bearing, 1466, Start Serial: 15000

1шт.

12

67598C1

CAGE

countershaft front bearing, 1468, Start Serial: 9000

1шт.

NLS

NO LONGER SERVICED

4шт.

13

534307R91

GEAR, BEVEL

BEVEL GEARS, matched set, order 120265C91, 1066 tractors except hi-clear, consists of (1) gear 528708R1 (NSS), (1) shaft 536171R1 (NSS), (1) tag 1082965R1 (NSS)

1шт.

13

68529C91

GEAR-SET

BEVEL GEARS, matched set, 1066 hi-clear tractors, consists of (1) gear 380132R1 (NSS), (1) shaft 380160R1 (NSS), (1) tag 1084237R1 (NSS)

1шт.

13

528707R92

GEAR SET

BEVEL GEARS, matched set, order 120265C91, 1466 and 1468 tractors, consists of (1) gear 528708R1 (NSS), (1) shaft 529284R2 (NSS), (1) tag 1084054R1 (NSS)

1шт.

14

380283R2

SHIM

main shaft brg, .004

1шт.

15

380284R2

SHIM

main shaft bearing, .007, (or as required)

2шт.

16

391894R91

CRANKSHAFT BEARING,2.5005" ID x 5.252" OD x 2.682"

ASSY, mainshaft rear, 1066 tractors except hi-clear

1шт.

16

ST2126

TAPERED BEARING,2.5" ID x 4.4375" OD x 1.1875"

BEARING ASSY, mainshaft rear, 1066 hi-clear tractors

1шт.

16

528684R91

BEARING ASSY,63.5mm ID x 133.4mm OD x 70.48mm W

ASSY, mainshaft rear, 1466 and 1468 tractors

1шт.

17

396322R1

RETAINER

ASSY, main shaft rear bearing, 1066 tractors

2шт.

17

529464R1

RETAINER

ASSY, main shaft rear bearing, 1466 and 1468 tractors

2шт.

179885

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

2шт.

18

380288R1

GEAR

reverse driven, 35 T

1шт.

19

380289R1

CARRIER

hi-lo driven gear

1шт.

20

528683R11

GEAR

ASSY, hi-low driven, 45 T

1шт.

21

380286R1

BOLT,Flg, 1/2" - 13 x 1 1/2"

lub tube mounting bracket upper

1шт.

21

179885

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

Lub tube mounting bracket lower Hex, 1/2"-13 x 1 1/2", G5, Full Thd

1шт.

380286R1

BOLT,Flg, 1/2" - 13 x 1 1/2"

lub tube mounting bracket, lower 1066 hi-clear tractors

1шт.

406579R1

WASHER

lub tube mtg bracket

2шт.

22

533927R1

CARRIER

shift collar

1шт.

23

393521R1

COLLAR

hi-lo shift

1шт.

24

380294R1

SPACER

main shaft

1шт.

25

391897R91

BEARING ASSY,40mm ID x 77.62mm OD x 30mm W

ASSY, main shaft front, 1066 tractors except hi-clear

1шт.

25

380295R91

BEARING, ROLLER, CYL,40mm ID x 69.58mm OD x 30.16mm W

ASSY, main shaft front, 1066 hi-clear tractors

1шт.

25

530137R91

BEARING ASSY,40mm ID x 77.62mm OD x 32.38mm W

ASSY, main shaft front, 1466 and 1468 tractors

1шт.

26

359081R1

WASHER,38.89mm ID x 61.91mm OD x 1.52mm Thk

main shaft lock

1шт.

27

359082R2

NUT

main shaft

1шт.

28

380296R11

SHAFT

ASSY, reverse idler, 1066, Serial Range: -30373

1шт.

28

380296R11

SHAFT

ASSY, reverse idler, 1466, Serial Range: -18216

1шт.

28

380296R11

SHAFT

ASSY, reverse idler, 1468, Serial Range: -9555

1шт.

28

67774C1

SHAFT

ASSY, reverse idler, 1066, Start Serial: 30374

1шт.

28

67774C1

SHAFT

ASSY, reverse idler, 1466, Start Serial: 18217

1шт.

28

67774C1

SHAFT

ASSY, reverse idler, 1468, Start Serial: 9556

1шт.

29

393523R1

GEAR

reverse idler, 30 T

1шт.

30

205369R91

NEEDLE BEARING,Needle, 41.26mm ID x 50.81mm OD x 15.88mm W

BEARING, idler gear rear

1шт.

31

166957R91

NEEDLE BEARING,Needle, 41.26mm ID x 50.81mm OD x 31.75mm W

BEARING, idler gear front

1шт.

32

380300R1

THRUST WASHER,41.66mm ID x 60.96mm OD x 2.54mm Thk

idler gear thrust

3шт.

33

393525R2

GEAR

reverse drive, 34 T

1шт.

34

166957R91

NEEDLE BEARING,Needle, 41.26mm ID x 50.81mm OD x 31.75mm W

BEARING, drive gear

2шт.

35

393524R1

COLLAR

forward reverse shift

1шт.

36

ST2135

BEARING ASSY,33.34mm ID x 19.58mm W

IPTO driven shaft cone

1шт.

37

ST991

BEARING CUP

BEARING, IPTO driven shaft cup

1шт.

38

380319R1

PINION

GEAR, pump drive, 61 T

1шт.

39

384341R1

RING, SNAP

RING, pump drive gear retaining

1шт.

40

65448C1

TUBE

ASSY, pressure lub, also order ring, 65447C1, 1066, Serial Range: -30373

1шт.

40

65448C1

TUBE

ASSY, pressure lub, also order ring, 65447C1, 1466, Serial Range: -18216

1шт.

40

65448C1

TUBE

ASSY, pressure lub, also order ring, 65447C1, 1468, Serial Range: -955

1шт.

41

65447C1

RING

lub tube seal, 1066, Serial Range: -30373

1шт.

41

65447C1

RING

lub tube seal, 1466, Serial Range: -18216

1шт.

41

65447C1

RING

lub tube seal, 1468, Serial Range: -9555

1шт.

42

380285R1

CAGE

main shaft bearing, 1066 - hi-clear tractors

1шт.

380286R1

BOLT,Flg, 1/2" - 13 x 1 1/2"

main shaft bearing cage

2шт.

43

68688C1

TUBE

ASSY, pressure lub, 1066, Start Serial: 30374

1шт.

43

68688C1

TUBE

ASSY, pressure lub, 1466, Start Serial: 18217

1шт.

43

68688C1

TUBE

ASSY, pressure lub, 1066 - 1468, Start Serial: 9556

1шт.

44

67745C1

SEALING RING

main shaft fitting, 1066, Start Serial: 30374

1шт.

44

67745C1

SEALING RING

main shaft fitting, 1466, Start Serial: 18217

1шт.

44

67745C1

SEALING RING

main shaft fitting, 1468, Start Serial: 8556

1шт.

120265C91

GEAR-SET

PACKAGE, bevel gear and pinion, consists of (1) shaft, 13T (NSS), (1) bevel gear 15T, (NSS), (1) shim 380283R2, (2) shim 380284R2, (2) retainer 529464R1, (1) bearing 528684R91, (1) washer 359081R1, (1) nut 359082R2, (1) instruction (NSS)

1шт.
