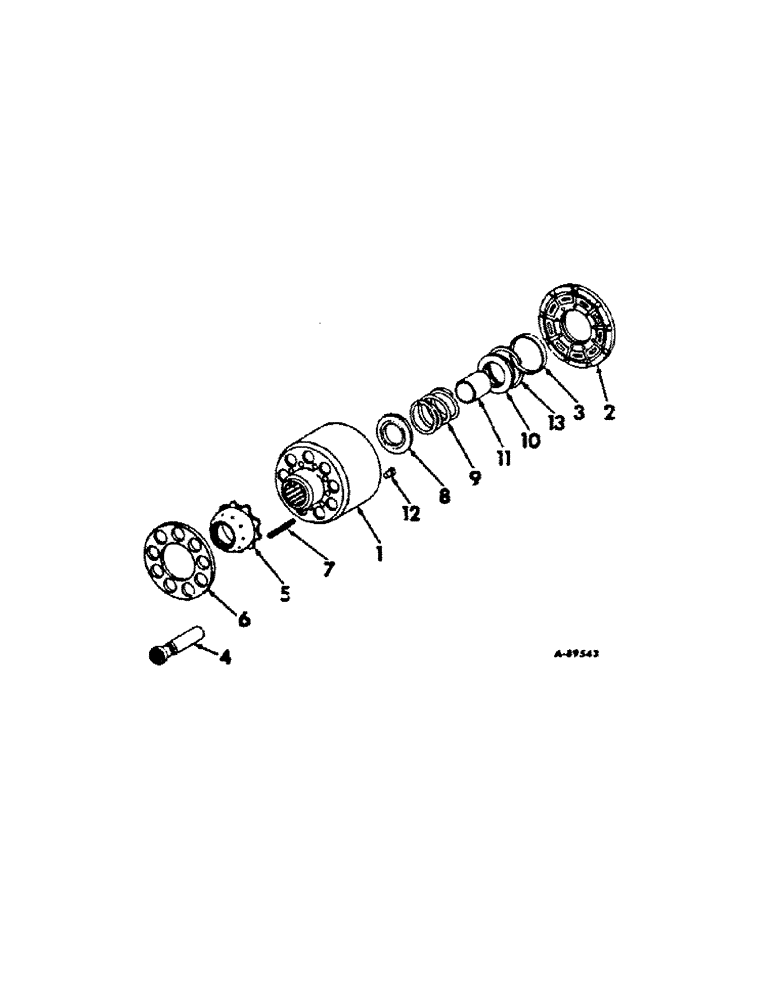

Запчасти Case IH 1066 (07-24[A]) - DRIVE TRAIN, MOTOR CYLINDER BLOCK KIT, 1066 HYDROSTATIC DRIVE AND HYDRO 100 TRACTORS (04) - Drive Train

1

70495C1

BLOCK

ASSY, cylinder, replaces 527637R1 by also ordering six springs, 70496C1

1шт.

2

527638R1

PLATE ASSY.

PLATE, bearing

1шт.

3

527639R1

GUIDE

PILOT, bearing plate

1шт.

4

71607C1

PISTON

ASSY, replaces 538707R1, 4.237 overall length without the swivel cap, 1.1079 OD

9шт.

5

527641R1

GUIDE

slipper retainer

1шт.

6

527642R1

LARGE PLATE

RETAINER, slipper

1шт.

7

527643R1

VALVE SPRING

SPRING, slipper retainer guide, for block assy, 527637R1

9шт.

7

70496C1

VALVE SPRING

SPRING, slipper retainer guide, for block assy, 70495C1

6шт.

8

527644R1

SEAT

spring

1шт.

9

527645R1

SPRING

cylinder block

1шт.

10

527646R1

RETAINER

spring

1шт.

11

527647R1

GUIDE

spring

1шт.

12

527648R1

PIN

piston cylinder

1шт.

13

23811R1

RING, internal retaining

1шт.

65022C92

PACKAGE

hydrostatic motor piston and plate kit service, Replaces 65022C91, consists of (9) piston 71607C1, (1) plate 527638R1, (1) plage 71609C1

1шт.
