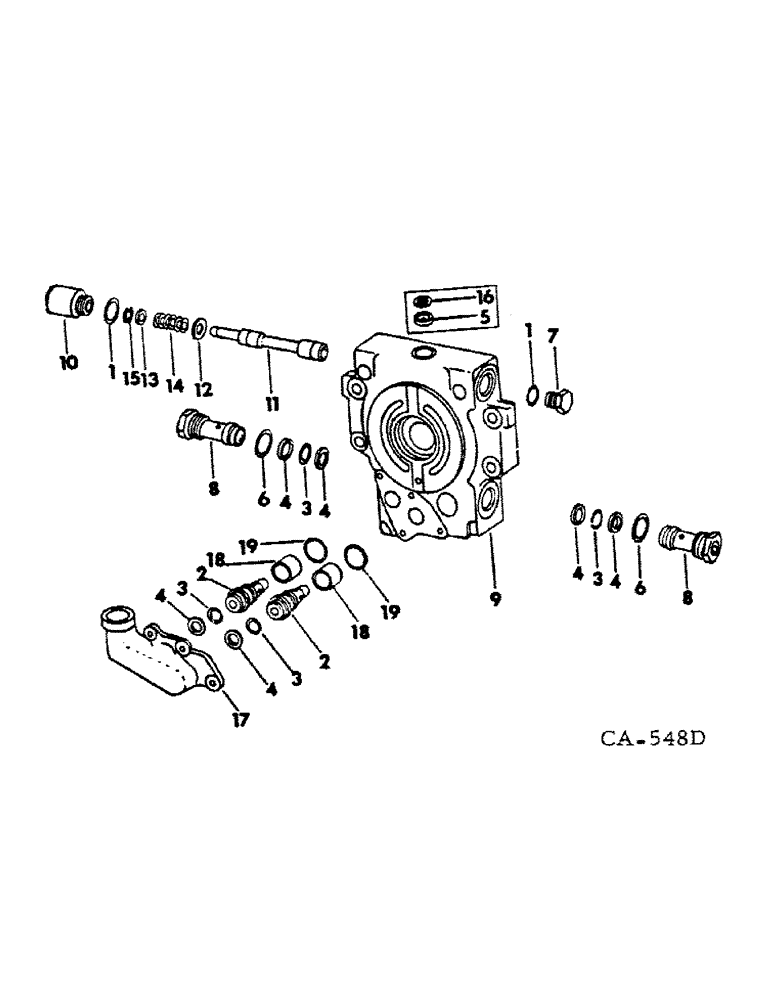

Запчасти Case IH 1066 (07-23) - DRIVE TRAIN, CENTER SECTION BODY, 966 AND 1066 HYDROSTATIC DRIVE AND HYDRO 100 TRACTORS (04) - Drive Train
№
Артикул
Название
Примечание
Количество
1
368269R1
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
59/64 x 1-1/16 x 7/64, shuttle valve retaining plugs
2шт.
2
528345R1
CHECK VALVE
VALVE ASSY, check
2шт.
3
20947R1
O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro
13/16 x 1 x 3/32, check & relief valves
4шт.
4
393887R1
BACK-UP RING
WASHER, back-up, check & relief valve o-rings
6шт.
5
528404R1
PLUG, orifice, used only with center section bodies, 406374R3 and 406376R3
1шт.
6
297459R1
O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro
1-3/64 x 1-7/32 x 7/64
2шт.
7
405512R1
PLUG
shuttle valve
1шт.
8
531770R2
VALVE, PRESSURE RELI
VALVE ASSY, relief
2шт.
9
406374R4
BODY ASSY, center section, includes ref nos 1, 7 and 10 through 15, 966 tractors
1шт.
9
406376R4
BODY
ASSY, center section, includes ref nos 1, 7 and 10 through 15, 1066 and hydro 100 tractors
1шт.
10
396067R1
PLUG
shuttle valve spring retainer
1шт.
11
406379R1
VALVE
center section shuttle, code A
1шт.
11
406380R1
VALVE
center section shuttle, code B
1шт.
11
406381R1
VALVE
center section shuttle, code C
1шт.
11
406382R1
VALVE
center section shuttle, code D
1шт.
11
406383R1
VALVE
center section shuttle, code E
1шт.
11
406384R1
VALVE
center section shuttle, code F
1шт.
12
396063R2
WASHER
shuttle valve inner
1шт.
13
396064R2
WASHER
shuttle valve outer
1шт.
14
531079R1
SPRING
shuttle valve centering
1шт.
15
396066R1
SNAP RING,#46, .433", Ext
RING, shuttle valve snap
1шт.
16
529376R1
STRAINER ELEMENT
SCREEN, orifice, used only with center section bodies, 406374R3 and 406376R3
1шт.
17
406340R1
MANIFOLD
check valve
1шт.
560164R1
SCREW,Hex, 3/8"-16 x 7/8", G8, Full Thd
3/8-16 x 7/8 hex-hd cap type 4
2шт.
20841R1
BOLT,Hex, 3/8" - 16 x 2 5/8", Gr 8
SCREW, 3/8-16 x 2-5/8 hex-hd cap type 4
1шт.
18
406991R2
SPACER
Check valve
2шт.
19
406657R1
RING
check valve sealing
2шт.
393885R91
GASKET KIT
PACKAGE, relief valve seal, consists of o-ring, 20947R1, o-ring, 297459R1 & two rings, 393887R1
1шт.
CODE, valve to match aplha code stamped on center section body.
1шт.
Выбрано товаров: 29
