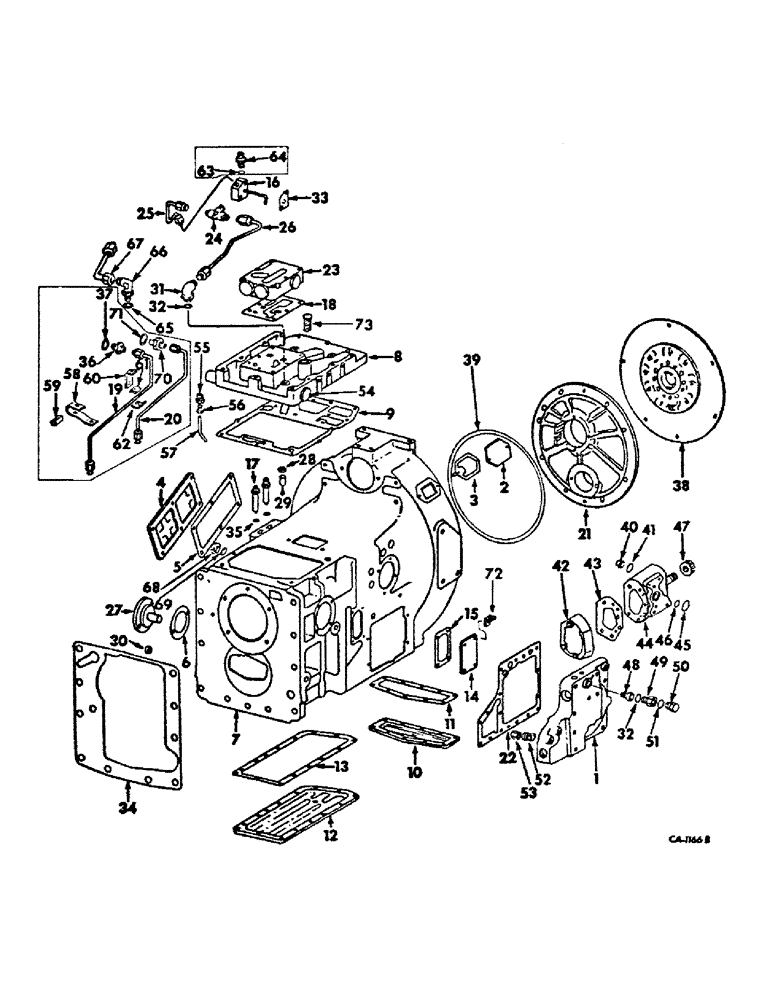

Запчасти Case IH 1066 (07-14) - DRIVE TRAIN, HYDROSTATIC HOUSING COVERS, DRIVE PLATE, HYD. PUMPS, MULT. CONTROL VALVE & CONNECTIONS (04) - Drive Train

1

VALVE ASSY, multiple control, for components see list of parts under details of multiple control valve listing, this group

1шт.

179845

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 5

SCREW, 3/8-16 x 1-3/4 hex-hd cap

5шт.

186277

BOLT,Hex, 3/8" - 16 x 2 3/8", Gr 5

SCREW, 3/8-16 x 2-3/8 hex-hd cap

11шт.

179849

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

2шт.

2

104402C1

COVER

engine timing pointer, replaces 380073R1 used w/housing 533062R11

1шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

3

120027C1

POINTER

engine timing

1шт.

4

396041R3

BLOCK ASSY.

BLOCK, left side cover

1шт.

NLS

NO LONGER SERVICED

6шт.

116103

COPPER WASHER,10.31mm ID x 20.63mm OD x 1.65mm Thk

WASHER 3/8 copper

5шт.

5

396042R1

GASKET

left side cover block

1шт.

6

396796R1

GASKET

cam pivot shaft housing

1шт.

7

71492C91

HOUSING

ASSY, drive, replaces 533062R11, composed of (1) bearing 876871R91, (1) bushing 396024R1, (4) cork 104940, (1) cork 104941, (1) housing (NSS), (1) oil seal 376022R91, (2) pin 19904R1, (1) seat 381611R1

1шт.

19904R1

DOWEL,1/2" x 1"

PIN, 1/2 x 1 dowel

2шт.

20975R1

DRAIN PLUG,Sq Soc, 1 1/4"-11 1/2, NTPF

PLUG, 1-1/4 sq-soc-hd pipe, drive housing

2шт.

179893

BOLT,Hex, 1/2" - 13 x 3", Gr 5

SCREW, 1/2-13 x 3 hex-hd cap

2шт.

20661R1

BOLT,Hex, 5/8" - 11 x 2", Gr 8

SCREW, 5/8-11 x 2 hex-hd cap type 8

2шт.

570879R1

BOLT,Hex, 5/8" - 11 x 2 1/4", Gr 8

SCREW, 5/8-11 x 2-1/4 hex-hd cap type 8

6шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

25711R1

WASHER

.656 x 1.312 x .150

8шт.

8

532325R1

COVER

drive housing top

1шт.

375362R1

PIN,12.69mm OD x 34.8mm L

1/2 x 1-3/8 dowel

1шт.

445671

PLUG,Sq Hd, 1/8"-27 NPTF

1/8-27 auto sq-hd pipe

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

SCREW, 3/8-16 x 1-1/8 hex-hd cap

6шт.

179844

BOLT,Hex, 3/8" - 16 x 1 5/8", Gr 5

SCREW, 3/8-16 x 1-5/8 hex-hd cap

1шт.

413-630

BOLT,Hex, 3/8" - 16 x 1-7/8", Gr 5

3шт.

179847

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

9

406495R2

GASKET

drive housing top

1шт.

10

406497R1

COVER

bottom front

1шт.

445686

PLUG

3/8-18 auto sq. hd pipe

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3/8-16 x 7/8 hex-hd cap

10шт.

11

406498R1

GASKET

bottom front

1шт.

12

406499R2

COVER ASSY

COVER, bottom rear

1шт.

445686

PLUG

3/8-18 auto sq-hd pipe

1шт.

20953R1

DRAIN PLUG,Sq Hd, 1 1/4"-11 1/2 NPTF

PLUG, 1-1/4-11-1/2 auto sq-hd pipe

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3/8-16 x 7/8 hex-hd cap

15шт.

13

406500R1

GASKET

bottom rear cover

1шт.

14

406501R1

COVER

right side

1шт.

179835

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

3шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

15

406502R1

GASKET

right side cover

1шт.

16

406503R1

BLOCK

ASSY, lub, order block assy, 68230C1 and tube assy, 68233C1

1шт.

179822

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

2шт.

16

68230C1

BLOCK

ASSY, lub

1шт.

179814

SPACER

2шт.

17

406546R1

UNION

7/16-20 37 deg bulk head, tube to drive housing

2шт.

18

406548R1

GASKET

multi-valve body

1шт.

19

406549R1

TUBE

ASSY, power steering return, 966, Serial Range: -14918

1шт.

19

406549R1

TUBE

ASSY, power steering return, 1066, Serial Range: -18611

1шт.

19

65736C1

TUBE,0.25" OD, 7.26, 0.62" Length

ASSY, power steering return lower, illustrated with power steering, 966, Start Serial: 14919

1шт.

19

65736C1

TUBE,0.25" OD, 7.26, 0.62" Length

ASSY, power steering return lower, illustrated with power steering, 1066, Start Serial: 18612

1шт.

19

65736C1

TUBE,0.25" OD, 7.26, 0.62" Length

ASSY, power steering return lower, illustrated with power steering, hydro 100 tractors

1шт.

20

406616R1

TUBE

ASSY, power steering pressure, 966, Serial Range: -14918

1шт.

20

406616R1

TUBE

ASSY, power steering pressure, 1066, Serial Range: -18611

1шт.

20

65375C1

TUBE

ASSY, power steering pressure lower, illustrated with power steering, 1066, Start Serial: 18612

1шт.

20

65375C1

TUBE

ASSY, power steering pressure lower, illustrated with power steering, 966, Start Serial: 14919

1шт.

20

65375C1

TUBE

ASSY, power steering pressure lower, illustrated with power steering, hydro 100 tractors

1шт.

21

406649R1

COVER

front brg support

1шт.

179883

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

8шт.

22

406716R2

GASKET

multiple control valve, heavy

1шт.

22

406717R2

GASKET

multiple control valve, light

1шт.

23

BODY ASSY, multiple valve, for components see list of parts under details of multiple valve body listing, this group

1шт.

179848

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

5шт.

179849

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

2шт.

24

532321R1

CROSS

lubrication

1шт.

25

529395R1

TUBE

ASSY, lub, front section, order tube assy, 68233C1 and block assy, 68230C1

1шт.

25

68233C1

TUBE

ASSY, lub, front section

1шт.

26

529396R1

TUBE

ASSY, lub, rear section

1шт.

27

406706R11

HUB CAP

HOUSING ASSY, cam pivot shaft

1шт.

19969R1

DOWEL,3/4" x 2 1/4"

PIN, 3/4 x 2-1/4 dowel

1шт.

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

382331R1

SEALING WASHER,8.33mm ID x 12.7mm OD x 0.79mm Thk

sealing

2шт.

28

376022R91

OIL SEAL

SEAL, oil

1шт.

29

396024R1

BUSHING,12.72mm ID x 19.11mm OD x 38.1mm L

cam actuating rod

1шт.

30

381611R1

SEAT

valve

1шт.

31

9410978

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8-14 37 deg hyd flared tube adj std thd 90 deg

1шт.

32

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32

2шт.

33

406506R1

GASKET

lub block

1шт.

34

406507R2

GASKET

drive housing to rear frame

1шт.

36

9410203

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

UNION, 3/4-16 37 deg hyd flared tube short swivel, 966, Serial Range: -14918

1шт.

36

9410203

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

UNION, 3/4-16 37 deg hyd flared tube short swivel, 1066, Serial Range: -18611

1шт.

37

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD tube, 966, Serial Range: -14918

1шт.

37

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD tube, 1066, Serial Range: -18611

1шт.

38

406036R91

PACKAGE

drive plate service, for 11 spline shaft, includes plate assy, six screws, 321964R1 & six washers, 103343, installing instructions, 1084272R1 (NSS) and lubricant, 531321R1 (NSS) & 1066 tractors

1шт.

38

69298C91

PACKAGE

drive plate service, for 13 spline shaft, includes plate assy, six screws, 321964R1 & six washers, 103343, installing instructions, 1084272R1 (NSS) and lubricant, 531321R1 (NSS), hydro 100 tractors (Replaces 69298C91)

1шт.

321964R1

BOLT

SCREW, w/nylon pellet insert, 1/2-13 x 7/8 hex-hd cap

6шт.

395-11053

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

17/32 x 1-1/16 x .074

6шт.

39

23072R1

O-RING,11.975" ID x 12.525" OD x 0.275"

12 x 12-1/2 x 1/4

1шт.

40

406712R1

TUBE

ASSY, pump suction

1шт.

41

252483R1

O-RING,-218, 70 Duro, 1.234" ID x .139" Thk

1-1/4 x 1-1/2 x 1/8, pump suction port

1шт.

42

378865R92

PUMP

ASSY, hydraulic gear, 4.5 gpm, THOMPSON, optional w/378866R93, for components see list of parts under details of hydraulic pump listing, group 10

1шт.

179849

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

4шт.

42

378866R93

HYDRAULIC PUMP

PUMP ASSY, hydraulic gear, 4.5 gpm, CESSNA, optional w/378865R92, for components see list of parts under details of hydraulic pump listing, group 10

1шт.

179848

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

4шт.

43

371543R2

GASKET

hydraulic pump

1шт.

44

70194C91

PUMP

ASSY, hydraulic gear, 12 gpm, THOMPSON pump, replaces 373964R94 and 374483R96 pumps, for components see list of parts under details of hydraulic pump listing, group 10

1шт.

179861

BOLT,Hex, 7/16" - 14 x 1 3/8", Gr 5

SCREW, 7/16-14 x 1-3/8 hex-hd cap

2шт.

179864

BOLT,Hex, 7/16" - 14 x 1 3/4", Gr 5

SCREW, 7/16-14 x 1-3/4 hex-hd cap

2шт.

52999D

WASHER

WASHER, pump mounting bolt sealing

4шт.

45

254691R1

O-RING,-211, 70 Duro, .796" ID x .139" Thk

13/16 x 1-1/16 x 1/8, pump pressure port large

1шт.

46

352221R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

9/16 x 3/4 x 3/32, pump pressure port small

1шт.

47

406714R1

GEAR WHEEL

GEAR, hydraulic pump drive, 22T

1шт.

19263R1

LOCK NUT,Hex, 5/8" - 18

NUT, 5/8-18 znp nylon insert

1шт.

48

406718R1

SCREEN

ASSY, strainer

1шт.

49

406721R1

UNION

PLUG, strainer

1шт.

50

9410356

PLUG

7/16-20 str thd o-ring boss

1шт.

52

531542R1

VALVE SPRING

SPRING, power steering return check valve

1шт.

53

354057R2

VALVE

power steering return check

1шт.

54

9410360

PLUG

7/8-14 str thd o-ring boss

1шт.

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32

1шт.

55

157221

CONNECTOR, threaded sleeve

1шт.

56

114963

SLEEVE - small hex threaded

1шт.

57

406496R1

TUBE

motor lubrication

1шт.

58

40116R1

BRACKET ASSY, power steering return tube, 966, Serial Range: -14918

1шт.

58

40116R1

BRACKET ASSY, power steering return tube, 1066, Serial Range: -18611

1шт.

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

59

531133R1

HOSE, power steering return tube bracket, 966, Serial Range: -14918

1шт.

59

531133R1

HOSE, power steering return tube bracket, 1066, Serial Range: -18611

1шт.

60

531817R1

BRACKET, tube support, 966, Serial Range: -14918

1шт.

60

531817R1

BRACKET, tube support, 1066, Serial Range: -18611

1шт.

17444R1

SCREW - 1/4-20 x 1-1/4 hex-hd cap

1шт.

61

369758R1

CLAMP

power steering tube, 966, Serial Range: -14918

1шт.

61

369758R1

CLAMP

power steering tube, 1066, Serial Range: -18611

1шт.

62

369758R11

CLAMP ASSY, power steering tubes, 966, Serial Range: -14918

1шт.

62

369758R11

CLAMP ASSY, power steering tubes, 1066, Serial Range: -18611

1шт.

63

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, used only with block assy, 406503R1

1шт.

64

9410202

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring

UNION, 9/16-18 37 deg hyd flared tube short swivel, used only with block assy, 406503R1

1шт.

65

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

66

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

9/16-18 37 deg hyd flared tube adj str thd 90 deg

1шт.

67

532322R2

TUBE

ASSY, pump lubrication

1шт.

68

406508R1

PLUG

hollow hex

1шт.

69

307915R1

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1-15/32 x 1-11/16 x 7/64

1шт.

70

9410202

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring

UNION, 9/16-18 37 deg hyd flare tube short swivel, 966, Serial Range: -14918

1шт.

70

9410202

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring

UNION, 9/16-18 37 deg hyd flare tube short swivel, 1066, Serial Range: -18611

1шт.

71

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 966, Serial Range: -14918

1шт.

71

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 1066, Serial Range: -18611

1шт.

72

67741C1

BRACKET

tube clip

1шт.

73

539106R1

STRAINER ASSY.

STRAINER, suction line

1шт.

20975R1

DRAIN PLUG,Sq Soc, 1 1/4"-11 1/2, NTPF

PLUG, 1-1/4 sq-soc-hd pipe

1шт.

69398C91

SPLINE, major ID 1.40, minor ID 1.204

1шт.

35

369384R1

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk, 5/16 OD tube

2шт.

51

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.
