Запчасти Case IH 1066 (07-10) - DRIVE TRAIN, CLUTCH BOOSTER (04) - Drive Train

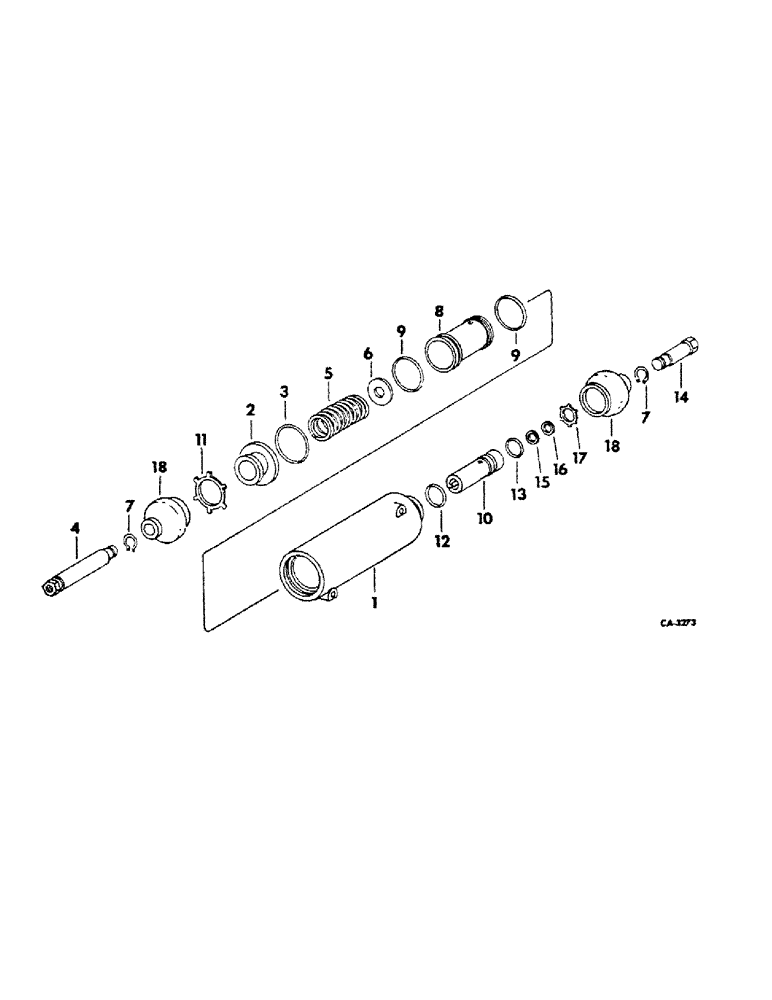

Схема запчастей Case IH 1066 - (07-10) - DRIVE TRAIN, CLUTCH BOOSTER (04) - Drive Train
3
1
10
6
18
5
2
9
16
12
18
7
7
11
8
9
14
13
4
15
17

Артикул

Название

Примечание

Количество

57107C91

BRACKET

BOOSTER ASSY, clutch

1шт.

1

57108C1

HOUSING, clutch booster

1шт.

Ref #1 - Not Serviced Separately

1шт.

2

57109C1

RETAINER

spring

1шт.

3

21924R1

O-RING,1.859" ID x 2.137" OD x 0.139"

1-7/8 x 2-1/8 x 1/8

1шт.

4

57110C1

SPARE PART

CONNECTOR, front, optional with 58683C1

1шт.

4

58683C1

SPARE PART

CONNECTOR, front, optional with 57110C1

1шт.

5

57111C1

SPRING

return

1шт.

6

57112C1

WASHER

1шт.

7

269192R1

SNAP RING,#50, Ext

Ring, Snap, #50, Ext

2шт.

8

57113C1

PISTON

1шт.

9

328138R1

O-RING,0.103" Thk x 1.612" ID, -130, Cl 5, 75 Duro

1-5/8 x 1-13/16 x 3/32

2шт.

10

57114C1

SPOOL

ASSY, booster

1шт.

11

567470R1

SNAP RING,2.25", Int, #225

Ring, Snap, 2.25", Int, #225

1шт.

12

376769R1

O-RING,0.07" Thk x 0.926" ID, -21, Cl 5, 75 Duro

15/16 x 1-1/16 x 1/16

1шт.

13

369908R1

O-RING,0.103" Thk x 0.799" ID, -117, Cl 5, 75 Duro

13/16 x 1 x 3/32

1шт.

14

57117C1

PLUG

CONNECTOR, rear

1шт.

15

387529R1

SPRING WASHER

1шт.

16

57118C2

RING, SNAP

RING, retaining

1шт.

17

58134C1

SPECIAL RING

RING, retaining

1шт.

18

57119C1

BOOT

rubber

2шт.

Выбрано товаров: 21
