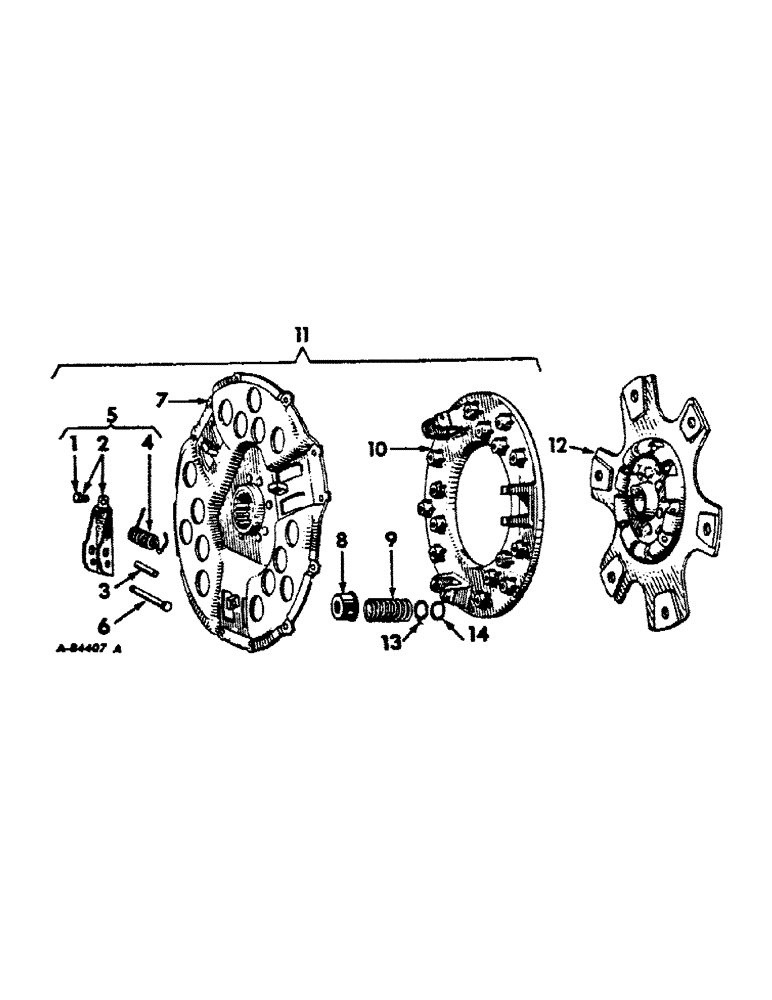

Запчасти Case IH 1066 (07-04) - DRIVE TRAIN, CLUTCH, 1066 GEAR DRIVE TRACTORS (04) - Drive Train

1

163479R3

ADJUSTMENT SCREW,Hex, 3/8" - 24 x 0.545", Drilled

SCREW, clutch lever adjusting

3шт.

2

390810R92

LEVER

LEVER ASSEMBLY, clutch

3шт.

3

146810R1

AXLE PIN

PIN, lever pivot

3шт.

4

390809R2

SPRING

SPRING, clutch lever

3шт.

5

390808R92

PACKAGE

PACKAGE, clutch lever assembly

1шт.

6

146809R1

PIN

PIN, clutch lever

3шт.

1030373

AUGER

PIN, 3/32 x 3/4 cot

3шт.

120394

WASHER,3/8", SAE

WASHER, 11/32 x 11/16 x .065 znd

3шт.

7

390806R92

PLATE

PLATE ASSEMBLY, clutch back

1шт.

8

353316R1

SPRING CUP

CUP, clutch pressure spring

12шт.

9

172062R1

SPRING

SPRING, clutch pressure

12шт.

10

390807R1

PLATE ASSY.

PLATE, clutch pressure

1шт.

11

390254R94

TRAY

PLATE ASSY, clutch pressure

1шт.

11

120181C92R

REMAN-CLUTCH PLATE

Remanufactured Clutch Plate inc. 12 Springs

1шт.

11

120181C92C

CORE-CLUTCH PLATE

Return Part Number

1шт.

11

389769A1

REMAN-CLUTCH KIT

1066, Kit Includes: 1 - 120181C92R Plate w/12 Springs, 1 - 393117R93R Disc, 1 - 69789C91 Pkg., 1 - 524598R91 Brg.

1шт.

11

389769A1C

CORE-CLUTCH KIT

Return Part Number

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

BOLT, 3/8-16 x 7/8 hex-hd cap

12шт.

12

393117R92

CLUTCH DISC

CLUTCH DISK DISC ASSY, clutch driven, Dyna Life

1шт.

12

393117R93R

REMAN-CLUTCH DISC

Remanufactured, Clutch Disc - 14 in., 11Tooth hub, 6 paddle, N.A. Only

1шт.

12

393117R93C

CORE-CLUTCH DISC

Return Part Number

1шт.

13

311291C1

INSULATING WASHER

WASHER, insulating

12шт.

14

311292C1

WASHER

WASHER, retainer

12шт.
