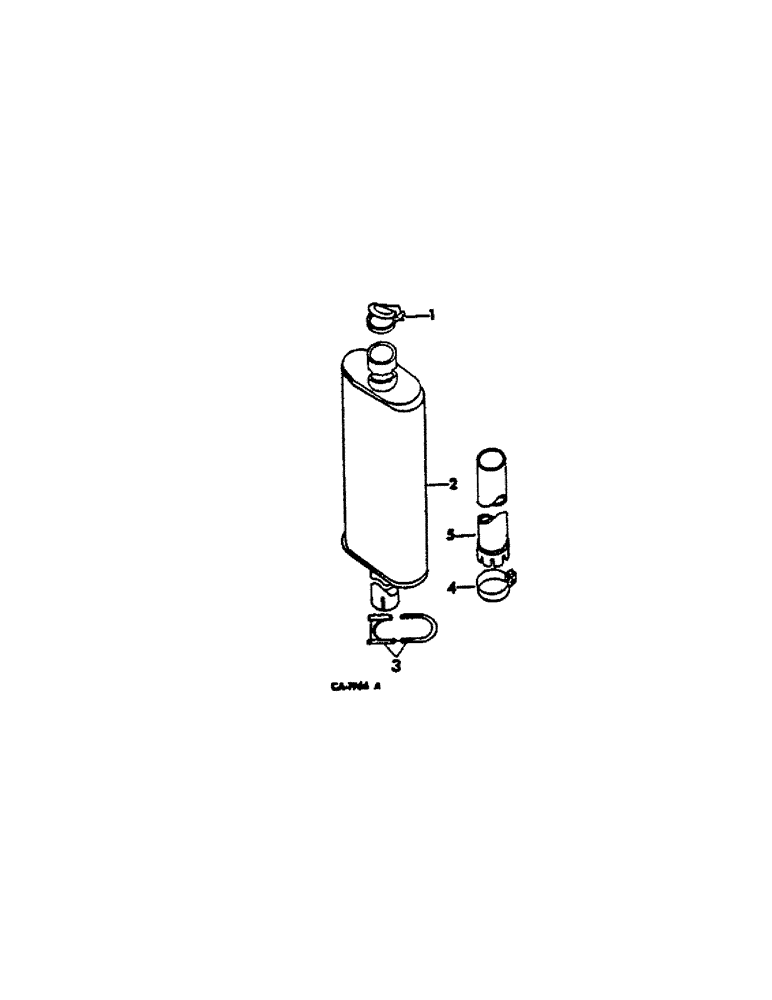

Запчасти Case IH 1066 (12-20[A]) - POWER, EXHAUST SYSTEM, 1066 AND 1466 TRACTORS Power

1

321863R91

CAP

ASSY, exhaust, replaces 530750R1

1шт.

2

534546R5

MUFFLER

ASSY, exhaust

1шт.

3

68218C91

CLAMP

PACKAGE, muffler clamp assembly service, consists of (1) clamp 535990R1 (NSS), (2) nut 535993R1, (1) u-bolt 535991R1 (NSS)

1шт.

535993R1

NUT

muffler clamp

2шт.

4

530925R1

CLAMP,88.9mm - 92.71mm

exhaust, tractors w/cab

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

180129

BOLT,Hex, 3/8" - 16 x 1 7/8"

SCREW, 3/8-16 x 1-7/8 CAD hex-hd cap

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

5

530819R1

TUBE

PIPE, exhaust extension, tractors w/cab

1шт.
