(06-07[A]) - COOLING, RADIATOR AUXILIARY SCREEN

Запчасти Case IH 1066 (06-07[A]) - COOLING, RADIATOR AUXILIARY SCREEN Cooling

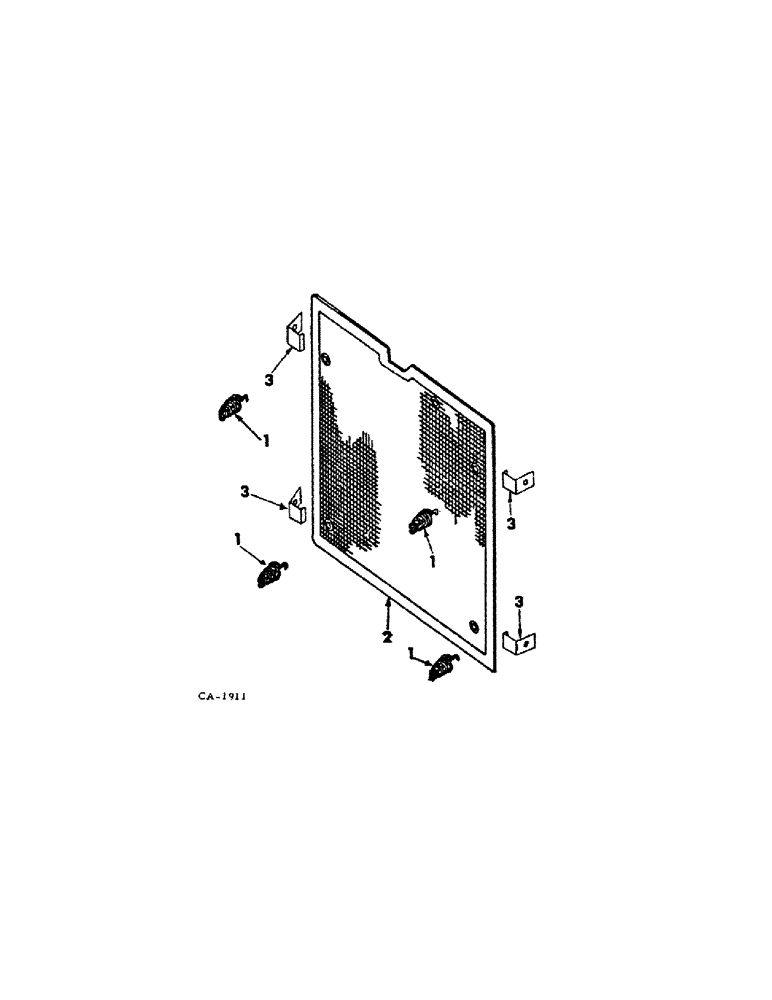

Схема запчастей Case IH 1066 - (06-07[A]) - COOLING, RADIATOR AUXILIARY SCREEN Cooling
1
1
2
3
3
3
3
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

534635R91

STRIPPER PACKAGE

PARTS ACCESSORY, radiator auxiliary screen

1шт.

1

392525R1

FASTENER

coil spring

4шт.

2

SCREEN, radiator auxiliary, not available separately order parts accessory, 534635R91

1шт.

3

534634R1

CLIP

screen fastener

4шт.

436765

SCREW, 12-24 x 3/8 C-Z slt-pan-hd mach

4шт.

492-11012

LOCK WASHER,#12

Washer, Lock, #12

4шт.

225-14112

NUT,#12-24

12-24 znd hex. mach screw

4шт.

Выбрано товаров: 7
