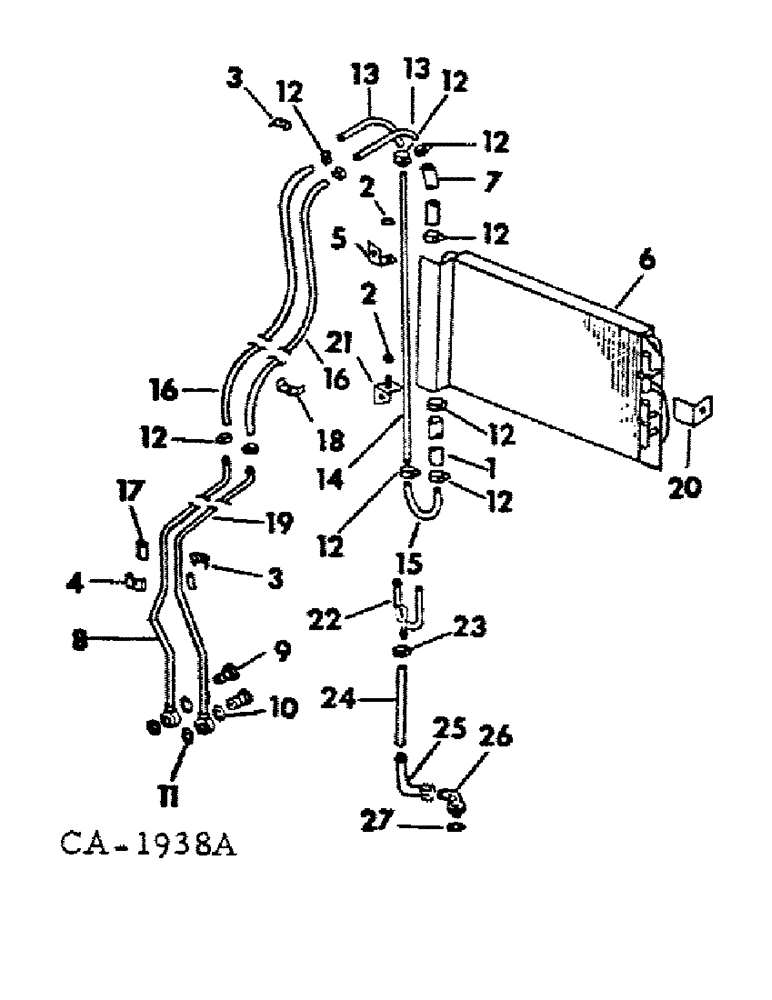

Запчасти Case IH 1066 (06-02) - COOLING, OIL COOLER AND CONNECTIONS, GEAR DRIVE TRACTORS Cooling

1

HOSE, oil cooler pipe lower, 2.5 in. required from a bulk roll marked 73199C1

1шт.

2

387327R1

BUSHING

BUSHING, oil cooler pivot

2шт.

3

384855R1

CLAMP

CLAMP, oil cooler pipes

2шт.

179795

TILLAGE BLADE

SCREW, 1/4-20 x 3/4 hex-hd cap

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

4

384855R11

CLAMP

CLAMP ASSY, oil cooler rear pipes

1шт.

179797

BOLT,Hex, 1/4" - 20 x 1", Gr 5

BOLT, Hex, 1/4"-20 x 1", G5

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

5

533235R1

HINGE

HINGE, upper mounting

1шт.

6

120300C1

COOLER

COOLER ASSY, oil, replaces 533233R1

1шт.

7

HOSE, oil cooler inlet pipe upper, 80 in. required from a bulk roll marked 73199C1

1шт.

8

533245R1

SPARE PART TUBE ASSY, oil cooer inlet rear, 766 gasoline, 966, 1066, 1466 and 1468 tractors

1шт.

8

66000C1

SPARE PART TUBE ASSY, oil cooler inlet rear, 766 diesel tractors

1шт.

9

384577R1

NIPPLE, LUBE

NIPPLE PLUG, inlet rear tube union

2шт.

10

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

O-RING, 41/64 x 13/16 x 3/32

2шт.

11

384578R1

O-RING,0.07" Thk x 0.801" ID, -19, Cl 6, 90 Duro

O-RING, 13/16 x 15/16 x 1/16

2шт.

12

274085R91

HOSE CLAMP,#10, 0.56/1.06 Type F Worm

CLAMP, oil cooler hose

10шт.

13

387328R1

SPARE PART PIPE, oil cooler upper

2шт.

14

HOSE, oil cooler outlet, 24 in. required from a bulk roll marked 73199C1

1шт.

15

533243R1

PIPE

SPARE PART PIPE, oil cooler front lower

1шт.

16

73199C1

HOSE

HOSE, oil cooler, 80 in. required from a bulk roll marked 731989C1 (Replaces DASHPART)

2шт.

17

HOSE, tube bumper, furnish two inches from six inch hose, 535257R1

2шт.

18

120849H

COLLAR CLAMP

GUIDE, oil cooler hose, 766 and 966 tractors

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

BOLT, Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

18

384586R1

GUIDE

GUIDE, oil cooler hose, 1066, 1466 and 1468 tractors

1шт.

179812

GEAR

SCREW, 5/16-18 x 3/4 hex-hd cap

1шт.

19

533246R1

TUBE

SPARE PART TUBE ASSY, oil cooler outlet rear, 766 gasoline, 966, 1066, 1466 and 1468 tractors

1шт.

19

66001C1

SPARE PART TUBE ASSY, oil cooler outlet rear, 766 diesel tractors 12.7 mm OD, 528.32, 222.5 mm Length

1шт.

20

533241R1

BRACKET

BRACKET ASSY, oil cooler latch

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

BOLT, Hex, 3/8"-16 x 3/4", G5, Full Thd

1шт.

95-11034

WASHER,1/4"

WASHER, 11/32 x 11/16 x .051

1шт.

129-419

WING NUT,5/16"-18

NUT, 5/16-18 wing

1шт.

21

533236R1

BRACKET

BRACKET ASSY, oil cooler mounting

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

BOLT, 3/8-16 x 7/8 hex-hd cap

2шт.

22

534682R1

SPARE PART PIPE ASSY, steering relief, tractors w/ tricycle front upper bolster

1шт.

23

279025R91

HOSE CLAMP,#06, .44/.78 Type F Worm

HOSE CLAMP, , Tractors w/tricycle front upper bolster #06, .44/.78 Type F Worm

2шт.

24

HOSE, pivot shaft cover to oil cooler, use 11.5 in. from a 50 ft roll marked, 526601R1, tractors w/tricycle front upper bolster

1шт.

25

406053R1

TUBE

SPARE PART TUBE ASSY, relief, tractors w/tricycle front upper bolster

1шт.

26

9411104

ELBOW,45 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

ELBOW, 9/16-18 37 deg hyd flared tube adj-str-thd 45 deg, tractors w/tricycle front upper bolster

1шт.

27

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

O-RING, 6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube, tractors w/tricycle front upper bolster

1шт.
