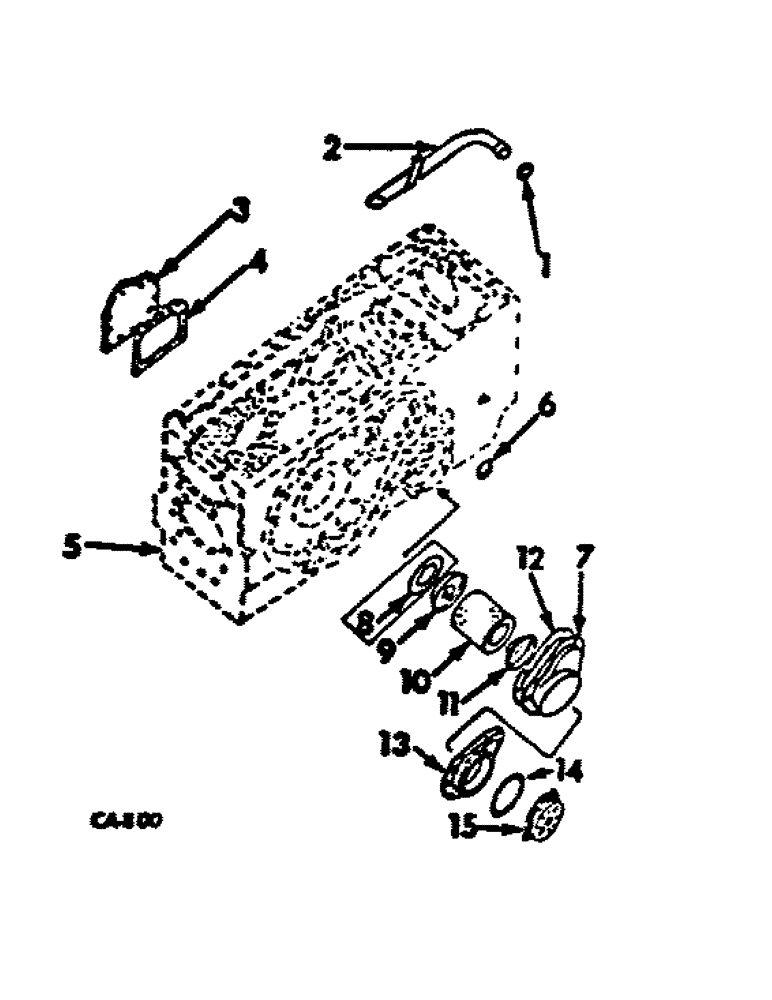

Запчасти Case IH 1066 (10-06) - HYDRAULICS, HYDRAULIC OIL FILTER (07) - HYDRAULICS

1

360610R1

O-RING,1.609" ID x 0.139" Width

1-5/8 x 1-7/8 x 1/8, hydraulic filter suction tube

1шт.

2

382240R21

HYD TUBE,13.7" Length

TUBE ASSY, hyd filter suction

1шт.

NLS

NO LONGER SERVICED

1шт.

3

382243R1

COVER ASSY

COVER, pump opening, gear drive tractors

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3/8-16 x 7/8 hex-hd cap

12шт.

4

382244R2

GASKET

pump opening cover, gear drive tractors

1шт.

5

FRAME ASSY, rear, refer to rear frame, cover and connections listing, group 7

1шт.

6

382242R1

RETAINER

filter suction tube

1шт.

7

Not used in this application

1шт.

8

382247R1

O-RING,5.237" ID x 0.103" Width

RING, square sealing, 766, Serial Range: -7514

1шт.

8

382247R1

O-RING,5.237" ID x 0.103" Width

RING, square sealing, 966, Serial Range: -13040

1шт.

8

382247R1

O-RING,5.237" ID x 0.103" Width

RING, square sealing, 1066, Serial Range: -14586

1шт.

8

382247R1

O-RING,5.237" ID x 0.103" Width

RING, square sealing, 1466, Serial Range: -11336

1шт.

8

382247R1

O-RING,5.237" ID x 0.103" Width

RING, square sealing, 1468, Serial Range: -7307

1шт.

9

382246R21

RETAINER

ASSY, hyd filter cartridge

1шт.

10

528493R2

FILTER, ELEMENT

CARTRIDGE, hydraulic filter, for service replacement also order o-ring, 285253R1

1шт.

11

386121R92

VALVE

ASSY, hyd filter relief

1шт.

12

382257R1

GASKET

oil filter cover

1шт.

13

406038R1

FUNNEL

FRAME ASSY, filter

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

SCREW, 3/8-16 x 1-1/8 hex-hd cap

8шт.

14

285253R1

O-RING,0.139" Thk x 5.484" ID, -254, Cl 5, 75 Duro

5-1/2 x 5-3/4 x 1/8 filter frame

1шт.

15

406037R1

COVER ASSY

COVER, filter frame

1шт.

406040R1

SCREW,5/16" - 18 x 1.25"

filter cover

3шт.
