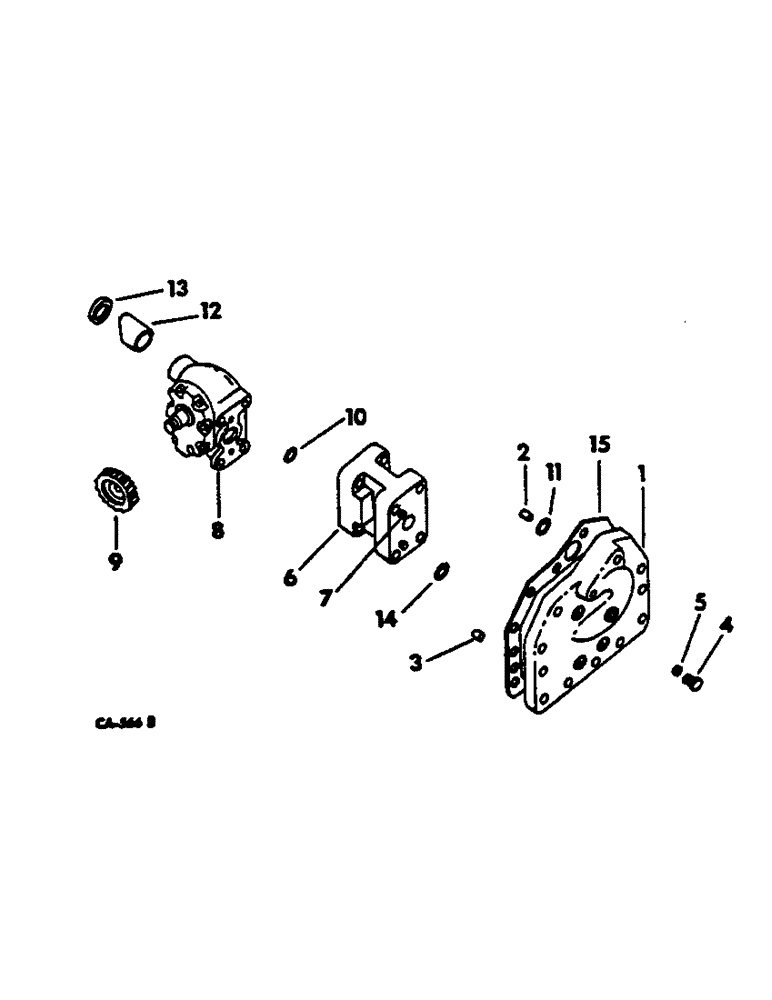

Запчасти Case IH 1066 (10-02) - HYDRAULICS, HYDRAULIC POWER SUPPLY IN REAR FRAME (07) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
537166R11
FLANGE
ASSY, pump mounting, includes ref nos 2 & 3
1шт.
179842
SPACER
3/8-16 x 1-3/8 hex-hd cap
10шт.
179847
BOLT,Hex, 3/8" - 16 x 2", Gr 5
2шт.
103321
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
12шт.
2
20031R1
DOWEL,3/8" x 5/8"
PIN, 3/8 x 5/8 dowel
2шт.
3
19954R1
DOWEL,5/16" x 5/8"
PIN, 5/16 x 5/8 dowel
2шт.
4
9410358
PLUG
9/16-18 C-Z hyd str thd o-ring boss, pump mounting flange
1шт.
5
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
6-1, 90 Duro, .468" ID x .078" Thk, pump mounting flange plug
1шт.
6
382753R11
SPACER
ASSY, hyd pump
1шт.
7
384116R1
PIN
hydraulic pump spacer
2шт.
8
70194C91
PUMP
ASSY, hydraulic gear, 12 GPM, Thompson optional w/70933C91
1шт.
8
70933C91
PUMP, HYDRAULIC
PUMP ASSY, hyd gear, 12 GPM, Cessna, optional w/70194C91, replaces 373964R94 and 374483R96 pumps, for components see list of parts under details of hydraulic pump
1шт.
8
1949296C1
REMAN-HYD PUMP
1066 (1/74-12/78), 1468 (1/72-12/77), 1468 (1/74-12/76), 966 (1/71-12/71), 766 (1/72-12/78), All 66 SERIES DIESEL TRACTOR, HYDRO 100, All INTERNATIONAL, PUMP ASSY
1шт.
8
1949297C1
CORE-HYDRAULIC PUMP
Return Number
1шт.
52999D
WASHER
GASKET, pump mounting bolt
4шт.
16252R1
SCREW, 7/16-14 x 4-3/4 hex-hd cap Hex, 7/16"-14 x 4 3/4", G5
4шт.
9
133404C1
GEAR
hyd pump drive 23 T, replaces 382754R2
1шт.
19263R1
LOCK NUT,Hex, 5/8" - 18
NUT, 5/8-18 nylon insert
1шт.
10
254691R1
O-RING,-211, 70 Duro, .796" ID x .139" Thk
13/16 x 1-1/16 x 1/8, pump pressure port large
1шт.
11
386867R1
O-RING,0.103" Thk x 1.11" ID, -122, Cl 6, 90 Duro
1-1/8 x 1-5/16 x 3/32, pump mtg flange to rear frame
1шт.
12
382755R2
TUBE,13.75 mm OD, 58.62 mm Length
pump section
1шт.
13
537545R92
SEAL
pump suction tube oil
1шт.
14
381884R1
O-RING,0.103" Thk x 0.987" ID, -120, Cl 6, 90 Duro
1 x 1-3/16 x 3/32, pump mounting flange to spacer
1шт.
15
382244R2
GASKET
pump mounting flange
1шт.
Выбрано товаров: 24
