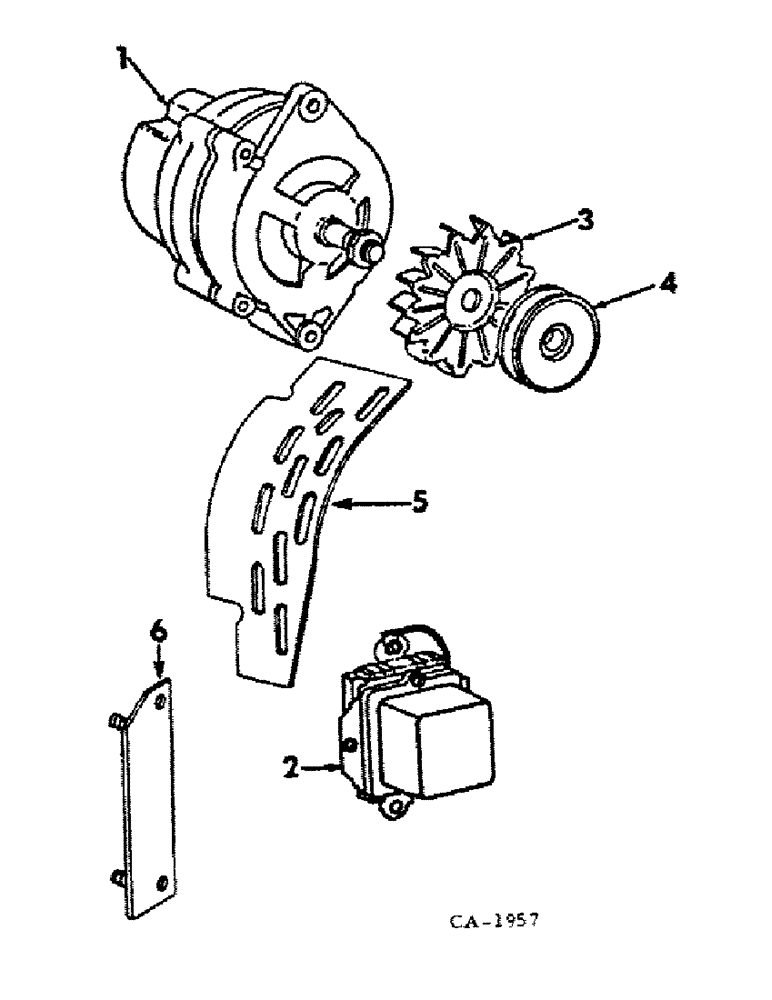

Запчасти Case IH 1066 (08-03) - ELECTRICAL, ALTERNATOR-GENERATOR & CONNECTIONS, W/ EXT. VOLTAGE REGULATOR, 966, 1066, & 1466 TRACTOR (06) - ELECTRICAL

1

1100805

GENERATOR

ALTERNATOR GENERATOR ASSY, 32 ampere, 702337C91, for components see list of parts under detail of alternator generator, 966, Serial Range: -11683

1шт.

1

1100805

GENERATOR

ALTERNATOR GENERATOR ASSY, 32 ampere, 702337C91, for components see list of parts under detail of alternator generator, 1066, Serial Range: -12509

1шт.

1

1100805

GENERATOR

ALTERNATOR GENERATOR ASSY, 32 ampere, 702337C91, for components see list of parts under detail of alternator generator, 1466, Serial Range: -10325

1шт.

1100883

GENERATOR

ALTERNATOR GENERATOR ASSY - 61 ampere, 532176R91, tractors w/air conditioned cab, for components see list of parts under details of alternator generator, 966, Serial Range: -11523

1шт.

1100883

GENERATOR

ALTERNATOR GENERATOR ASSY - 61 ampere, 532176R91, tractors w/air conditioned cab, for components see list of parts under details of alternator generator, 1066, Serial Range: -12275

1шт.

1100883

GENERATOR

ALTERNATOR GENERATOR ASSY - 61 ampere, 532176R91, tractors w/air conditioned cab, for components see list of parts under details of alternator generator, 1466, Serial Range: -10230

1шт.

87297244

REMAN-ALTERNATOR

Remanufactured Alternator - 61 Ampere, 1466 Tractor, Serial Range: -10230

1шт.

87297245

CORE-ALTERNATOR

Return Number Alternator, 61 Ampere

1шт.

103798A1GV

ALTERNATOR

Value, 12V, 63A

1шт.

103798A1R

REMAN-ALTERNATOR

Remanufactured Alternator, 63 Ampere

1шт.

103798A1C

CORE-ALTERNATOR

Return Number, 63 Ampere

1шт.

103801A1R

REMAN-ALTERNATOR

Remanufactured 12 Volt, 61 Amp Alternator

1шт.

103801A1C

CORE-ALTERNATOR

Return Number, 12 Volt, 61 Amp Alternator

1шт.

A47625

ALTERNATOR

ALTERNATOR - 12 Volt 72 Ampere

1шт.

103804A1GV

ALTERNATOR

Value, 12V, 72A

1шт.

103804A1R

REMAN-ALTERNATOR

Remanufactured Alternator

1шт.

103804A1C

CORE-ALTERNATOR

Return number

1шт.

103805A1R

REMAN-ALTERNATOR

Remanufactured Alternator, 12 Volt 55 Ampere

1шт.

103805A1C

CORE-ALTERNATOR

Return Number, 12 Volt 55 Ampere

1шт.

103806A1R

REMAN-ALTERNATOR

Remanufactured Alternator, 12 volt 60 Ampere

1шт.

103806A1C

CORE-ALTERNATOR

Return Number

1шт.

225-14112

NUT,#12-24

12-24 C-Z hex. mach screw

1шт.

9413953

LOCK NUT,3/8"-16, GB

NUT, 3/8-16 PHC hex. lock

1шт.

186282

BOLT,Hex, 3/8" - 16 x 3 1/4", Gr 5

SCREW, 3/8-16 x 3-1/4 hex-hd cap

1шт.

492-11012

LOCK WASHER,#12

Washer, Lock, #12

1шт.

2

1119507

GOVERNOR

REGULATOR ASSY, voltage, optional w/65303C1

1шт.

1962629

BRACKET

BRACKET ASSY, shock mount, optional w/65304C1

1шт.

2

65303C1

REGULATOR

REGULATOR ASSY, voltage, optional w/1119507

1шт.

65304C1

PACKAGE

BRACKET ASSY, shock mount, optional w/1962629

1шт.

109084

NUT,1/4"-20, G5

NUT, 1/4"-20, G5

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

3

221425R1

FAN

FAN, alternator generator

1шт.

4

384645R1

PULLEY

PULLEY, alternator generator

1шт.

4

537070R1

PULLEY

PULLEY, alternator generator, double groove, tractors w/air conditioned cab

1шт.

71197C91

STRIPPER PACKAGE

PACKAGE, alternator fan & pulley shield

1шт.

535994R1

SPARE PART BRACKET ASSY, voltage regulator mounting

1шт.

385544R1

SPACER,1/4" Pipe x 3/8"

SPACER, regulator mounting bracket

1шт.

385545R1

SPARE PART SPACER, regulator mounting bracket

1шт.

179797

BOLT,Hex, 1/4" - 20 x 1", Gr 5

BOLT, Hex, 1/4"-20 x 1", G5

1шт.

179805

BOLT,Hex, 1/4" - 20 x 2", Gr 5

SCREW, 1/4-20 x 1-7/8 hex-hd cap

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

5

SHIELD ASSY, alternator fan & pulley, on orders for shield 529546R2 or 537721R3 furnish package 71196C91

1шт.

6

400338R1

1шт.
