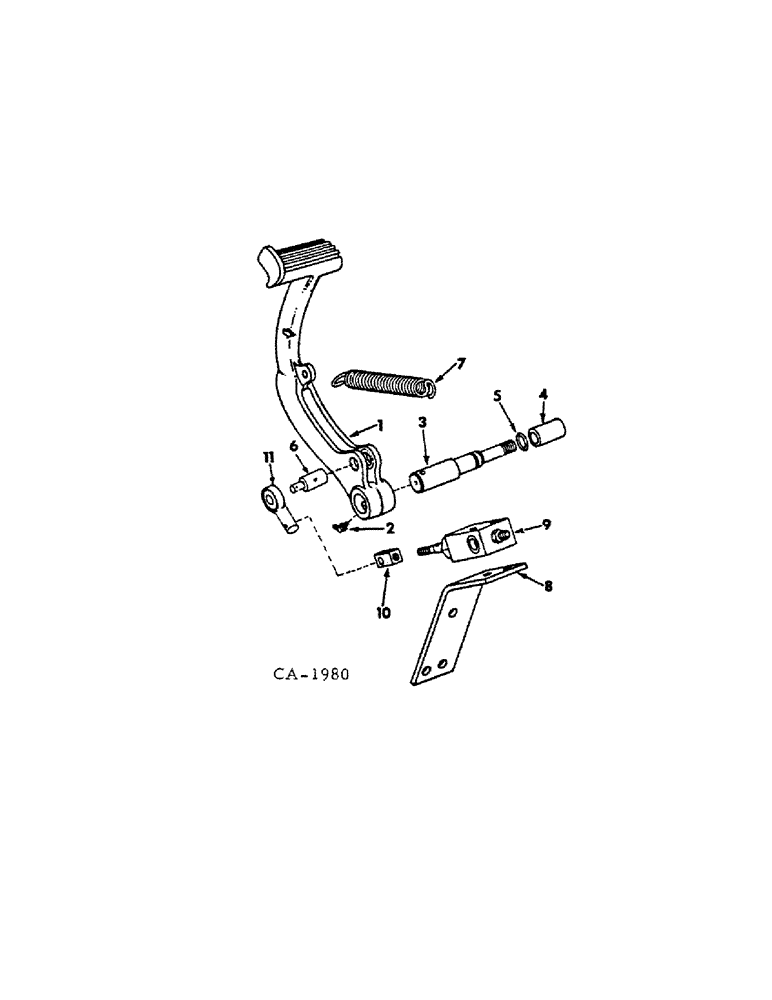

Запчасти Case IH 1066 (07-61) - DRIVE TRAIN, FOOT-N-INCH CONTROLS (04) - Drive Train

1

397468R1

PEDAL

foot-n-inch valve actuating

1шт.

2

219-53

LUBE NIPPLE,65 Degree Elbow, 3/16" NPTF

FITTING, 3/16 65 deg angle drive type lub

1шт.

3

395249R1

SHAFT

foot-n-inch valve pedal

1шт.

9413960

LOCK NUT,5/8"-11, GB

NUT, 5/8-11 hex lock

1шт.

Q3482

WASHER

1-5/32 x 1-3/4 x 11 ga

1шт.

32-1632

COTTER PIN,1/4" x 2"

PIN, SPLIT (COTTER), 1/4" x 2"

1шт.

4

364030R1

SPACER

pedal shaft

1шт.

5

310943R1

RING

O-RING, 11/16 x 13/16 x 1/16

1шт.

6

384047R1

BALL JOINT

PIN, foot-n-inch pedal pivot

1шт.

7

533355R1

VALVE SPRING

SPRING, foot-n-inch pedal return

1шт.

8

536542R1

BRACKET, foot-n-inch valve support

1шт.

179881

BOLT,1/2" - 13 x 1", Gr 5

3шт.

9

530331R91

LOCK VALVE

VALVE ASSY, foot-n-inch w/dash pot, for components, see list of parts under details of foot-n-inch valve this group

1шт.

102635

NUT,3/8"-16, G5

2шт.

114493

JAM NUT,Jam, 5/16"-24, G5

1шт.

179850

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5

SCREW, 3/8-16 x 2-3/4 hex-hd cap

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

10

398766R1

UNION

BAR, foot-n-inch valve adjusting

1шт.

Q1191

HEADED PIN,5/16" x 1 1/2"

PIN, 5/16 x 1-1/2 headed

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

11

536538R1

EYE, rod end

1шт.

103398

COTTER PIN,5/32" x 1 1/2"

Pin, Split (Cotter), 5/32" x 1 1/2"

1шт.
