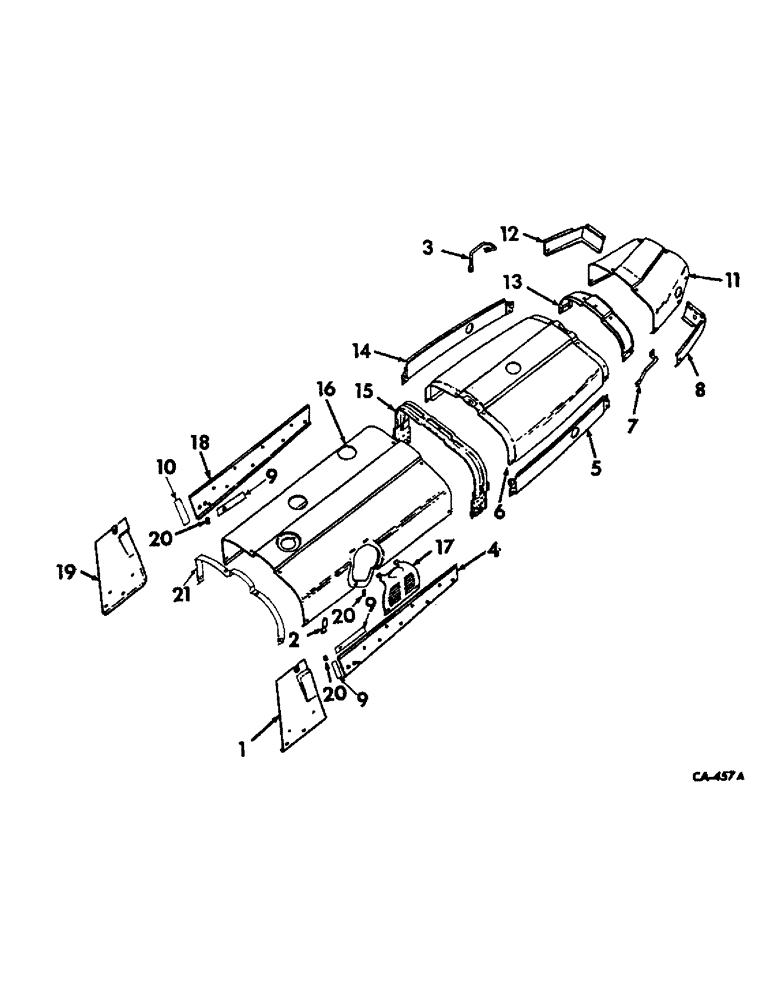

Запчасти Case IH 1026 (13-02) - SUPERSTRUCTURE, HOOD AND PANELS (05) - SUPERSTRUCTURE

1

397927R1

PANEL ASSY, LH radiator support

1шт.

385157R1

SCREW,Bevel Wshr Hd, 5/16" - 18 x 5/8"

5/16-18 hex. washer hd bevel cap

2шт.

2

369173R1

SPRING

hood panel

5шт.

110633

NUT,#10-24

5шт.

3

394820R2

HANDLE

operators mounting assist RH, Farmall tractors

1шт.

21534R1

BOLT,Hex, 5/16" - 18 x 1"

SCREW, 5/16-18 x 1 CDP hex-hd cap

1шт.

21535R1

SCREW, 5/16-18 x 1-1/4 CDP hex-hd cap

1шт.

4

406448R11

PANEL W/TWO plugs, 423327, LH front hood side, Farmall tractors without isomount bushings

1шт.

423327

TIE-ROD

PLUG, 1 in. button

2шт.

389872R1

THUMB SCREW,Knurled Head, 5/16"-18 x 3/4"

SCREW, front hood side panel thumb

2шт.

4

537396R1

PANEL W/TWO PLUGS, 423327, LH front hood side, Farmall tractors with isomount bushings

1шт.

423327

TIE-ROD

PLUG, 1 in. button

2шт.

389872R1

THUMB SCREW,Knurled Head, 5/16"-18 x 3/4"

SCREW, front hood side panel thumb

1шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16-18 x 1 C-Z hex-hd cap

1шт.

538068R1

SPACER, front hood side panel, 21/64 x 13/32 x 7/16

1шт.

536652R1

WASHER,11.13mm ID x 28.57mm OD x 1.22mm Thk

7/16 x 1-1/8 x .048 C-Z

1шт.

536653R1

RUBBER WASHER,8.74mm ID x 26.98mm OD x 2.39mm Thk

rubber

1шт.

4

406453R1

PANEL, LH hood front side, International tractors

1шт.

389872R1

THUMB SCREW,Knurled Head, 5/16"-18 x 3/4"

SCREW, front hood side panel thumb

2шт.

5

378638R1

PANEL, LH rear hood side, Farmall tractors

1шт.

5

378670R1

PANEL, LH rear hood side, all International tractors and Farmall tractors w/flar top deluxe fenders & adj headlights or tractors w/cab

1шт.

385157R1

SCREW,Bevel Wshr Hd, 5/16" - 18 x 5/8"

5/16-18 x 5/8 hex. washer hd bevel cap

2шт.

6

381412R1

HOOD

rear

1шт.

385157R1

SCREW,Bevel Wshr Hd, 5/16" - 18 x 5/8"

5/16-18 x 5/8 hex. washer hd bevel cap

2шт.

7

406067R2

HANDLE

operators mounting assist LH

1шт.

21534R1

BOLT,Hex, 5/16" - 18 x 1"

SCREW, 5/16-18 x 1 CDP hex-hd cap

1шт.

21535R1

SCREW, 5/16-18 x 1-1/4 CDP hex-hd cap

1шт.

8

406582R1

HOUSING, steering support lower LH

1шт.

385157R1

SCREW,Bevel Wshr Hd, 5/16" - 18 x 5/8"

5/16-18 x 5/8 hex. washer hd cap

1шт.

9

537393R1

SEAL, front hood side panel bottom, Farmall tractors with isomount bushings

1шт.

10

537394R1

SEAL, front hood side panel front, Farmall tractors with isomount bushings

1шт.

11

534511R1

HOUSING, steering and gear selector support w/liner, 534439R1

1шт.

11

534438R1

HOUSING, steering and gear selector support w/liner, 534439R1, tractors w/cab

1шт.

11

534510R1

HOUSING, steering & gear selector support w/liner, 534439R1, tractors with all wheel drive

1шт.

372784R1

SCREW,Hex Wshr Hd, 1/4" - 20 x 3/4"

1/4-20 x 3/4 hex-hd cap

1шт.

385157R1

SCREW,Bevel Wshr Hd, 5/16" - 18 x 5/8"

5/16-18 x 5/8 hex. washer-hd bevel cap

6шт.

12

527783R1

HOUSING, steering support lower RH

1шт.

432478

HOLE PLUG BUTTON,5/8"

PLUG, 5/8 C-Z button, auxiliary fuel tank switch mounting hole

1шт.

385157R1

SCREW,Bevel Wshr Hd, 5/16" - 18 x 5/8"

5/16-18 x 5/8 hex. washer hd bevel cap

1шт.

13

378640R11

REINFORCEMENT ASSY W/NUTS REAR HOOD

1шт.

131-883

SPRING NUT,Rtnr, 5/16" - 18

5/16-18 floating cage

2шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

SCREW, 5/16-18 x 1/2 hex-hd cap

4шт.

14

378639R1

PANEL, RH rear hood side Farmall tractors

1шт.

14

378671R1

PANEL

RH rear hood side, all International tractors and Farmall tractors w/flat top deluxe fenders & adj headlights or tractors w/cap

1шт.

385157R1

SCREW,Bevel Wshr Hd, 5/16" - 18 x 5/8"

5/16-18 x 5/8 hex. washer hd bevel cap

2шт.

15

395280R92

REINFORCEMENT

ASSY, rear hood front

1шт.

131-883

SPRING NUT,Rtnr, 5/16" - 18

5/16-18 floating cage

6шт.

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

4шт.

16

406446R91

HOOD ASSY, front, International tractors, Farmall tractors without isomount bushings

1шт.

131-883

SPRING NUT,Rtnr, 5/16" - 18

5/16-18 floating cage

2шт.

369222R1

BOLT,Hex Wshr Hd, 5/16" - 18 x 5/8"

SCREW, 5/16-18 x 5/8 CDP hex. washer hd cap

1шт.

389427R91

CAPTIVE WASHER SCREW,Hex, 5/16" - 18 x 3/4"

SCREW, 5/16-18 x 3/4 C-Z hex. washer hd cap

8шт.

16

537395R1

HOOD ASSY, front, Farmall tractors with isomount bushings

1шт.

131-883

SPRING NUT,Rtnr, 5/16" - 18

5/16-18 floating cage

2шт.

369222R1

BOLT,Hex Wshr Hd, 5/16" - 18 x 5/8"

SCREW, 5/16-18 x 5/8 CDP hex. washer hd cap

1шт.

373483R2

BOLT,Hex, 5/16" - 18

5/16-18 x 11/16 znd shoulder

4шт.

389427R91

CAPTIVE WASHER SCREW,Hex, 5/16" - 18 x 3/4"

SCREW, 5/16-18 x 3/4 C-Z hex. washer hd cap

4шт.

536653R1

RUBBER WASHER,8.74mm ID x 26.98mm OD x 2.39mm Thk

rubber

4шт.

536652R1

WASHER,11.13mm ID x 28.57mm OD x 1.22mm Thk

7/16 x 1-1/8 x .048 C-Z

4шт.

17

397881R1

GRILLE

COVER, front hood access

2шт.

389872R1

THUMB SCREW,Knurled Head, 5/16"-18 x 3/4"

SCREW, front hood access cover thumb

2шт.

18

406449R11

PANEL W/TWO PLUGS, 423327, RH front hood side, Farmall tractors without isomount bushings

1шт.

432327

HOLE PLUG BUTTON,1"

PLUG, 1 inch button

2шт.

389872R1

THUMB SCREW,Knurled Head, 5/16"-18 x 3/4"

SCREW, front hood side panel thumb

2шт.

18

537397R1

PANEL W/TWO PLUGS, 423327, RH front hood side, Farmall tractors with isomount bushings

1шт.

432327

HOLE PLUG BUTTON,1"

PLUG, 1 inch button

2шт.

389872R1

THUMB SCREW,Knurled Head, 5/16"-18 x 3/4"

SCREW, front hood side panel thumb

1шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16-18 x 1 C-Z hex-hd cap

1шт.

538068R1

SPACER, front hood side panel, 21/64 x 13/32 x 7/16

1шт.

536653R1

RUBBER WASHER,8.74mm ID x 26.98mm OD x 2.39mm Thk

rubber

1шт.

536652R1

WASHER,11.13mm ID x 28.57mm OD x 1.22mm Thk

7/16 x 1-1/8 x .048 C-Z

1шт.

18

406454R1

PANEL, RH front hood side, International tractors

1шт.

389872R1

THUMB SCREW,Knurled Head, 5/16"-18 x 3/4"

SCREW, front hood side panel thumb

2шт.

19

397928R1

PANEL ASSY, RH radiator support

1шт.

385157R1

SCREW,Bevel Wshr Hd, 5/16" - 18 x 5/8"

5/16-18 x 5/8 hex. washer hd bevel cap

2шт.

20

376787R1

WASHER

RETAINER, thumb screw, 4 used on Farmall tractors with isomount bushings

6шт.

21

537392R1

SEAL, front hood, Farmall tractors with isomount bushings

1шт.
