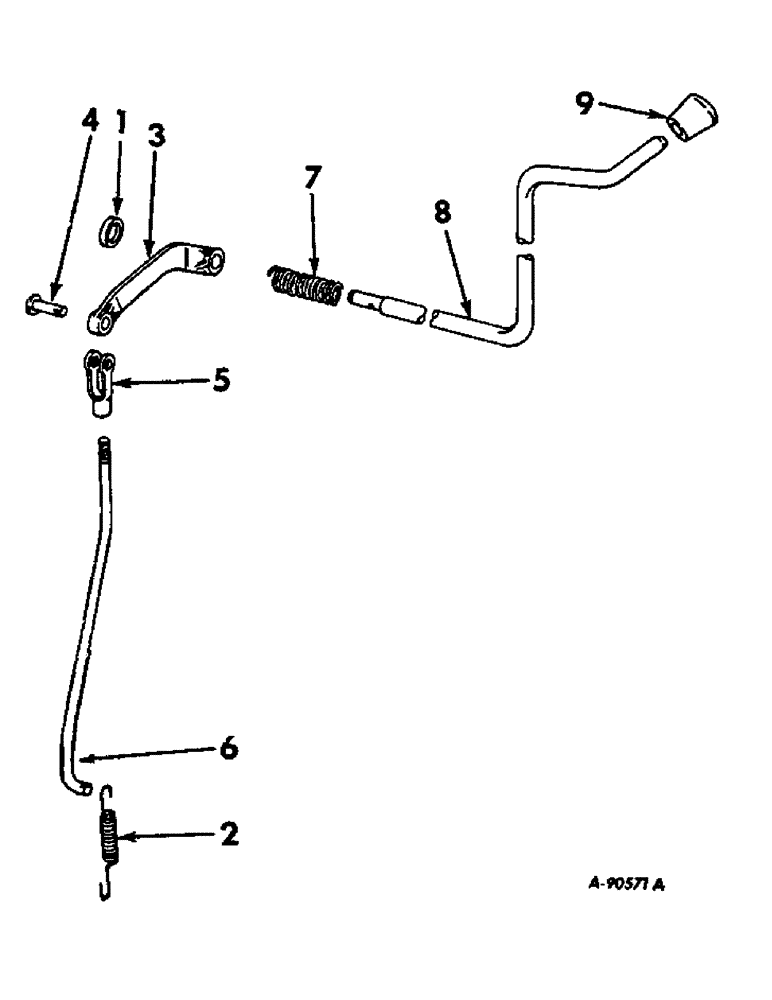

Запчасти Case IH 1026 (07-49) - DRIVE TRAIN, POWER TAKE-OFF LEVER AND CONNECTIONS (04) - Drive Train

1

382483R1

WASHER

DISC, PTO handle friction, Farmall tractors w/serial no. 9523 & below, International tractors w/serial no. 7548 & below

1шт.

1

533486R1

DRIVEN PLATE

DISC, independent PTO handle friction, Farmall tractors w/serial no. 9524 & above, International tractors w/serial no. 7549 & above

1шт.

2

401222R1

VALVE SPRING

SPRING, IPTO linkage anti-friction

1шт.

3

399632R1

ARM

independent PTO, Farmall tractors w/serial no. 9523 & below, International tractors w/serial no. 7548 & below

1шт.

3

533487R1

ARM

independent PTO, Farmall tractors w/serial no. 9524 & above, International tractors w/serial no. 7549 & above

1шт.

4

103496

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, , Independent PTO actuating rod end 3/8" x 1.060"

1шт.

107762

WASHER,3/32" x 5/8"

PIN, SPLIT, (COTTER), 3/32" x 5/8"

1шт.

5

104038

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

CLEVIS, 3/8-24 rod end adjustable

1шт.

114494

NUT,Jam, 3/8"-24, G5

1шт.

6

399633R1

ROD

independent PTO actuating

1шт.

107762

WASHER,3/32" x 5/8"

PIN, SPLIT, (COTTER), 3/32" x 5/8"

1шт.

95-11041

WASHER,3/8"

(13/32 x 13/16 x .065) 3/8"

1шт.

7

399635R1

VALVE SPRING

SPRING, independent PTO handle rod

1шт.

8

399634R2

ROD

independent PTO handle, Farmall tractors w/serial no. 9523 & below, International tractors w/serial no. 7548 & below

1шт.

8

533488R1

STEM

ROD, independent PTO handle, Farmall tractors w/serial no. 9524 & above, International tractors w/serial no. 7549 & above

1шт.

443023

GROOVED PIN,3/16" x 1", Type F

Pin, Grooved, 3/16" x 1", Type F

1шт.

9

387885R1

KNOB

independent PTO handle rod

1шт.

529144R1

SPACER

BUSHING, independent PTO lever, tractors with cab, illustrated with tractor cab and connections unit, see section 13

1шт.

529143R1

LEVER

ASSY, independent PTO, tractors with cab, illustrated with tractor cab and connections unit, see section 13

1шт.

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

SCREW, 3/8-16 x 2-1/2 znd hex-hd cap

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120394

WASHER,3/8", SAE

WASHER, 13/32 x 13/16 x .051 C-Z

1шт.

20803R1

WASHER

13/32 x 1 x 11 ga C-Z

1шт.
