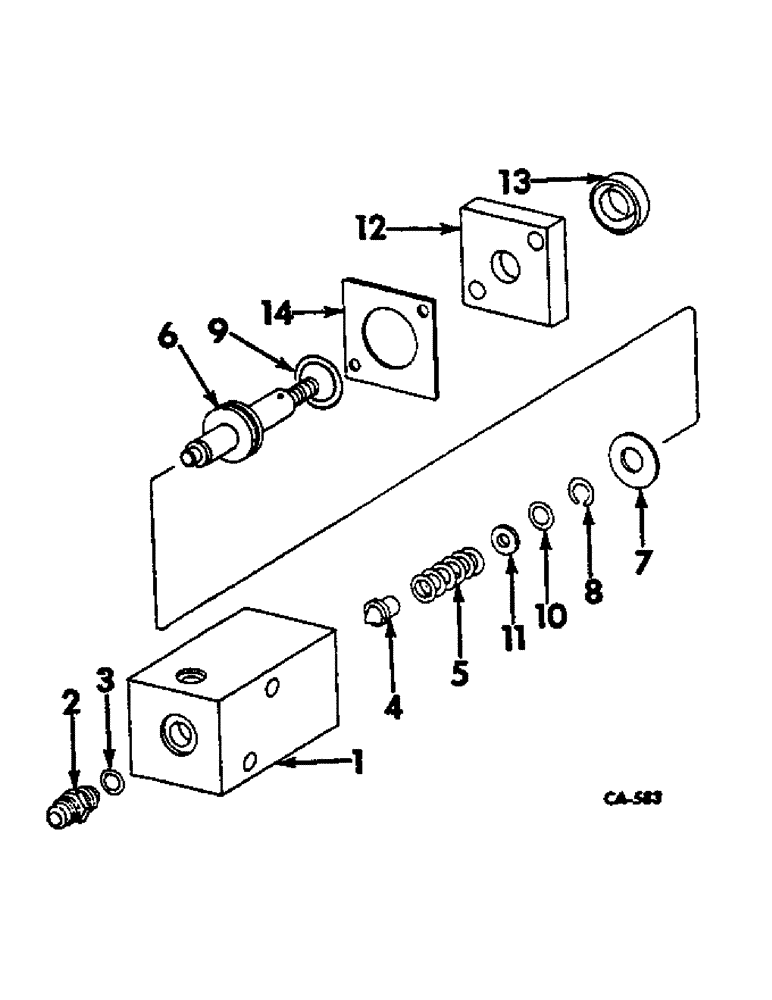

Запчасти Case IH 1026 (07-33) - DRIVE TRAIN, FOOT-N-INCH VALVE (04) - Drive Train

530331R91

LOCK VALVE

VALVE ASSY, foot-n- inch w/dash pot

1шт.

1

530563R1

HYDRAULIC VALVE

BODY, valve

1шт.

2

398709R1

SEAT

poppet valve

1шт.

4

398710R1

VALVE POPPET

VALVE, poppet

1шт.

5

530564R1

SPRING

valve

1шт.

6

530565R1

PISTON

ASSY, valve

1шт.

7

530568R1

SHIM

PLATE, piston check valve

1шт.

8

235529R1

SNAP RING,#50, Ext, Crescent

Ring, Snap, #50, Ext, Crescent

1шт.

9

530569R1

O-RING,0.93" ID x 0.106" Width

O-RING, class two

1шт.

10

530570R1

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

O-RING, class two

1шт.

11

530575R91

SHIM KIT

PACKAGE, relief valve shim service, consists of (4) shim 530571R1 (NSS), (4) shim 530572R1 (NSS), (2) shim 530573R1 (NSS), (1) shim 530574R1 (NSS)

1шт.

12

530576R1

GUIDE, valve spring stop

1шт.

531068R1

O-RING,0.494" ID x 0.073" Width

O-RING, piston valve guide

1шт.

897365R1

BOLT,Hex, 1/4" - 20 x 7/8", Gr 8

SCREW, 1/4-20 x 7/8 hex-hd cap

2шт.

13

531069R91

OIL SEAL

SEAL, oil, will work for 529443R91

1шт.

14

530567R1

GASKET

valve body

1шт.

3

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

3/8 x 1/2 x 1/16

1шт.
