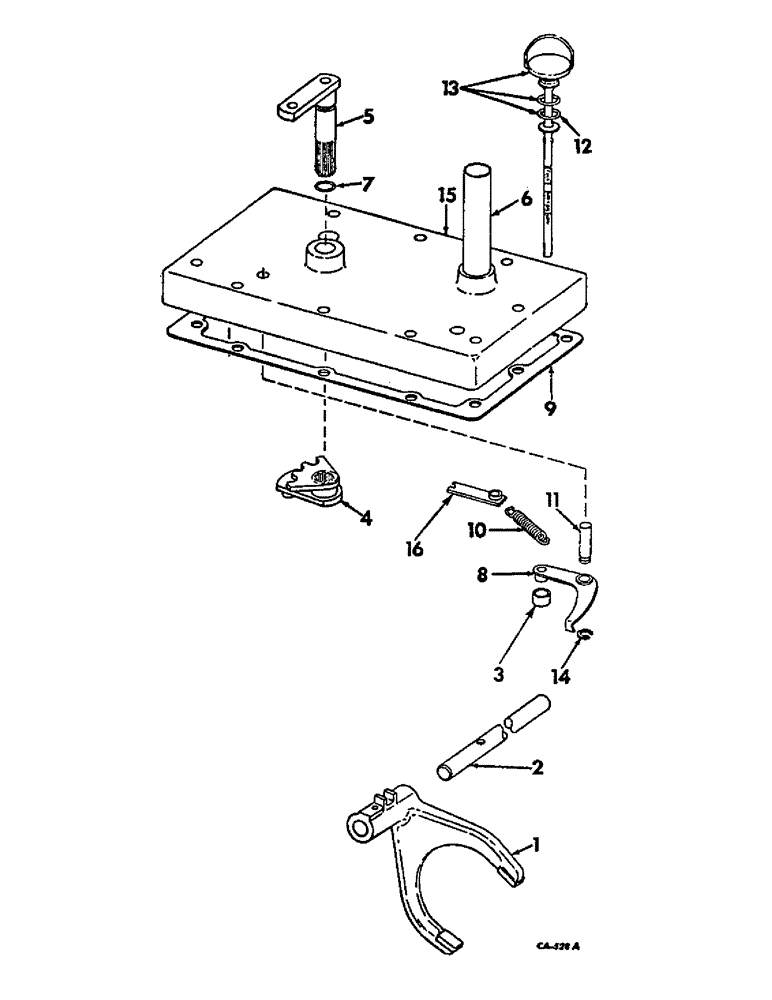

Запчасти Case IH 1026 (07-27) - DRIVE TRAIN, GEAR SHIFT MECHANISM, RANGE TRANSMISSION (04) - Drive Train

1

398279R1

FORK

hi-lo shift

1шт.

2

398280R1

PIN

hi-lo shift fork

1шт.

20648R1

BOLT,5/16" x 7/8", Gr 8

SCREW, 5/16-18 x 7/8 hex-hd cap type 4

1шт.

538399R1

STOP

PLATE, lock

1шт.

3

380115R2

ROLLER

detent

1шт.

4

398285R2

ARM

ASSY, hi-lo operating

1шт.

591184R1

PIN,3/16" x 1 1/4", Coiled

1шт.

5

528010R1

SHAFT

ASSY, hi-lo shift

1шт.

615168R1

WASHER

25/32 x 1-1/2 x 11 ga

1шт.

6

531130R1

GUIDE, oil level gauge, replaces 386450R1

1шт.

7

128359

O-RING,0.07" Thk x 0.614" ID, -16, Cl 5, 75 Duro

9/16 x 3/4 x 1/16, hi-lo shift shaft

1шт.

8

398300R1

ARM

ASSY, shift control

1шт.

9

380315R1

GASKET

rear frame front cover

1шт.

10

398304R1

SPRING

shift control arm

1шт.

11

398299R1

PIN

shift control pivot

1шт.

382563R1

PIN

spring anchor

1шт.

12

350684R1

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

3/4 x 1 x 1/8

2шт.

13

531067R92

NO LONGER SERVICED

GAUGE ASSY, oil level

1шт.

14

370290R1

SNAP RING,#50, .392" Dia, E-Type

Ring, Retaining, , shift control arm pivot pin #50, .392" Dia, E-Type

1шт.

15

406580R91

COVER ASSY, rear frame front

1шт.

19962R1

DOWEL,3/8" x 3/4"

PIN, 3/8 x 3/4 dowel

2шт.

179847

BOLT,Hex, 3/8" - 16 x 2", Gr 5

10шт.

16

406160R1

LARGE PLATE

PLATE ASSY, roller retainer

1шт.
