Запчасти Case IH 1026 (07-18) - DRIVE TRAIN, DIFFERENTIAL (04) - Drive Train

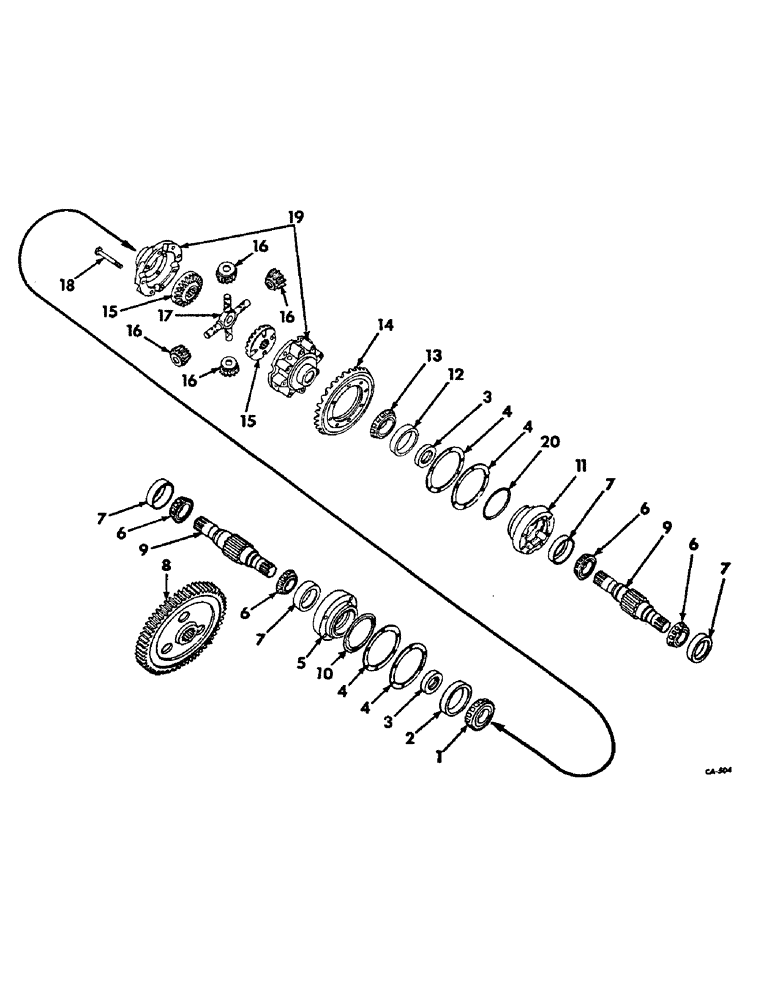

Схема запчастей Case IH 1026 - (07-18) - DRIVE TRAIN, DIFFERENTIAL (04) - Drive Train
16
4
9
15
14
11
6
5
9
7
6
13
18
15
7
4
16
4
19
7
1
3
17
4
6
8
7
20
16
2
6
12
10
3
16

Артикул

Название

Примечание

Количество

1

ST2129

BEARING ASSY,77.79mm ID x 23.01mm W

differential roller LH cone

1шт.

2

ST988

BEARING CUP,121.44mm OD x 17.46mm W

BEARING, differential roller LH cup

1шт.

3

380200R91

SEAL

differential roller brg retainer oil

2шт.

4

380202R1

SHIM

differential roller brg retainer .007

2шт.

4

380203R1

SHIM

differential roller brg retainer .012, (or as required)

4шт.

4

380204R1

SHIM

differential roller brg retainer .030

1шт.

4

380205R1

SHIM

differential roller brg retainer .004

1шт.

4

385155R1

SHIM

differential roller brg retainer .003

1шт.

5

406023R1

RETAINER

differential brg LH

1шт.

179885

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

6шт.

6

ST2007A

TAPERED BEARING,2.625" ID x 4.4375" OD x 1.1875"

BEARING ASSY, bull pinion & brake shaft cone

4шт.

7

13363D

TAPERED BEARING

BEARING, bull pinion and brake shaft cup

4шт.

8

384075R1

GEAR

bull, 73T

2шт.

9

400864R1

SHAFT

bull pinion & brake, 13 T

2шт.

9

401276R1

SHAFT

bull pinion & brake, Farmall hi-clear tractors

2шт.

10

406041R1

BAFFLE

LH differential brg oil

1шт.

11

400900R1

RETAINER

differential roller brg RH, replaces 406022R1

1шт.

179885

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

6шт.

12

ST990

TAPERED BEARING,3.0625" ID x 4.625" OD x 1"

BEARING, differential roller RH cup

1шт.

13

ST2133

BEARING ASSY,3.0625" ID x 4.625" OD x 1"

BEARING, differential roller RH cone

1шт.

14

395828R91

SET

BEVEL GEARS, matched set, consists of (1) gear 388916R1 (NSS), (1) shaft 395013R1 (NSS)

1шт.

14

380132R1

GEAR

drive bevel, 49 T, Farmall hi-clear tractors

1шт.

15

380190R1

GEAR

differential bevel, 28 T

2шт.

16

361061R1

GEAR

PINION, differential bevel, 15 T

4шт.

17

393637R2

DIFF. SPIDER

SPIDER, differential

1шт.

18

55972DA

BOLT,1/2" - 20 x 4 1/2"

differential case

12шт.

381368R1

NUT,Hex, 1/2" - 20, Gr 8

differential case bolt

12шт.

19

406019R1

CASE ASSY, differential, composed of (12) bolt 55972DA, (1) case 380189R1 (NSS), (1) case 406020R1 (NSS), (1) gear 406021R1, (12) nut 381368R1

1шт.

19

528665R1

CASE ASSY, differential, Farmall hi-clear tractors, composed of (12) bolt 55972DA, (1) case 380189R1 (NSS), (1) case 406020R1 (NSS), (1) gear 528666R1, (12) nut 381368R1

1шт.

Выбрано товаров: 29
